Audio Unit Audio Without Navigation

POWER SUPPLY AND GROUND CIRCUIT:_:AUDIO UNIT





Diagnosis Procedure
1.CHECK FUSE

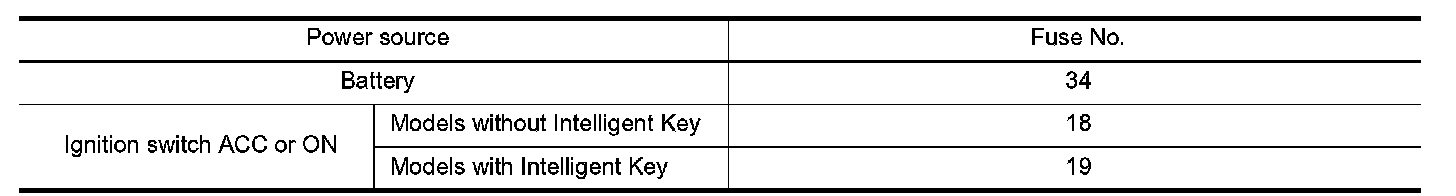

Check that the following fuses of the audio unit are not blown.





Is inspection result OK?
YES - GO TO 2.
NO - If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse.
2.CHECK AUDIO UNIT POWER SUPPLY CIRCUIT

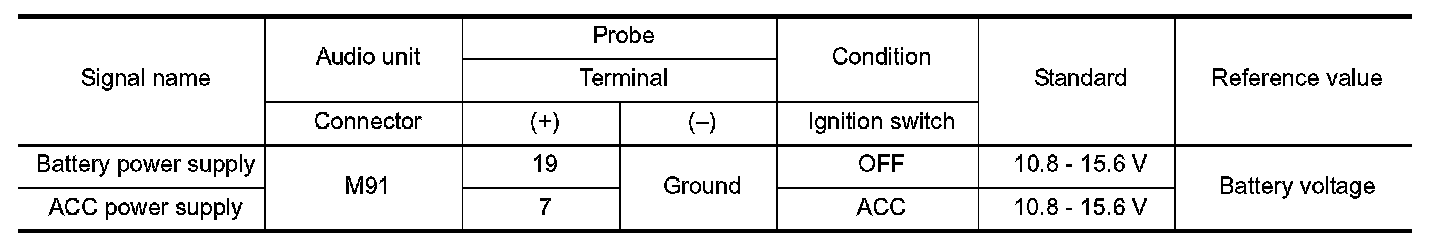

Check voltage between the audio unit and ground.





Is inspection result OK?
YES - INSPECTION END
NO - Check harness between audio unit and fuse.
