Radio/Stereo: Testing and Inspection





SATELLITE RADIO TUNER


Reference Value

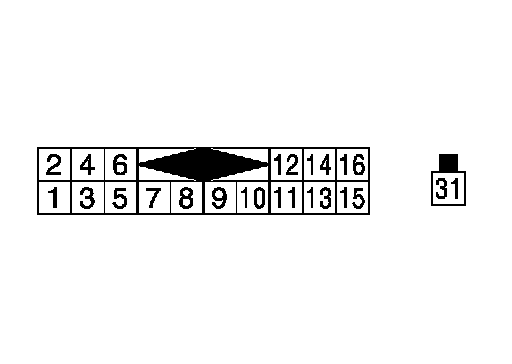

TERMINAL LAYOUT

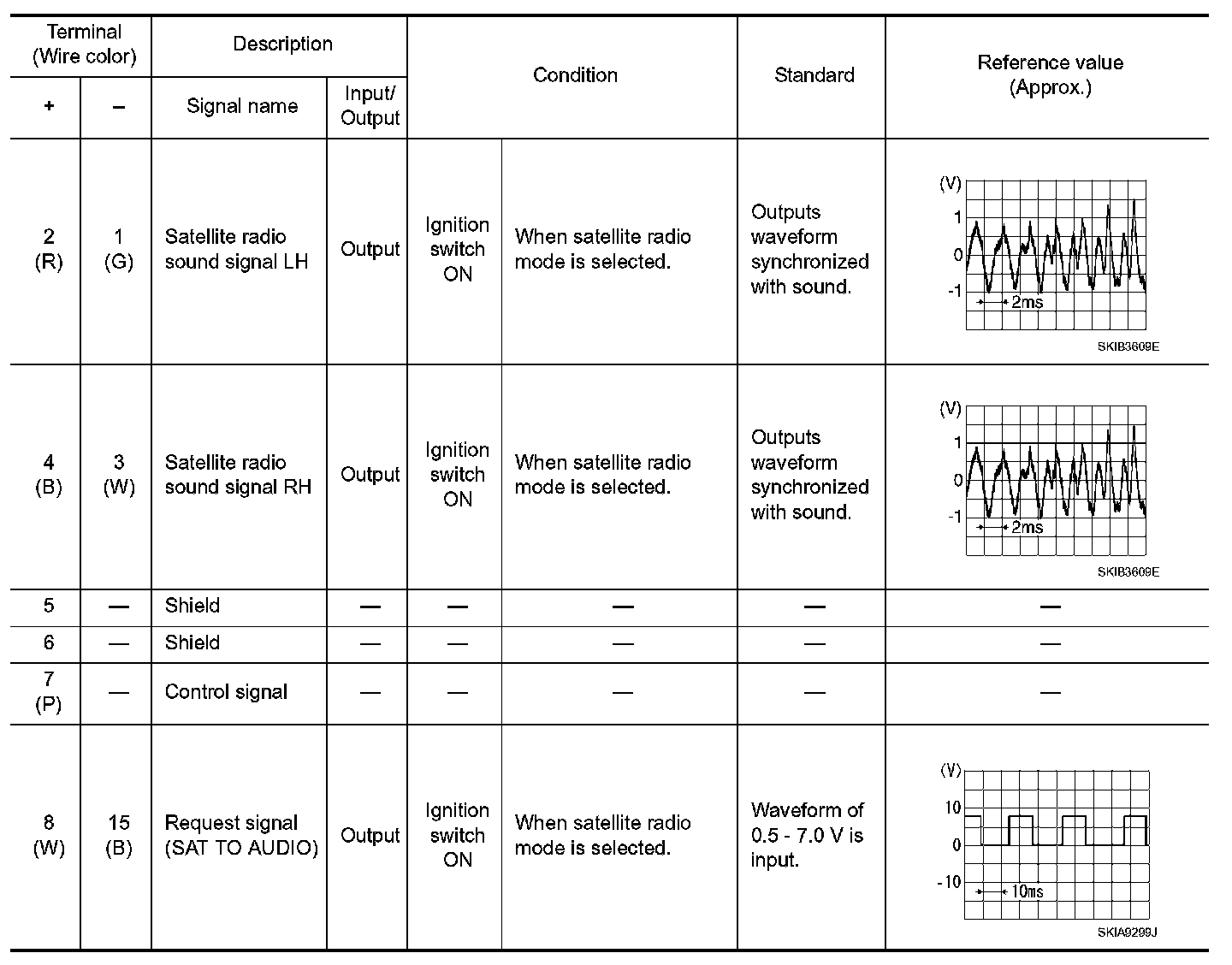

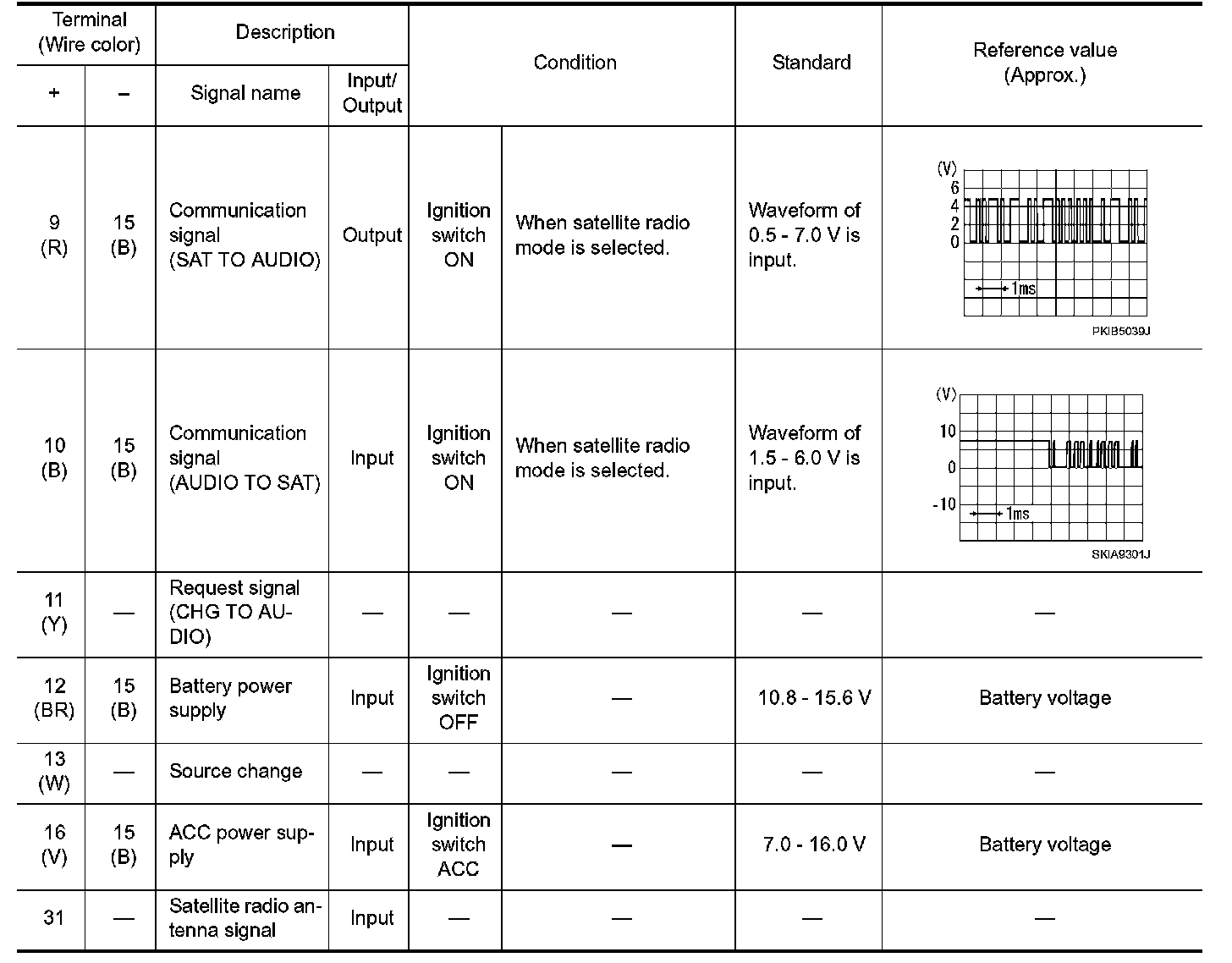

PHYSICAL VALUES
