Reading and Clearing Diagnostic Trouble Codes

DIAGNOSIS SYSTEM (NAVI CONTROL UNIT)


On Board Diagnosis Function

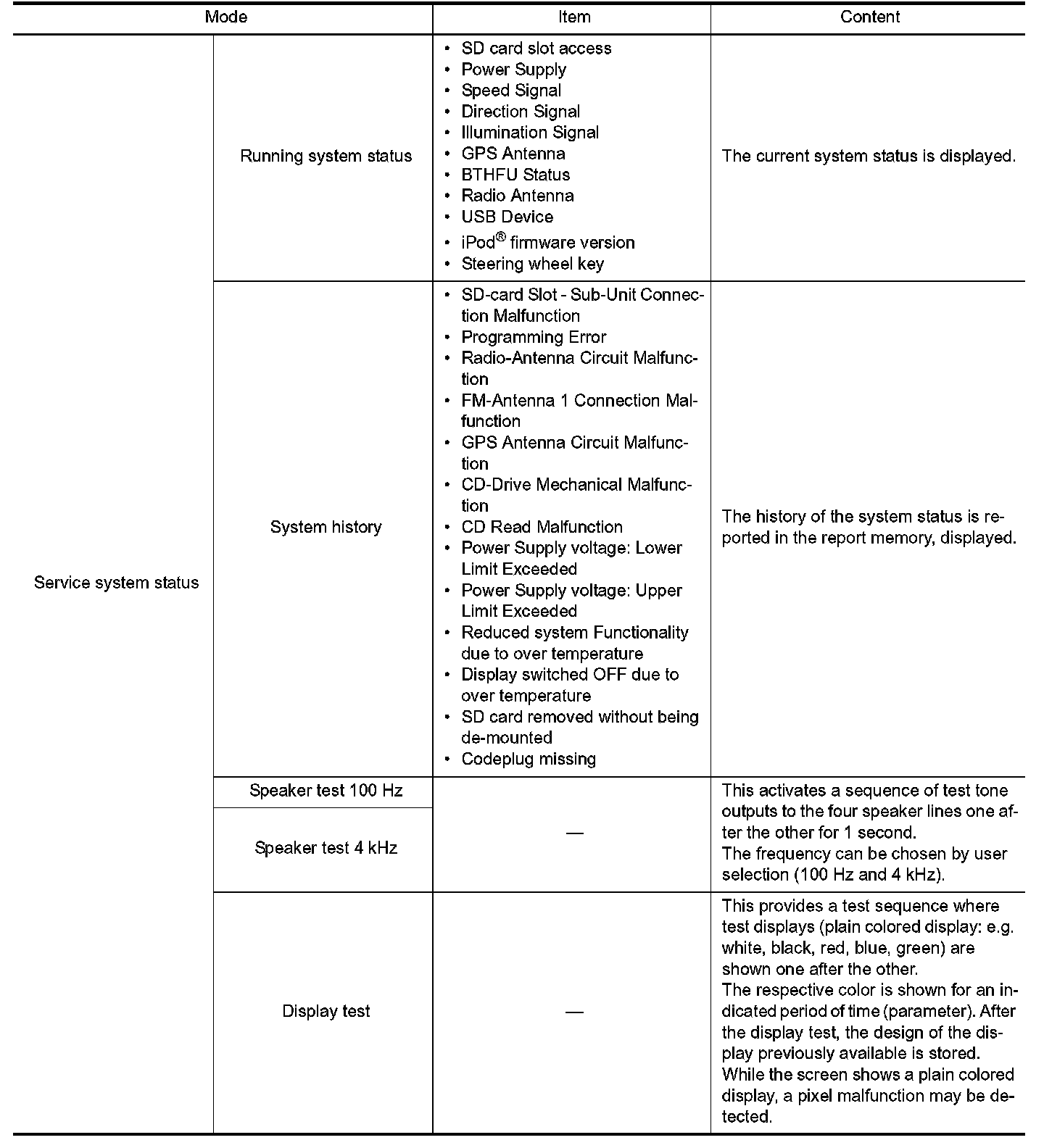

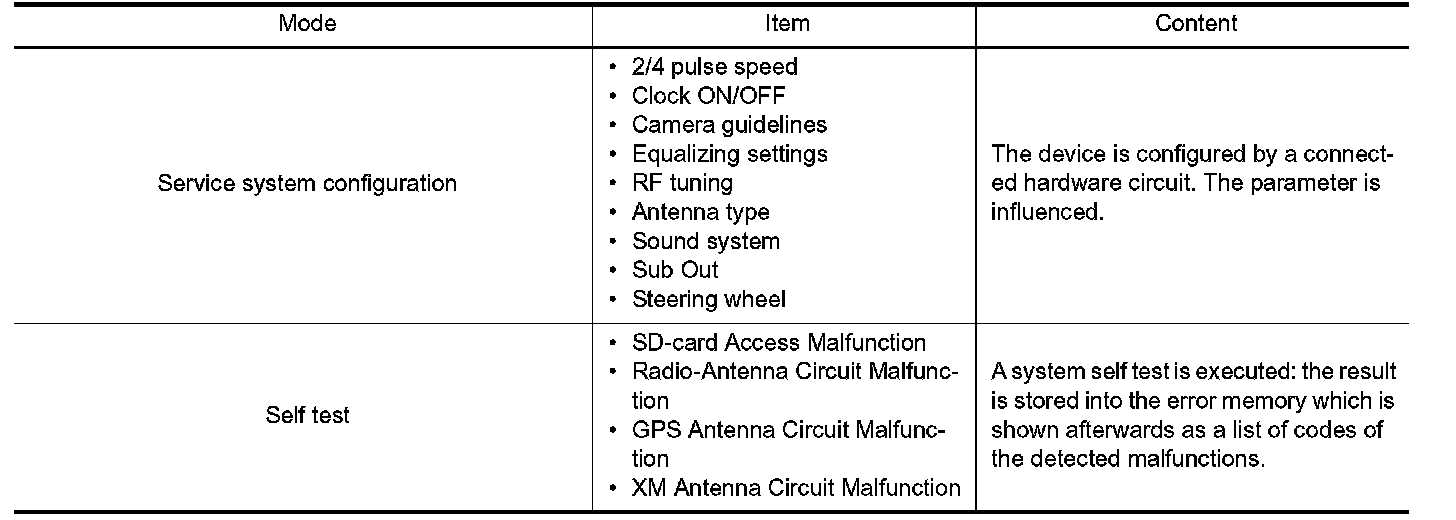

On-Board Diagnosis Item

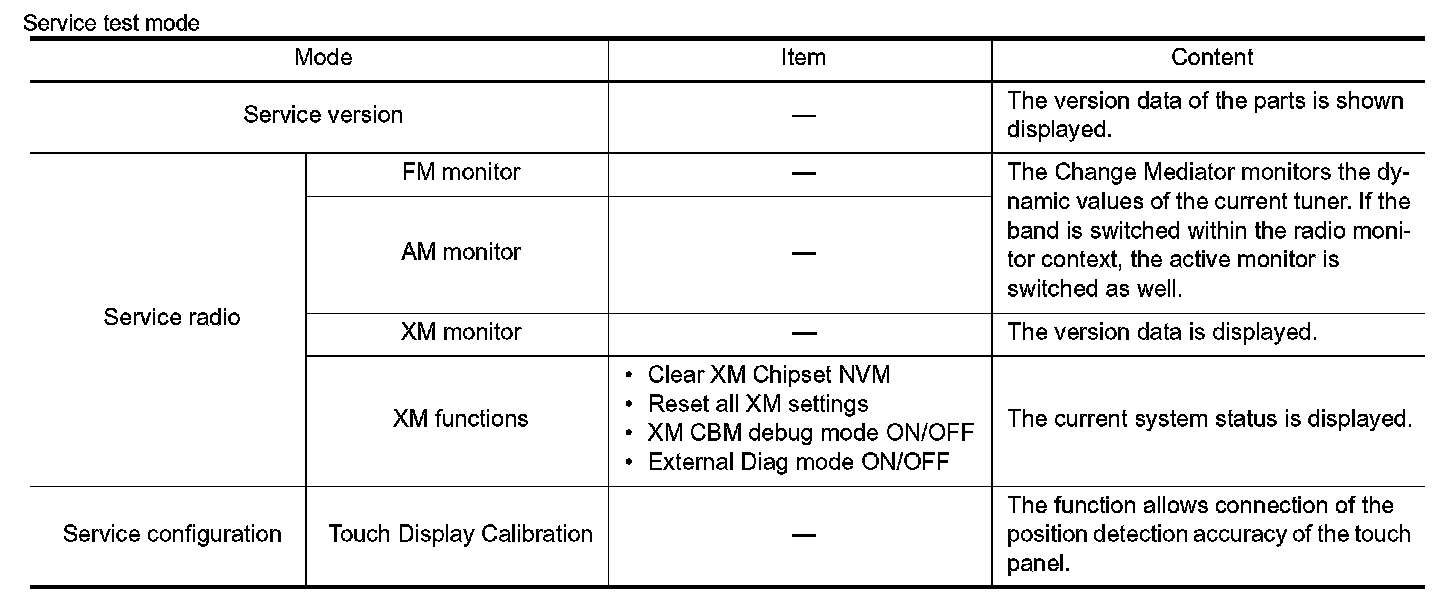

- On-board diagnosis is performed in service test mode.
- On-board diagnosis checks if the system operates normally.
















METHOD OF STARTING
1. Start the engine.





2. Turn OFF audio.

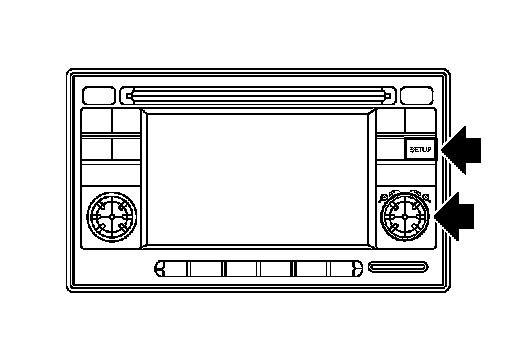

3. While pressing the "SET UP" switch, turn the MENU dial counter clockwise 3 clicks or more first, then clockwise and counter clockwise 3 clicks or more, respectively. (After the diagnosis mode starts, the initial screen of the diagnosis mode appears.)

END ON-BOARD DIAGNOSIS
Turn OFF ignition switch.
