Television / Monitor: Testing and Inspection

DIAGNOSIS SYSTEM (MULTI DISPLAY UNIT)


CONSULT-III Function

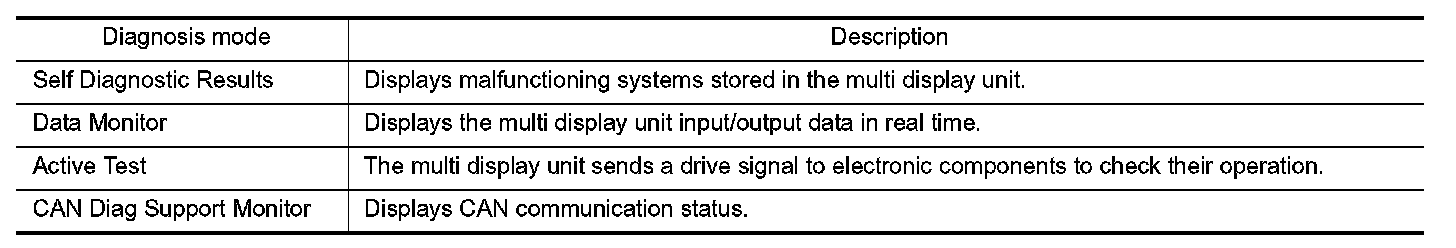

APPLICATION ITEM
CONSULT-III performs the following functions via CAN communication with multi display unit.






SELF DIAGNOSTIC RESULT
Testing and Inspection.

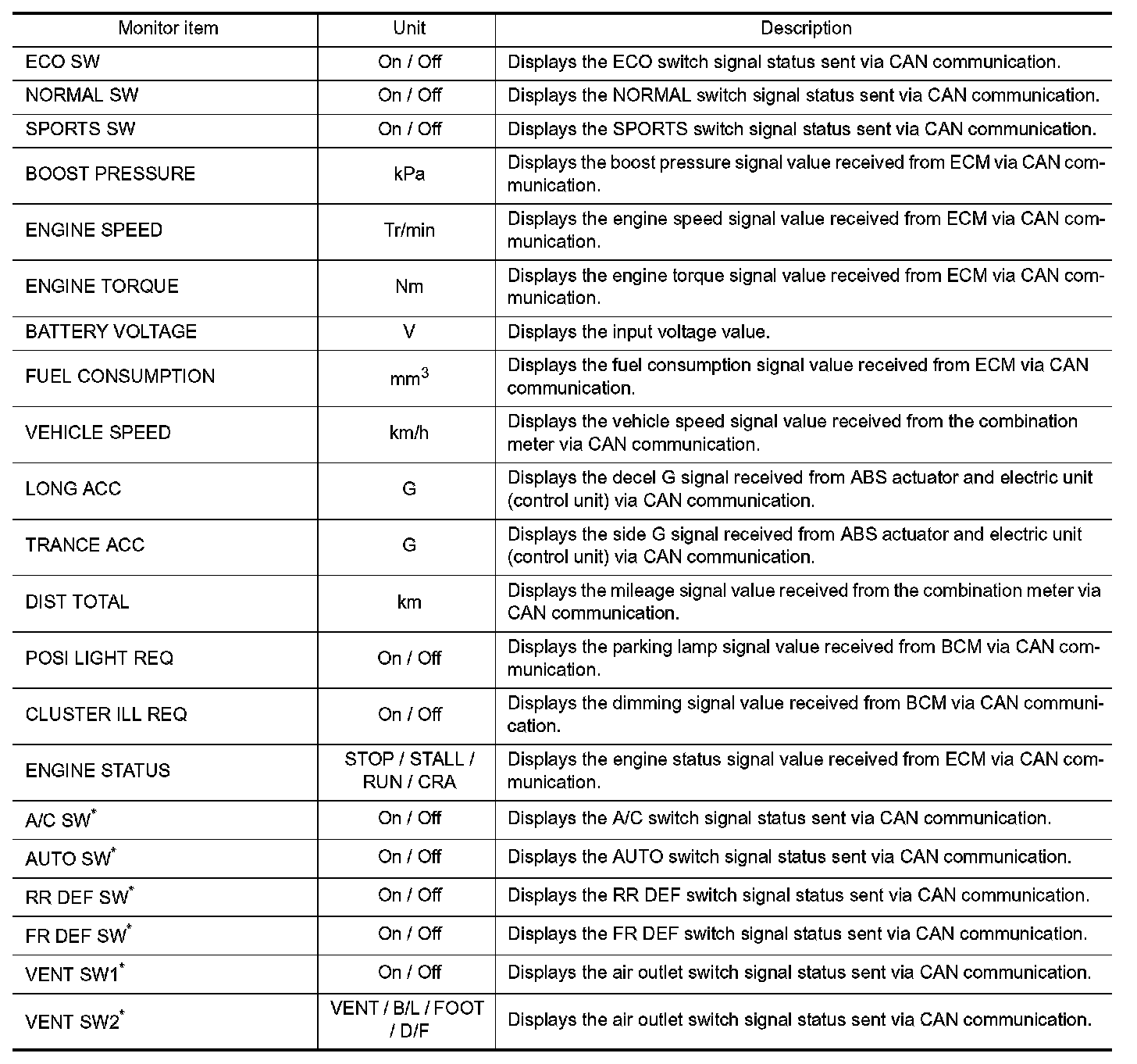

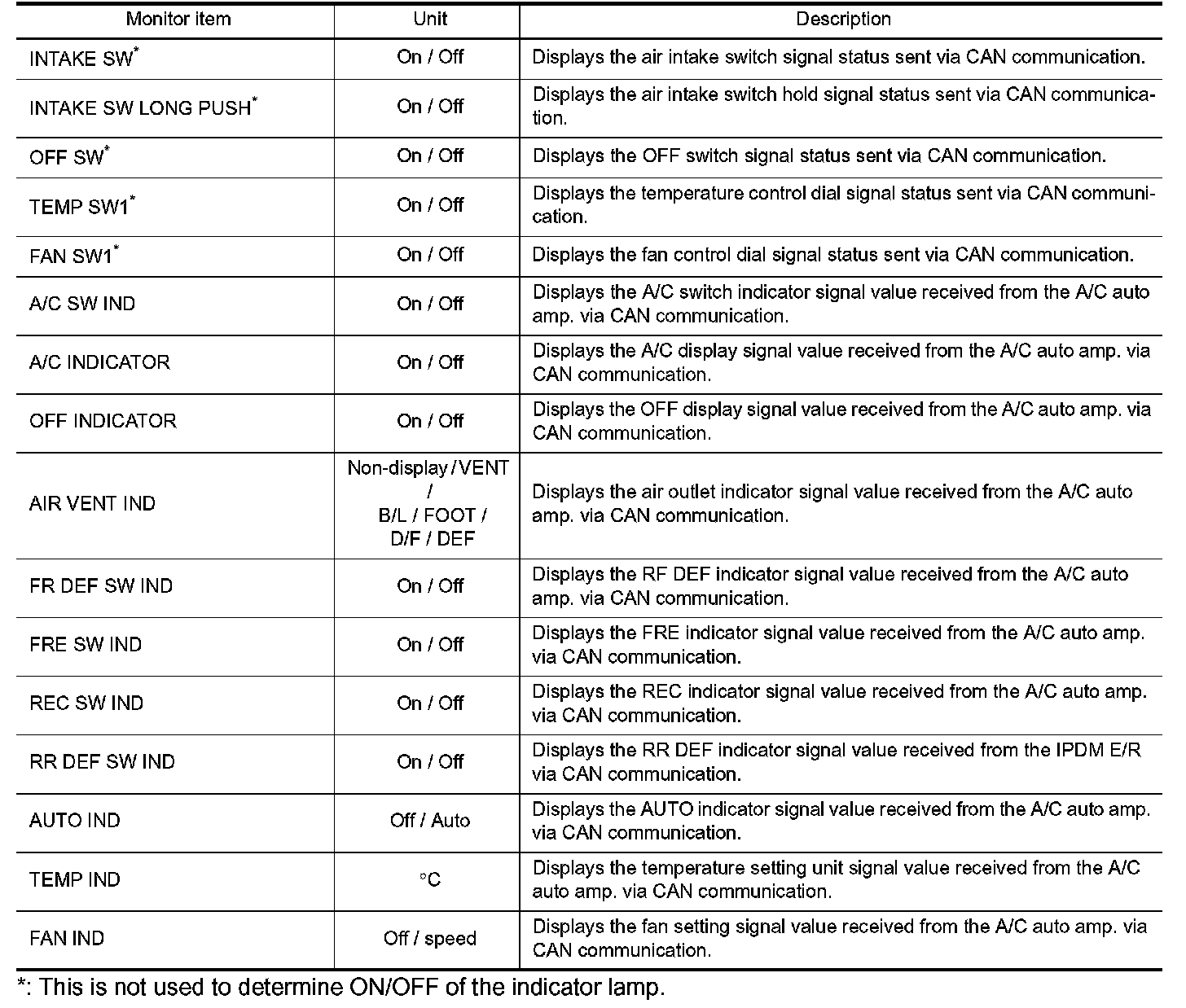

DATA MONITOR

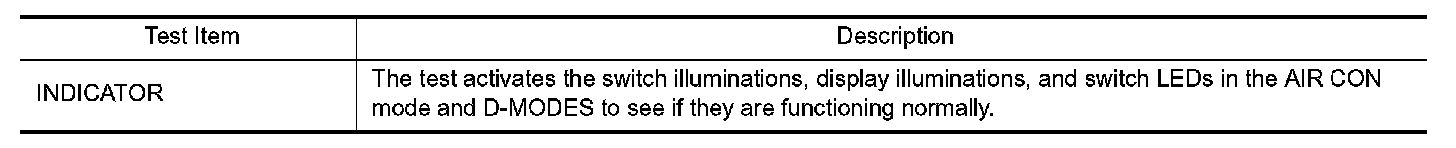

ACTIVE TEST

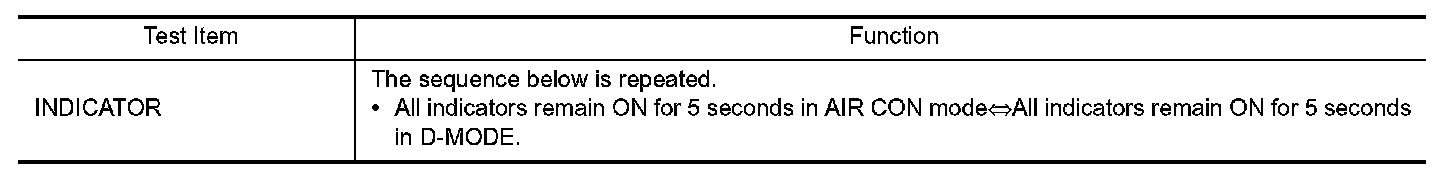

Indicator
