Tel Adapter Unit Audio Without Navigation





TEL ADAPTER UNIT


Reference Value

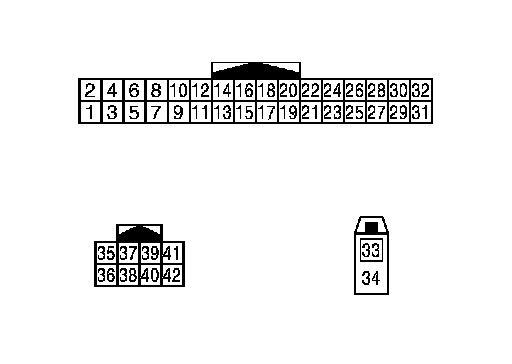

TERMINAL LAYOUT

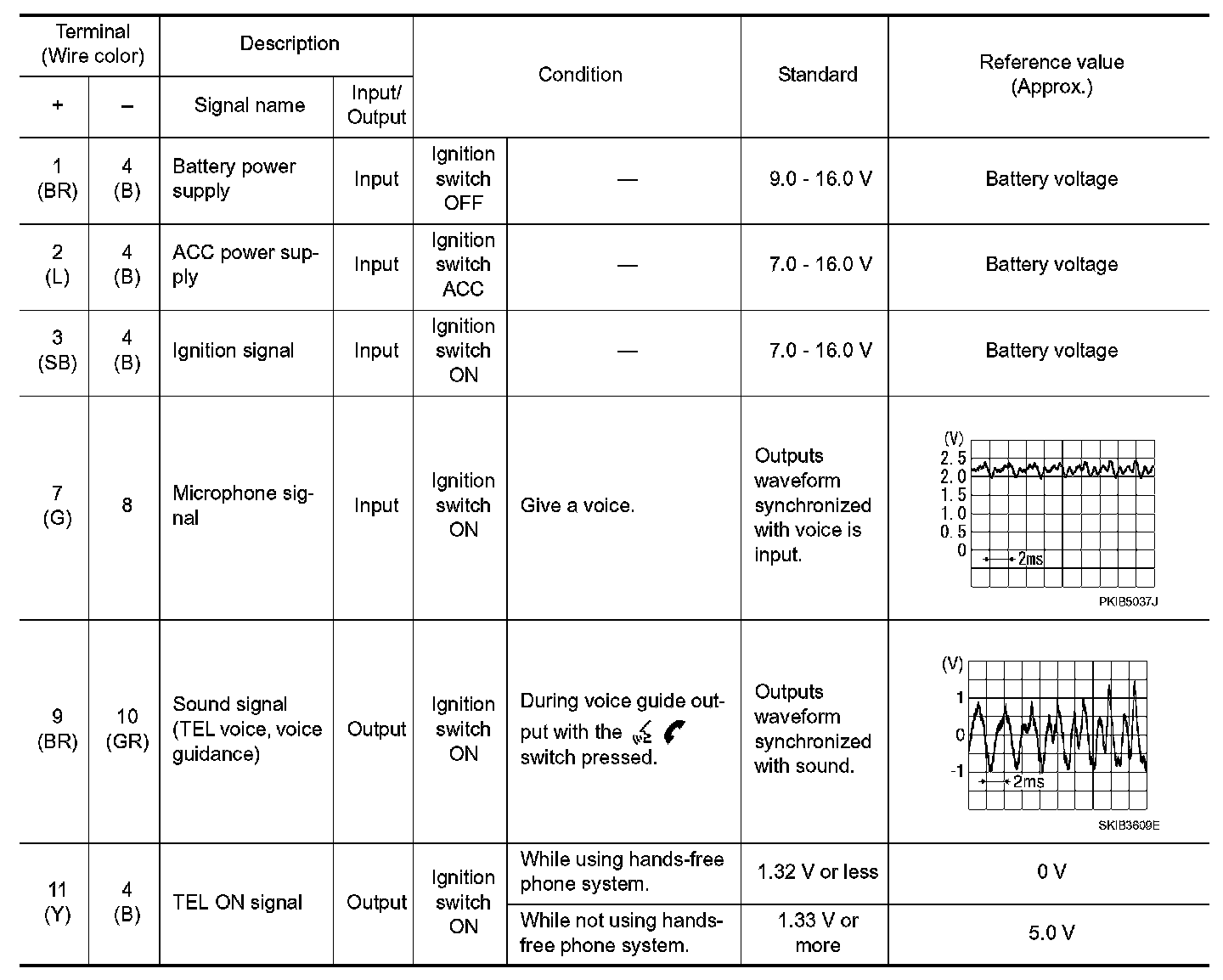

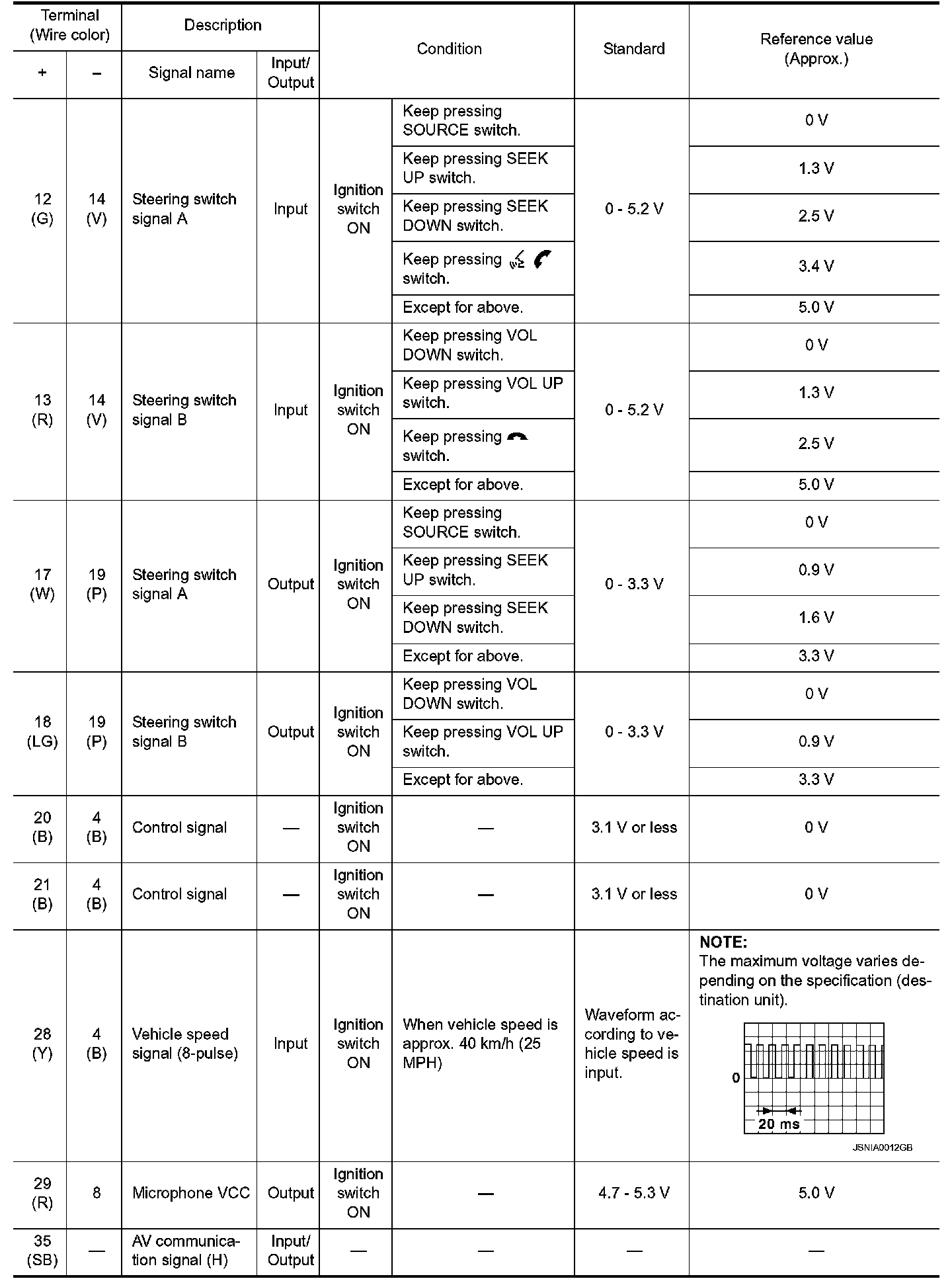

PHYSICAL VALUES
