With Intelligent Key System

HEADLAMP FUNCTION





Component Function Check
1.CHECK FUNCTION

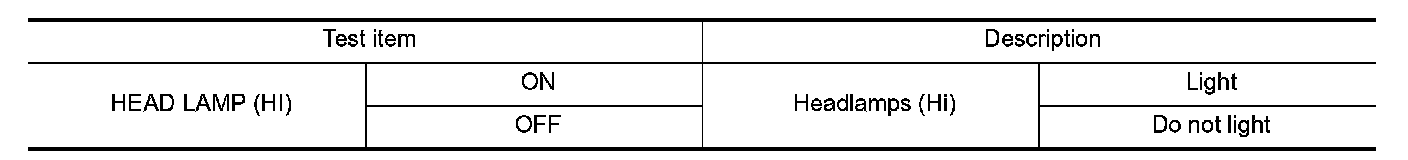

1. Perform "HEAD LAMP(HI)" in "ACTIVE TEST" mode of "THEFT ALM" of "BCM" using CONSULT-III.
2. Check headlamps operation.






Is the inspection result normal?
YES - INSPECTION END
NO - SEE Diagnosis Procedure.




Diagnosis Procedure
1.CHECK HEADLAMP FUNCTION
Headlamp (HI) Circuit.
Is the inspection result normal?
YES - GO TO 2.
NO - Repair or replace the malfunctioning parts.
2.CHECK INTERMITTENT INCIDENT
Intermittent Incident.
- INSPECTION END
