Shift P Warning Lamp

SHIFT P WARNING LAMP





Component Function Check
1.CHECK FUNCTION
1. Select "INTELLIGENT KEY" of "BCM" using CONSULT-III.
2. Select "LCD" in "ACTIVE TEST" mode.

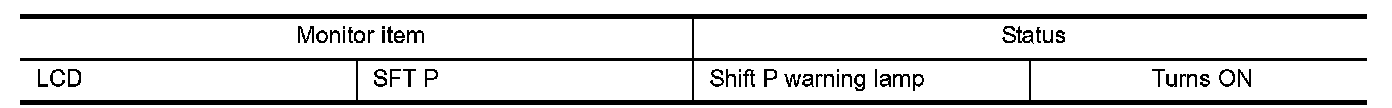

3. Check that the function operates normally according to the following conditions.





Is the inspection result normal?
YES - Shift P warning lamp is OK.
NO - SEE Diagnosis Procedure.




Diagnosis Procedure
1.CHECK SHIFT P WARNING LAMP
Reading and Clearing Diagnostic Trouble Codes.
Is the inspection result normal?
YES - GO TO 2.
NO - Repair or replace the malfunctioning parts.
2.CHECK INTERMITTENT INCIDENT
Intermittent Incident.
- INSPECTION END
