Juke FWD L4-1.6L Turbo (MR16DDT)
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Related Tests, Information and Procedures
>>
ABS Actuator And Electric Unit (Control Unit)
ABS Actuator And Electric Unit (Control Unit)
ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

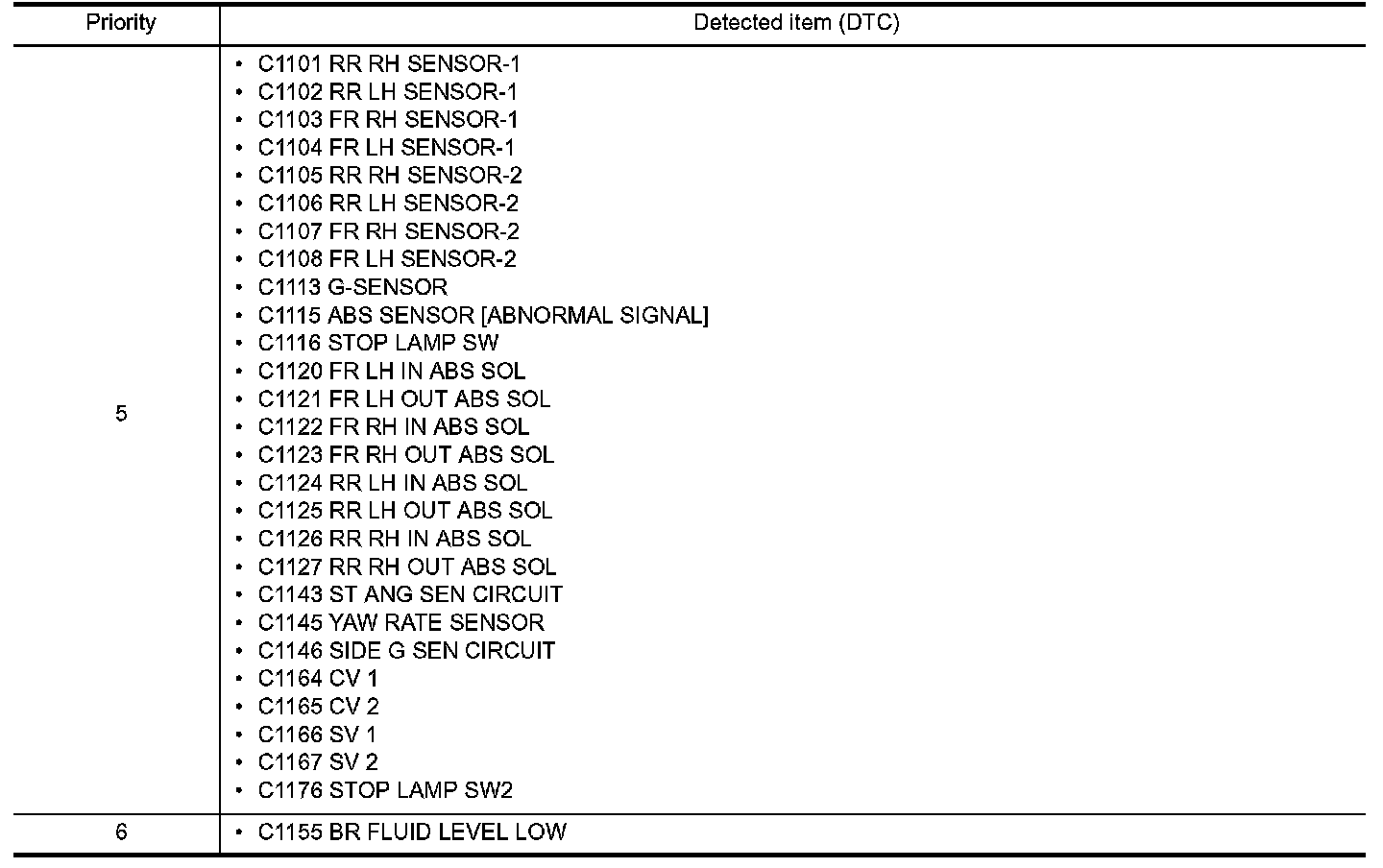

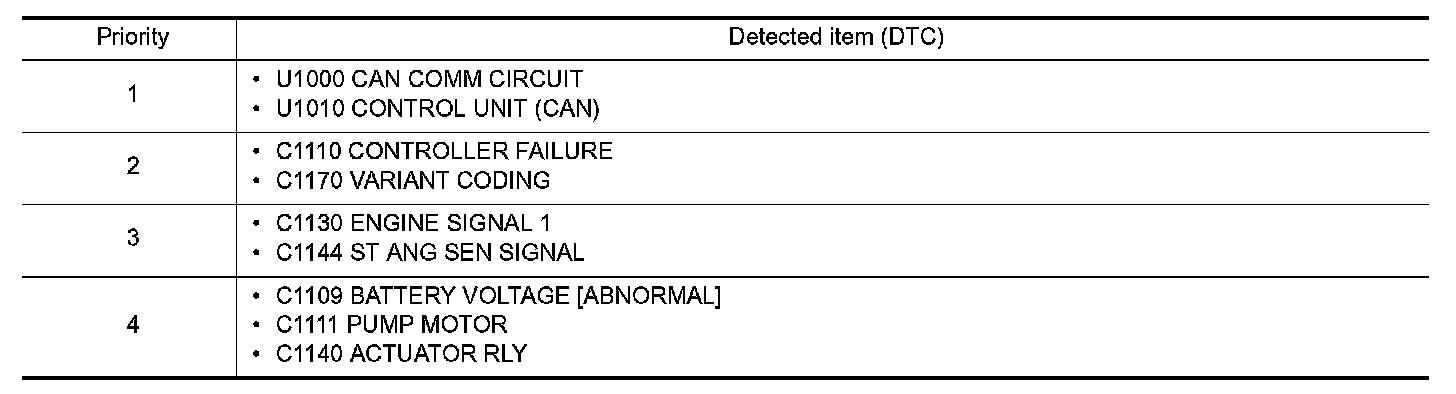

DTC Inspection Priority Chart
When multiple DTCs are displayed simultaneously, check one by one depending on the following priority list.
