P183F

P183F GEAR POSITION SIGNAL





DTC Logic

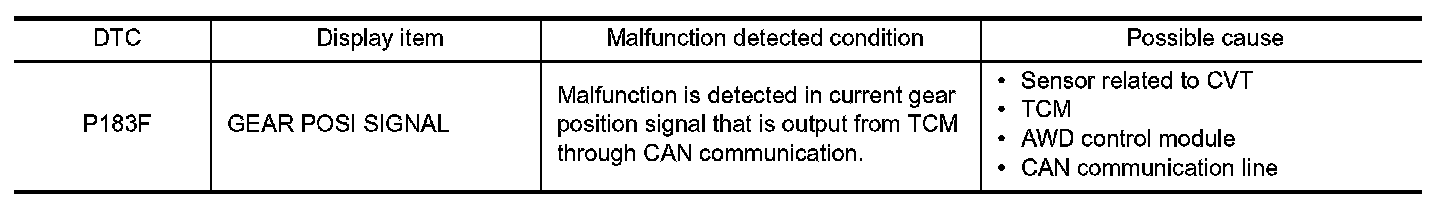

DTC DETECTION LOGIC






DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
If "DTC CONFIRMATION PROCEDURE" has been previously conducted, always turn ignition switch OFF and wait at least 10 seconds before conducting the next test.
- GO TO 2.
2.PERFORM DTC CONFIRMATION
With CONSULT-III
1. Start the engine.

CAUTION:
Never drive the vehicle.
2. Perform self-diagnosis for "ALL MODE AWD/4WD".
Is DTC "P183F" detected?
YES - Proceed to SEE Diagnosis Procedure.
NO - INSPECTION END




Diagnosis Procedure
1.PERFORM TCM SELF-DIAGNOSIS
With CONSULT-III
Perform self-diagnosis for "TRANSMISSION".
Is any DTC detected?
YES - Perform trouble diagnosis for detected DTC. Testing and Inspection.
NO - GO TO 2.
2.CHECK TERMINALS AND HARNESS CONNECTORS
Check AWD control module pin terminals for damage or loose connection with harness connector.
Is inspection result normal?
YES - After turning the ignition switch OFF, perform DTC confirmation procedure again. If DTC "P183F" is detected, Replace AWD control module. .
NO - Repair or replace error-detected parts.
