P1723

P1723 SPEED SENSOR





Description
The secondary speed sensor detects the revolution of parking gear and generates a pulse signal. The pulse signal is sent to the TCM, which converts it into vehicle speed.
The primary speed sensor detects the primary pulley revolution speed and sends a signal to the TCM.




DTC Logic

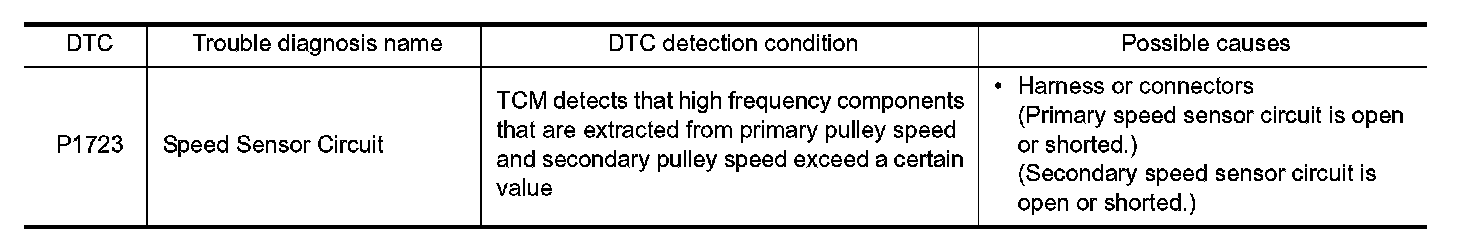

DTC DETECTION LOGIC

CAUTION:
One of the "P0715", or the "P0720" is displayed with the DTC at the same time.






DTC CONFIRMATION PROCEDURE

CAUTION:
Always drive vehicle at a safe speed.
1.PREPARATION BEFORE WORK
If another "DTC CONFIRMATION PROCEDURE" occurs just before, turn ignition switch OFF and wait for at least 10 seconds, then perform the next test.
- GO TO 2.
2.CHECK DTC DETECTION
With CONSULT-III
1. Start the engine.
2. Select "Data Monitor" in "TRANSMISSION".
3. Select "RANGE" and "VEHICLE SPEED".
4. Drive the vehicle.

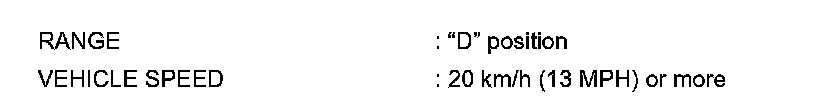

5. Maintain the following condition for 1 second or more.





6. Stop the vehicle.
7. Select "Self Diagnostic Results" in "TRANSMISSION".
Is "P1723" detected?
YES - Go to SEE Diagnosis Procedure.
NO - INSPECTION END




Diagnosis Procedure
1.CHECK SECONDARY SPEED SENSOR SYSTEM
Check secondary speed sensor system. P0720.
Is the inspection result normal?
YES - GO TO 2.
NO - Repair or replace damaged parts.
2.CHECK PRIMARY SPEED SENSOR SYSTEM
Check primary speed sensor system. P0715.
Is the inspection result normal?
YES - Check intermittent incident. Intermittent Incident.
NO - Repair or replace damaged parts.
