Security System With Intelligent Key System

P1611 ID DISCORD, IMMU-ECM





DTC Logic

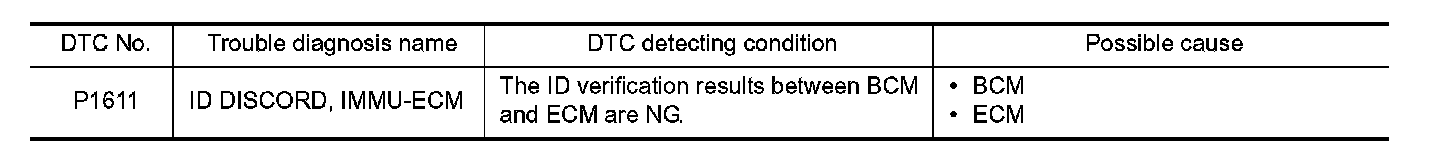

DTC DETECTION LOGIC






DTC CONFIRMATION PROCEDURE
1.PERFORM DTC CONFIRMATION PROCEDURE
1. Turn ignition switch ON.
2. Check DTC in "Self Diagnostic Result" mode of "ENGINE" using CONSULT-III.
Is DTC detected?
YES - Go to SEE Diagnosis Procedure.
NO - INSPECTION END




Diagnosis Procedure
1.PERFORM INITIALIZATION
Perform initialization of BCM and registration of all Intelligent Keys using CONSULT-III.
For initialization and registration procedures, refer to CONSULT-III Operation Manual NATS-IVIS/NVIS.
Can the system be initialized and can the engine be started with registered Intelligent Key?
YES - INSPECTION END
NO - GO TO 2.
2.CHECK SELF DIAGNOSTIC RESULT
1. Select "Self Diagnostic Result" mode of "ENGINE" using CONSULT-III.
2. Erase DTC.
3. Perform DTC CONFIRMATION PROCEDURE for DTC P1611. SEE DTC Logic.
Is DTC detected?
YES - GO TO 3.
NO - INSPECTION END
3.REPLACE BCM
1. Replace BCM. Removal And Installation With Intelligent Key System.
2. Perform initialization of BCM and registration of all Intelligent Keys using CONSULT-III.
For initialization and registration procedures, refer to CONSULT-III Operation Manual NATS-IVIS/NVIS.
Can the system be initialized and can the engine be started with registered Intelligent Key?
YES - INSPECTION END
NO - GO TO 4.
4.REPLACE ECM
Replace ECM. Service and Repair.
- INSPECTION END
