P0461

P0461 FUEL LEVEL SENSOR





DTC Logic

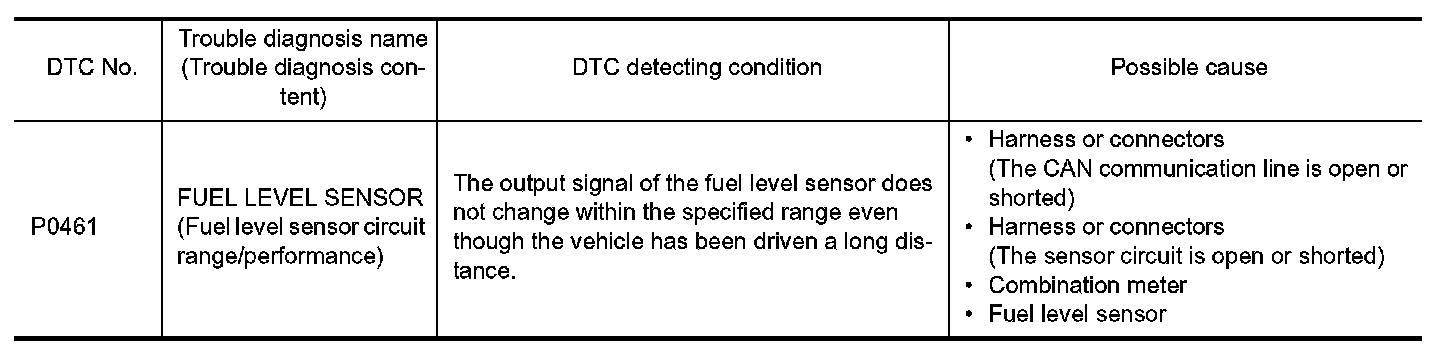

DTC DETECTION LOGIC

NOTE:
- If DTC P0461 is displayed with DTC UXXXX, first perform the trouble diagnosis for DTC UXXXX.
- If DTC P0461 is displayed with DTC P0607, first perform the trouble diagnosis for DTC P0607. P0607.
Driving long distances naturally affect fuel gauge level.
This diagnosis detects the fuel gauge malfunction of the gauge not moving even after a long distance has been driven.






DTC CONFIRMATION PROCEDURE
1.PERFORM COMPONENT FUNCTION CHECK
Perform component function check. SEE Component Function Check.
Use component function check to check the overall function of the fuel level sensor function. During this check, a 1st trip DTC might not be confirmed.
Is the inspection result normal?
YES - INSPECTION END
NO - Proceed to SEE Diagnosis Procedure.




Component Function Check
1.PRECONDITIONING

WARNING:
When performing following procedure, be sure to observe the handling of the fuel. On Board Diagnostic (OBD) System Of Engine And CVT General Precautions, "General Precautions".
TESTING CONDITION:
Before starting component function check, preparation of draining fuel and refilling fuel is required.
Do you have CONSULT-III?
YES - GO TO 2.
NO - GO TO 3.
2.PERFORM COMPONENT FUNCTION CHECK
With CONSULT-III

NOTE:
Start from step 10, if it is possible to confirm that the fuel cannot be drained by 30 l (7-7/8 US gal, 6-5/8 Imp gal) in advance.
1. Prepare a fuel container and a spare hose.
2. Release fuel pressure from fuel line, Testing and Inspection.
3. Remove the fuel feed hose on the fuel level sensor unit.
4. Connect a spare fuel hose where the fuel feed hose was removed.
5. Turn ignition switch OFF and wait at least 10 seconds then turn ON.
6. Select "FUEL LEVEL SE" in "DATA MONITOR" mode of "ENGINE" using CONSULT-III.
7. Check "FUEL LEVEL SE" output voltage and note it.
8. Select "FUEL PUMP RELAY" in "ACTIVE TEST" mode of "ENGINE" using CONSULT-III.
9. Touch "ON" and drain fuel approximately 30 l (7-7/8 US gal, 6-5/8 Imp gal) and stop it.
10. Check "FUEL LEVEL SE" output voltage and note it.
11. Fill fuel into the fuel tank for 30 l (7-7/8 US gal, 6-5/8 Imp gal).
12. Check "FUEL LEVEL SE" output voltage and note it.
13. Confirm whether the voltage changes more than 0.03 V during step 7 to 10 and 10 to 12.
Is the inspection result normal?
YES - INSPECTION END
NO - Proceed to SEE Diagnosis Procedure.
3.PERFORM COMPONENT FUNCTION CHECK
Without CONSULT-III

NOTE:
Start from step 8, if it is possible to confirm that the fuel cannot be drained by 30 l (7-7/8 US gal, 6-5/8
Imp gal) in advance.
1. Prepare a fuel container and a spare hose.
2. Release fuel pressure from fuel line. Testing and Inspection.
3. Remove the fuel feed hose on the fuel level sensor unit.
4. Connect a spare fuel hose where the fuel feed hose was removed.
5. Turn ignition switch ON.
6. Drain fuel by 30 l (7-7/8 US gal, 6-5/8 Imp gal) from the fuel tank using proper equipment.
7. Confirm that the fuel gauge indication varies.
8. Fill fuel into the fuel tank for 30 l (7-7/8 US gal, 6-5/8 Imp gal).
9. Confirm that the fuel gauge indication varies.
Is the inspection result normal?
YES - INSPECTION END
NO - Proceed to SEE Diagnosis Procedure.




Diagnosis Procedure
1.CHECK COMBINATION METER FUNCTION
Scan Tool Testing and Procedures.
Is the inspection result normal?
YES - Check intermittent incident. Intermittent Incident.
NO - Fuel Level Sensor Signal Circuit
