C1735

C1735 IGN CIRCUIT OPEN





DTC Logic

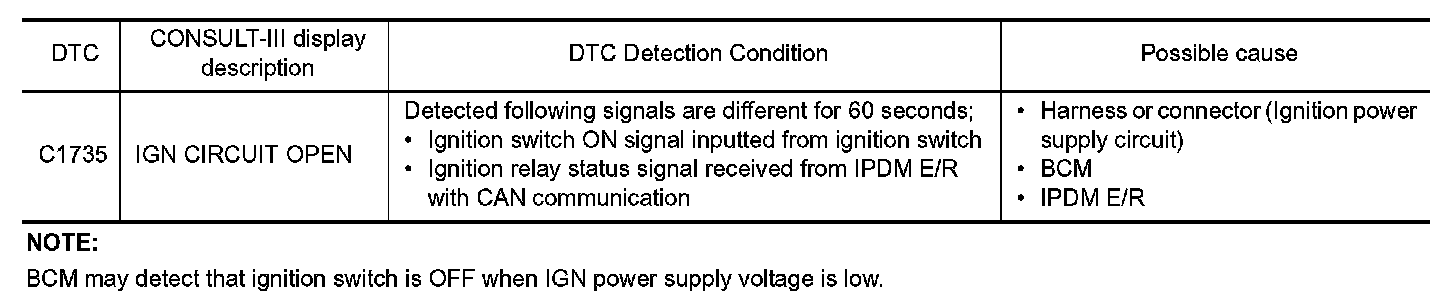

DTC DETECTION LOGIC






DTC CONFIRMATION PROCEDURE
1.DTC CONFIRMATION
1. Erase DTC.
2. Turn the ignition switch OFF.
3. Perform the "Self Diagnostic Result" of CONSULT-III, when passed 2 seconds or more after the ignition switch is turned ON.
Is any DTC detected?
YES - SEE Diagnosis Procedure.
NO - INSPECTION END




Diagnosis Procedure
1.CHECK BCM IGNITION POWER SUPPLY CIRCUIT
Check BCM ignition power supply circuit. Without Intelligent Key System.
Is the circuit normal?
YES - GO TO 2
NO - Repair the malfunctioning part.
2.CHECK IPDM E/R POWER SUPPLY CIRCUIT
Check IPDM E/R power supply circuit. IPDM E/R (Without I-Key).
Is the circuit normal?
YES - GO TO 3.
NO - Repair the malfunctioning part.
3.CHECK IPDM E/R IGNITION RELAY STATUS
CONSULT-III DATA MONITOR
1. Select "IGN RLY" of IPDM E/R data monitor item.
2. With operating the ignition switch, check the monitor status.





Is the item status normal?
YES - Replace BCM. Removal And Installation.
NO - Replace IPDM E/R. IPDM E/R (Without I-Key).
