B261F

B261F ASCD CLUTCH SWITCH





DTC Logic

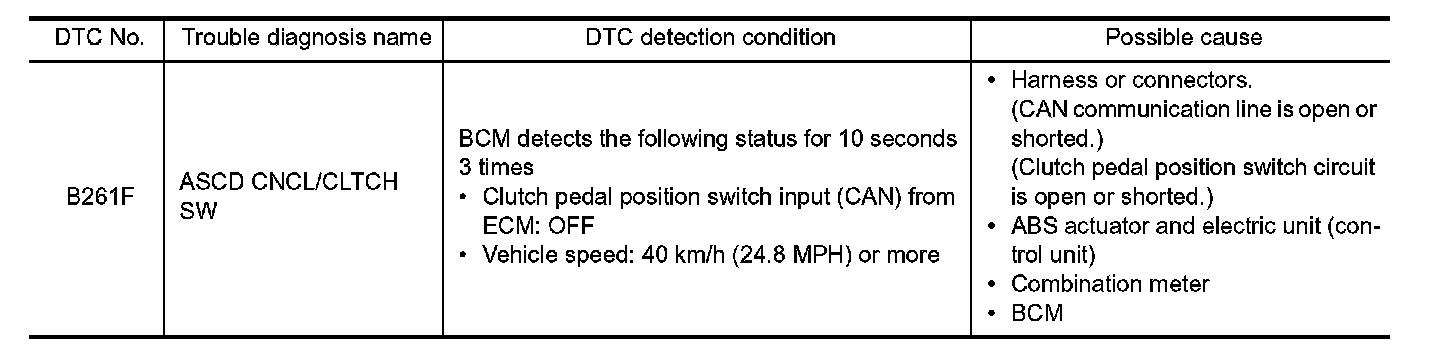

DTC DETECTION LOGIC

NOTE:
- If DTC B261F is displayed with DTC U1000, first perform the trouble diagnosis for DTC U1000. Body Control System With Intelligent Key System.
- If DTC B261F is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010. Body Control System With Intelligent Key System.






DTC CONFIRMATION PROCEDURE
1.PERFORM DTC CONFIRMATION PROCEDURE
1. Start the engine.
2. Drive vehicle at a speed of 40 km/h (24.8 MPH) or more for 10 seconds.
3. Decrease the vehicle speed to below 40 km/h (24.8 MPH).
4. Repeat steps 2 and 3 twice (a total of 3 times).
5. Check DTC in "Self Diagnostic Result" mode of "BCM" using CONSULT-III.
Is DTC detected?
YES - Go to SEE Diagnosis Procedure.
NO - INSPECTION END




Diagnosis Procedure
1.CHECK DTC OF "ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)"
Check DTC in "Self Diagnostic Result" mode of "ABS" using CONSULT-III.
Is DTC detected?
YES - Perform the trouble diagnosis related to the detected DTC. Testing and Inspection.
NO - GO TO 2.
2.CHECK DTC OF COMBINATION METER
Check DTC in "Self Diagnostic Result" mode of "METER/M&A" using CONSULT-III. Testing and Inspection, "DTC
Index".
Is the inspection result normal?
YES - GO TO 3.
NO - Repair or replace the malfunctioning parts.
3.CHECK CLUTCH PEDAL POSITION SWITCH CIRCUIT
Clutch Pedal Position Switch.
Is the inspection result normal?
YES - GO TO 4.
NO - Repair or replace the malfunctioning parts.
4.CHECK INTERMITTENT INCIDENT
Intermittent Incident.
- INSPECTION END
