B2579

B2578, B2579 IN-VEHICLE SENSOR





DTC Logic

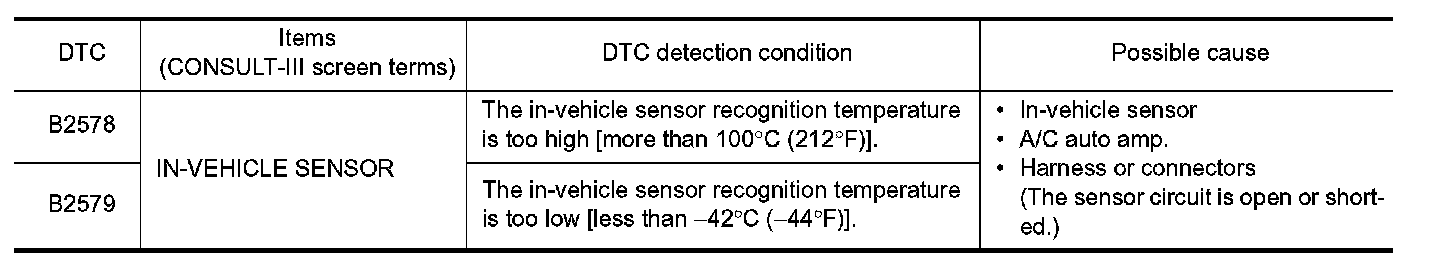

DTC DETECTION LOGIC

NOTE:
- If DTC is displayed along with DTC U1000, first perform the trouble diagnosis for DTC U1000. HAC-
50, "DTC Logic".
- If DTC is displayed along with DTC U1010, first perform the trouble diagnosis for DTC U1010. Control Unit Control Unit Control Unit, "DTC Logic".






DTC CONFIRMATION PROCEDURE
1.PERFORM DTC CONFIRMATION PROCEDURE
With CONSULT-III
1. Turn ignition switch ON.
2. Select "Self Diagnostic Result" mode of "HVAC" using CONSULT-III.
3. Check DTC.
Is DTC detected?
YES - SEE Diagnosis Procedure.
NO - INSPECTION END




Diagnosis Procedure
1.CHECK IN-VEHICLE SENSOR POWER SUPPLY
1. Turn ignition switch OFF.
2. Disconnect in-vehicle sensor connector.
3. Turn ignition switch ON.
4. Check voltage between in-vehicle sensor harness connector and ground.





Is the inspection result normal?
YES - GO TO 2.
NO - GO TO 4.
2.CHECK IN-VEHICLE SENSOR GROUND CIRCUIT FOR OPEN
1. Turn ignition switch OFF.
2. Disconnect A/C auto amp. connector.

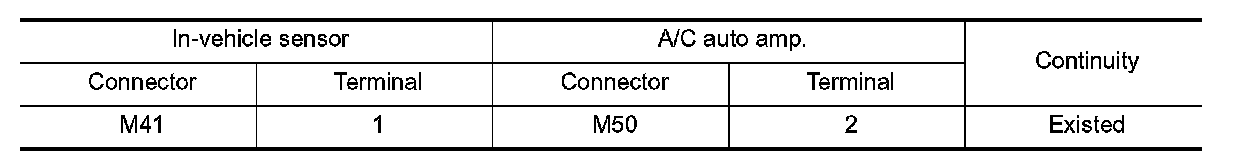

3. Check continuity between in-vehicle sensor harness connector and A/C auto amp harness connector.





Is the inspection result normal?
YES - GO TO 3.
NO - Repair harness or connector.
3.CHECK IN-VEHICLE SENSOR
Check in-vehicle sensor. SEE Component Inspection.
Is the inspection result normal?
YES - Replace A/C auto amp. Automatic Air Conditioner.
NO - Replace in-vehicle sensor. Service and Repair.
4.CHECK IN-VEHICLE SENSOR POWER SUPPLY CIRCUIT FOR OPEN
1. Turn ignition switch OFF.
2. Disconnect A/C auto amp. connector.
3. Check continuity between in-vehicle sensor harness connector and A/C auto amp. harness connector.





Is the inspection result normal?
YES - GO TO 5.
NO - Repair harness or connector.
5.CHECK IN-VEHICLE SENSOR POWER SUPPLY CIRCUIT FOR SHORT

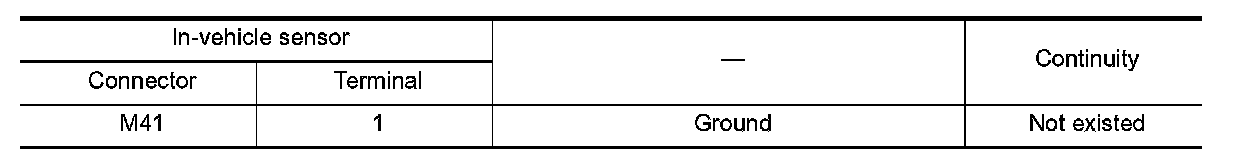

Check continuity between in-vehicle sensor harness connector and ground.





Is the inspection result normal?
YES - Replace A/C auto amp. Automatic Air Conditioner.
NO - Repair harness or connector.




Component Inspection
1.CHECK IN-VEHICLE SENSOR
1. Remove in-vehicle sensor. Service and Repair.

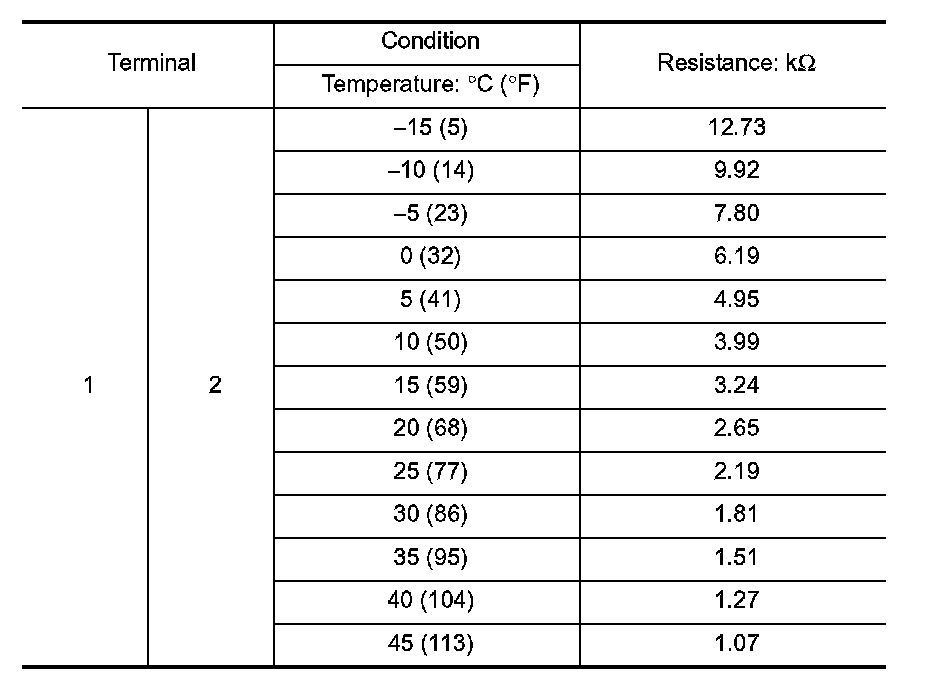

2. Check resistance between in-vehicle sensor terminals. Refer to applicable table for the normal value.





Is the inspection result normal?
YES - INSPECTION END
NO - Replace in-vehicle sensor. Service and Repair.
