B2267

B2267 ENGINE SPEED





Description
The engine speed signal is transmitted from ECM to the combination meter via CAN communication.




DTC Logic

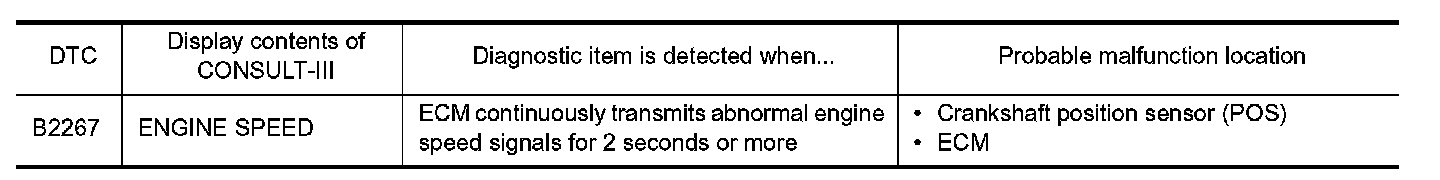

DTC DETECTION LOGIC









Diagnosis Procedure
1.PERFORM SELF-DIAGNOSIS OF ECM
Perform "Self Diagnostic Result" of "ENGINE", and repair or replace malfunctioning parts.
- Testing and Inspection.
