B2205

B2205 VEHICLE SPEED





Description
Vehicle speed signal is transmitted from ABS actuator and electric unit (control unit) via CAN communication to combination meter.




DTC Logic

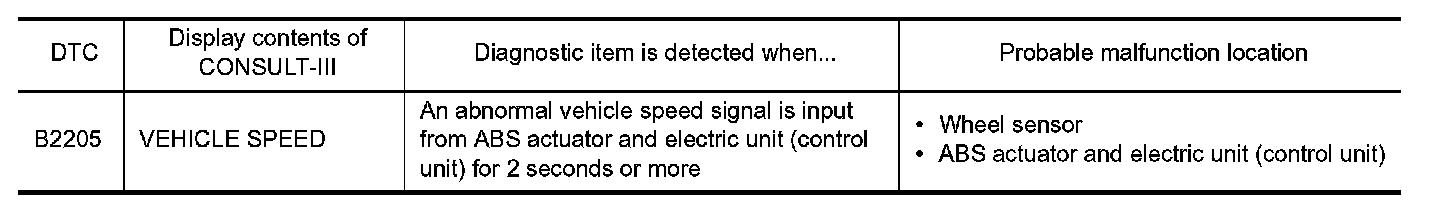

DTC DETECTION LOGIC









Diagnosis Procedure
1.PERFORM SELF-DIAGNOSIS OF ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)
Perform "Self Diagnostic Result" of "ABS", and repair or replace malfunctioning parts.
- Scan Tool Testing and Procedures.
