Component Inspection





OVERDRIVE CONTROL SWITCH


Component Inspection


OVERDRIVE CONTROL SWITCH

With Intelligent Key

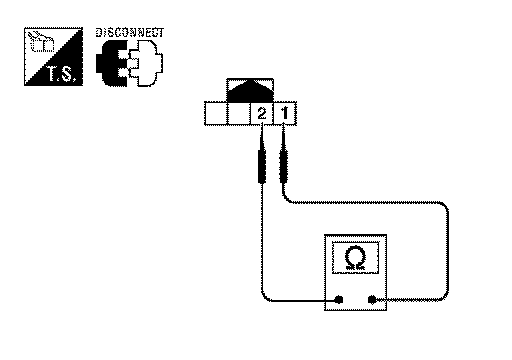

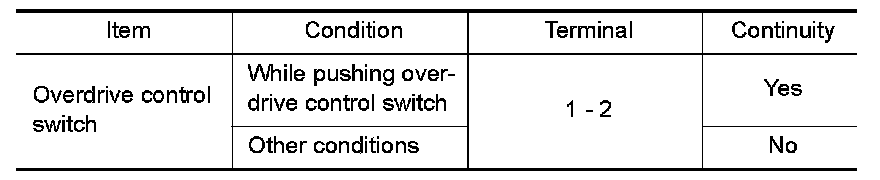

Check continuity between CVT shift selector harness connector terminals.






Without Intelligent Key

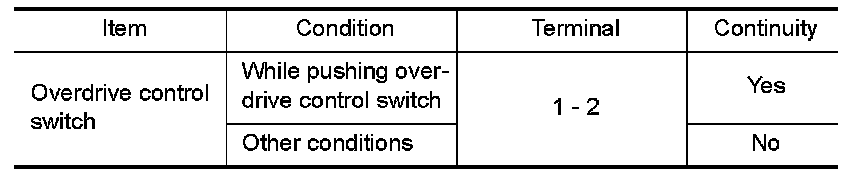

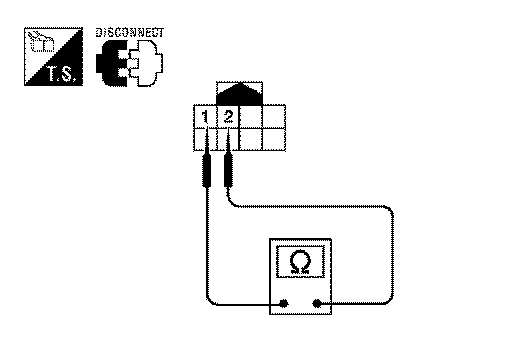

Check continuity between CVT shift selector harness connector terminals.
