Home >> Nissan-Datsun >> 2010 >> Sentra L4-2.0L (MR20DE) >> Repair and Diagnosis >> Transmission and Drivetrain >> Transmission Control Systems >> Diagrams >> Electrical Diagrams >> Output Speed Sensor

Output Speed Sensor





P0720 OUTPUT SPEED SENSOR

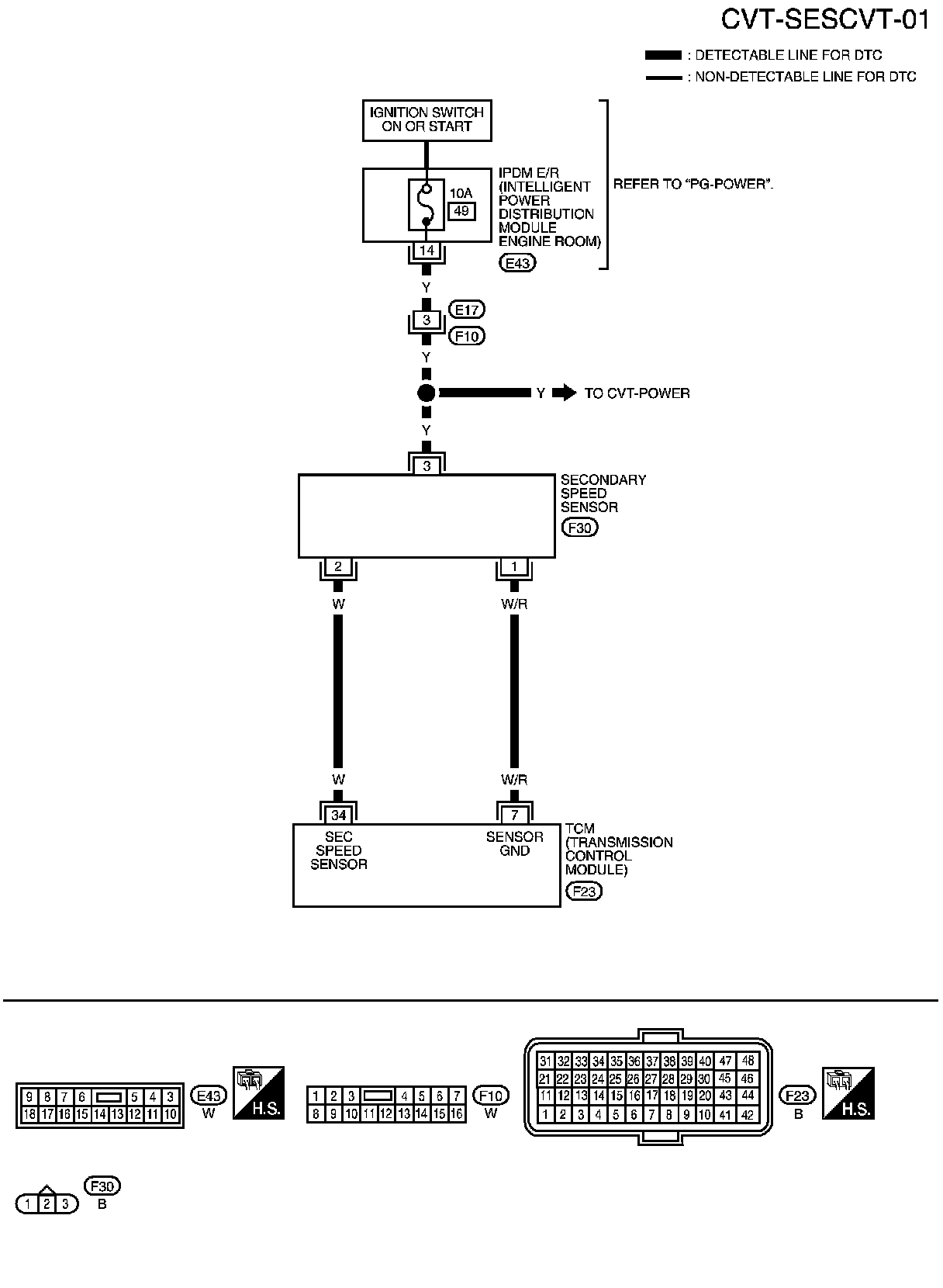

Wiring Diagram - CVT - SESCVT


CVT-SESCVT-01:






TCM TERMINALS AND REFERENCE VALUES
TCM Input/Output Signal Reference Value.
