Steering Gear: Specifications





SERVICE DATA AND SPECIFICATIONS (SDS)


Steering Gear (R24K)

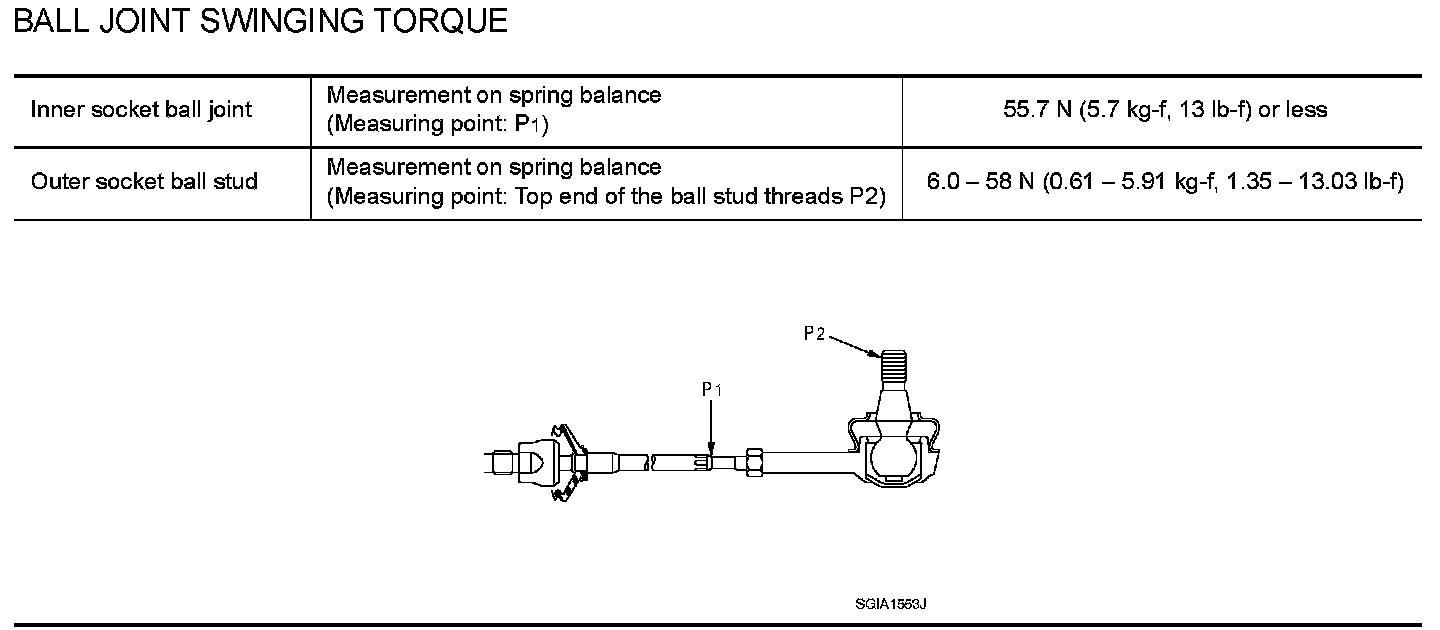

BALL JOINT SWINGING TORQUE






BALL JOINT AXIAL END PLAY






INNER SOCKET INSTALLATION LENGTH

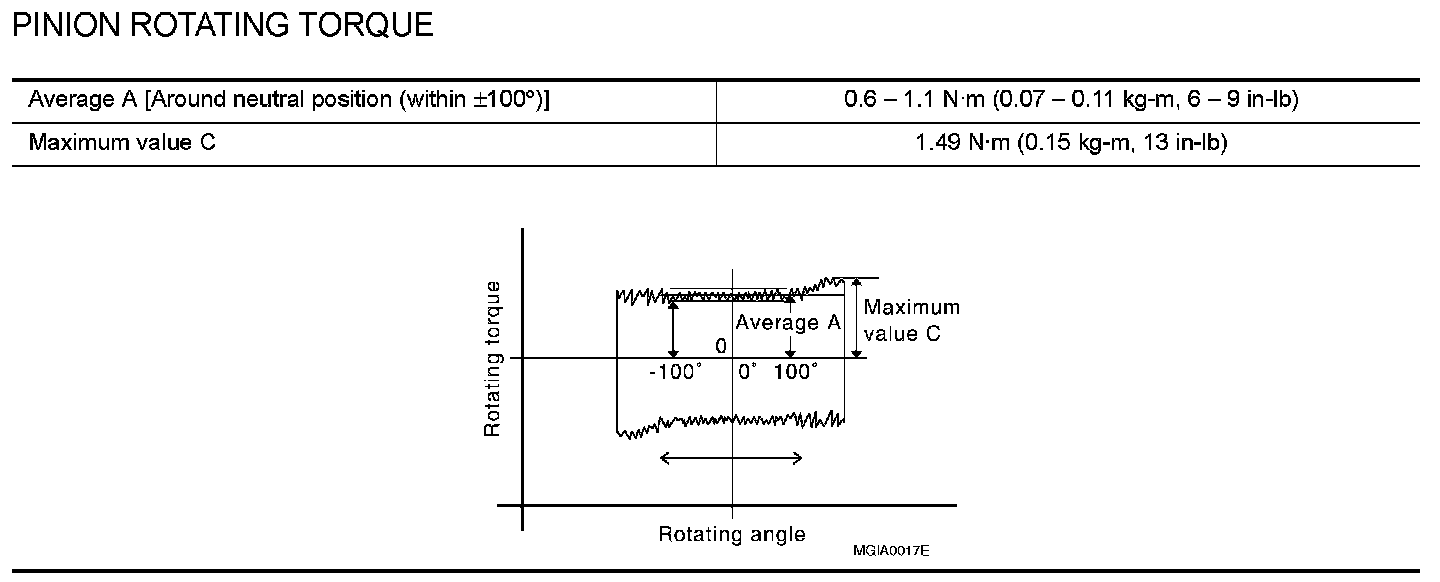

PINION ROTATING TORQUE






RACK STROKE
