For California

EVAPORATIVE EMISSION SYSTEM


Removal and Installation


EVAP CANISTER
Tighten EVAP canister as shown in the figure.






EVAP CANISTER VENT CONTROL VALVE

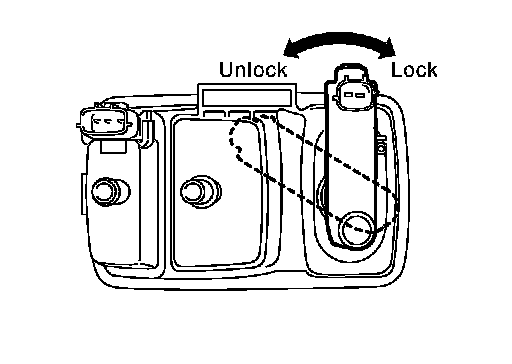

1. Turn EVAP canister vent control valve counterclockwise.
2. Remove the EVAP canister vent control valve.
Always replace O-ring with a new one.
