Home >> Nissan-Datsun >> 2010 >> Sentra L4-2.0L (MR20DE) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Diagrams >> Electrical Diagrams >> FTT Sensor >> Except For California

Except For California





FTT SENSOR

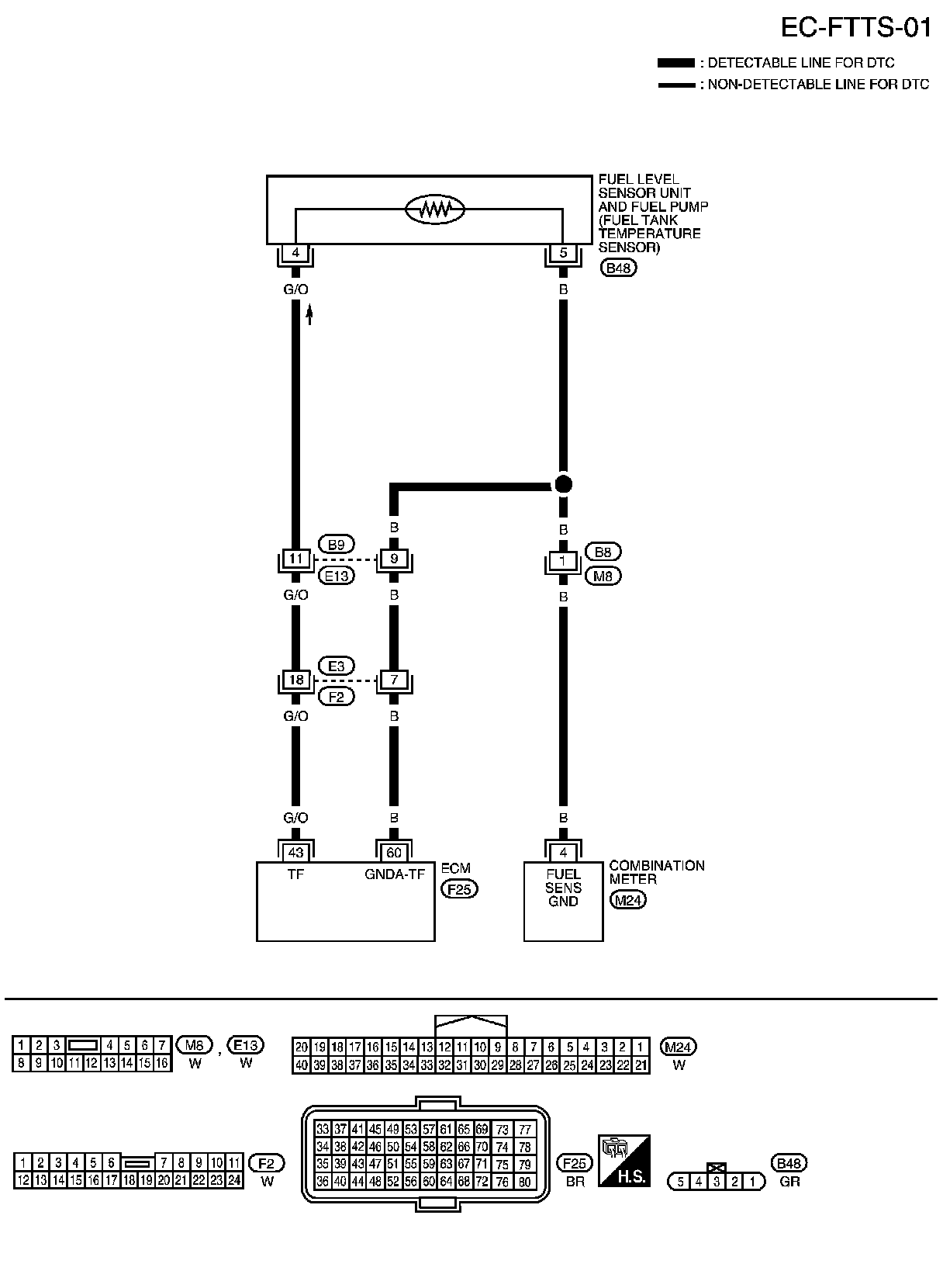

Wiring Diagram


EC-FTTS-01:
