Courtesy Lamp Bulb: Service and Repair

INTERIOR ROOM LAMP


Bulb Replacement


INTERIOR ROOM LAMP

Removal





1. Remove the interior lamp lens.

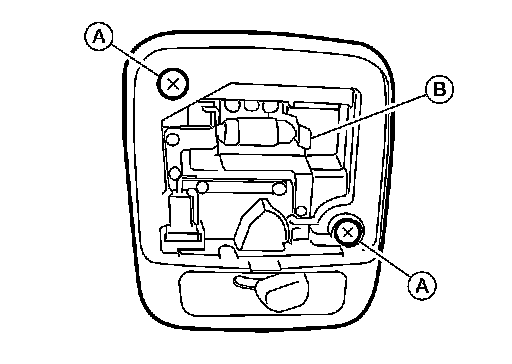

2. Push the interior lamp metal tab (B) and remove the bulb.
- Interior lamp screws (A)

Installation
Installation is in the reverse order of removal.
