Cooling System: Testing and Inspection
OVERHEATING CAUSE ANALYSIS

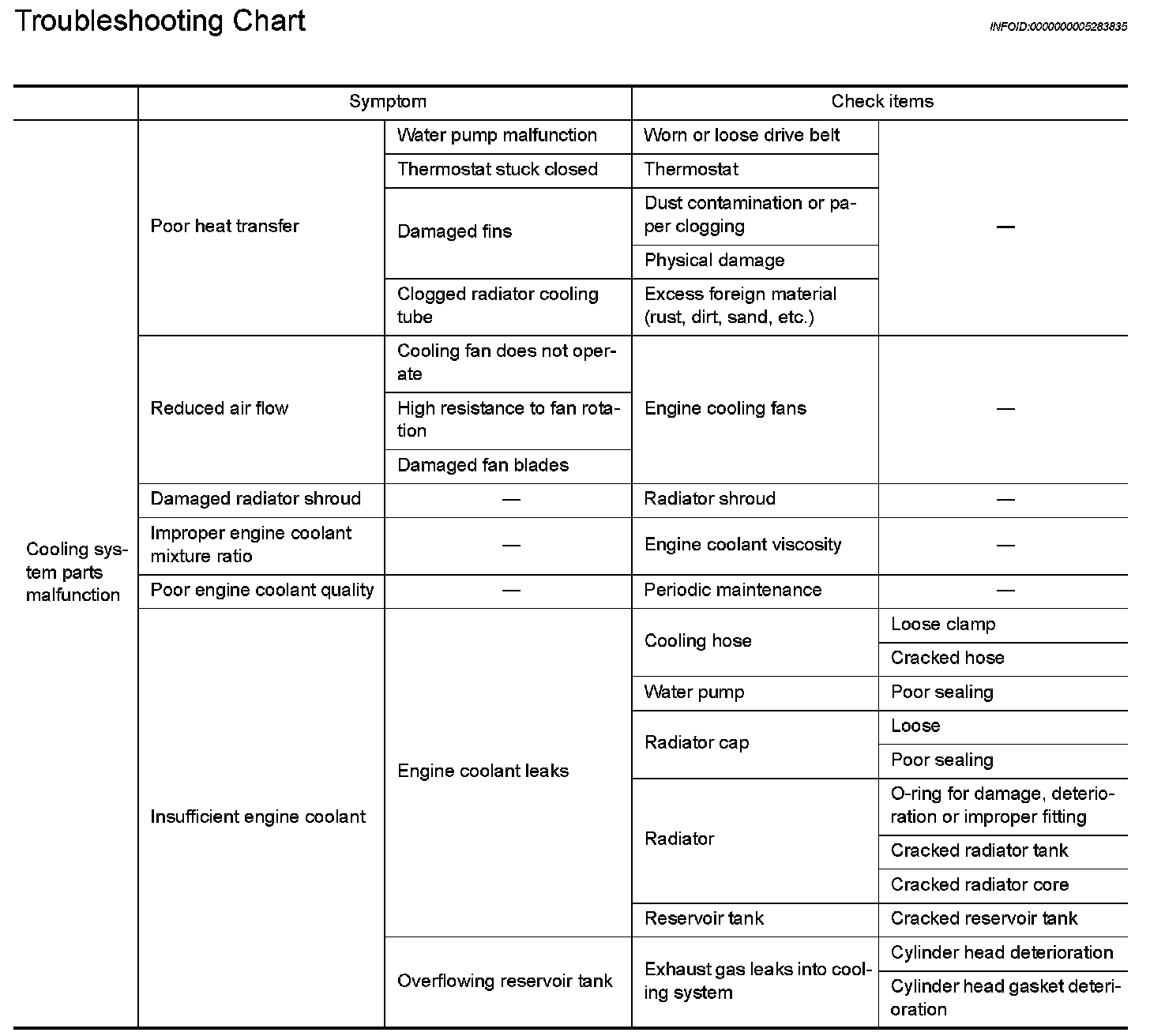

Troubleshooting Chart

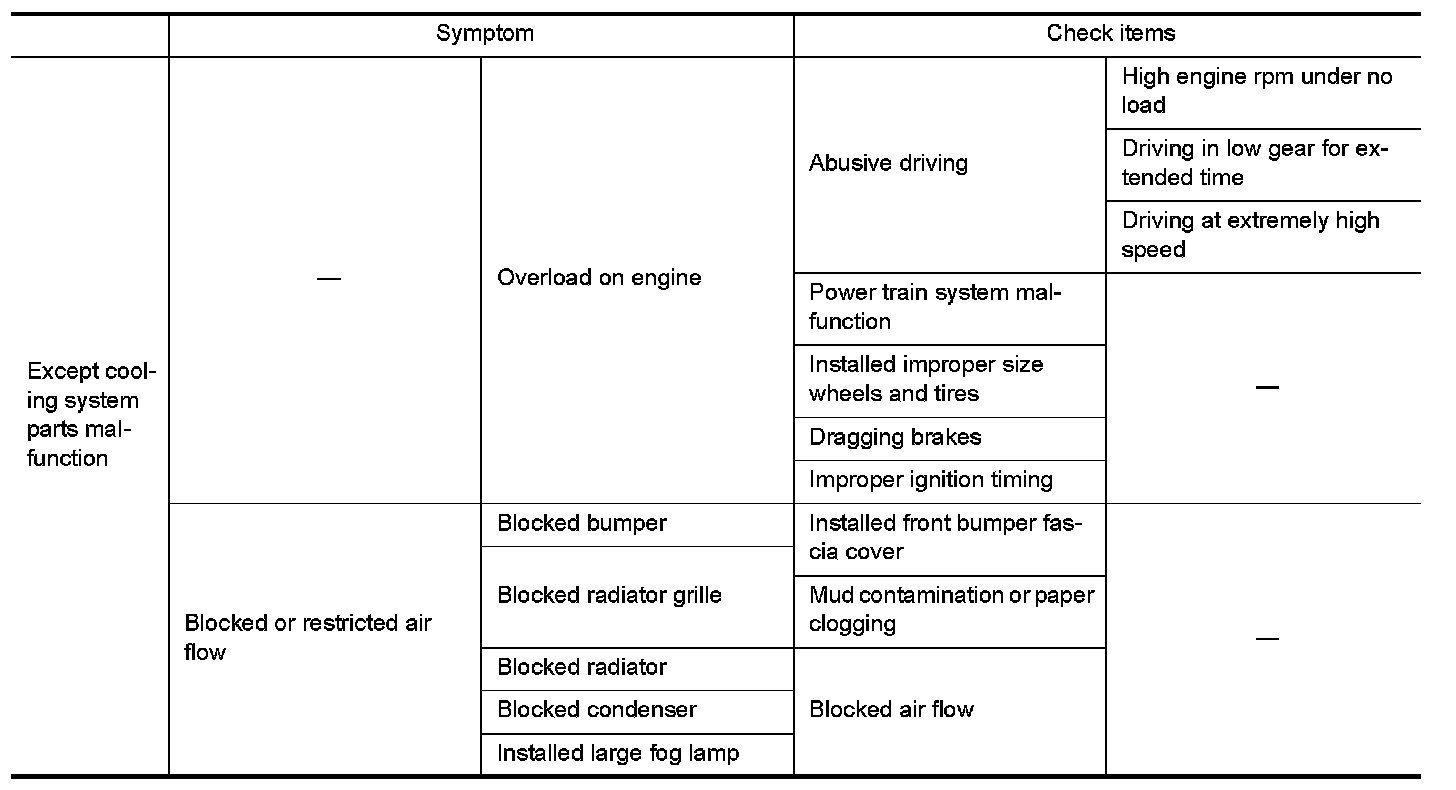

Troubleshooting Chart (Part 1):
Troubleshooting Chart (Part 2):
