Heated Glass Element





REAR WINDOW DEFOGGER


Wiring Diagram - DEF -

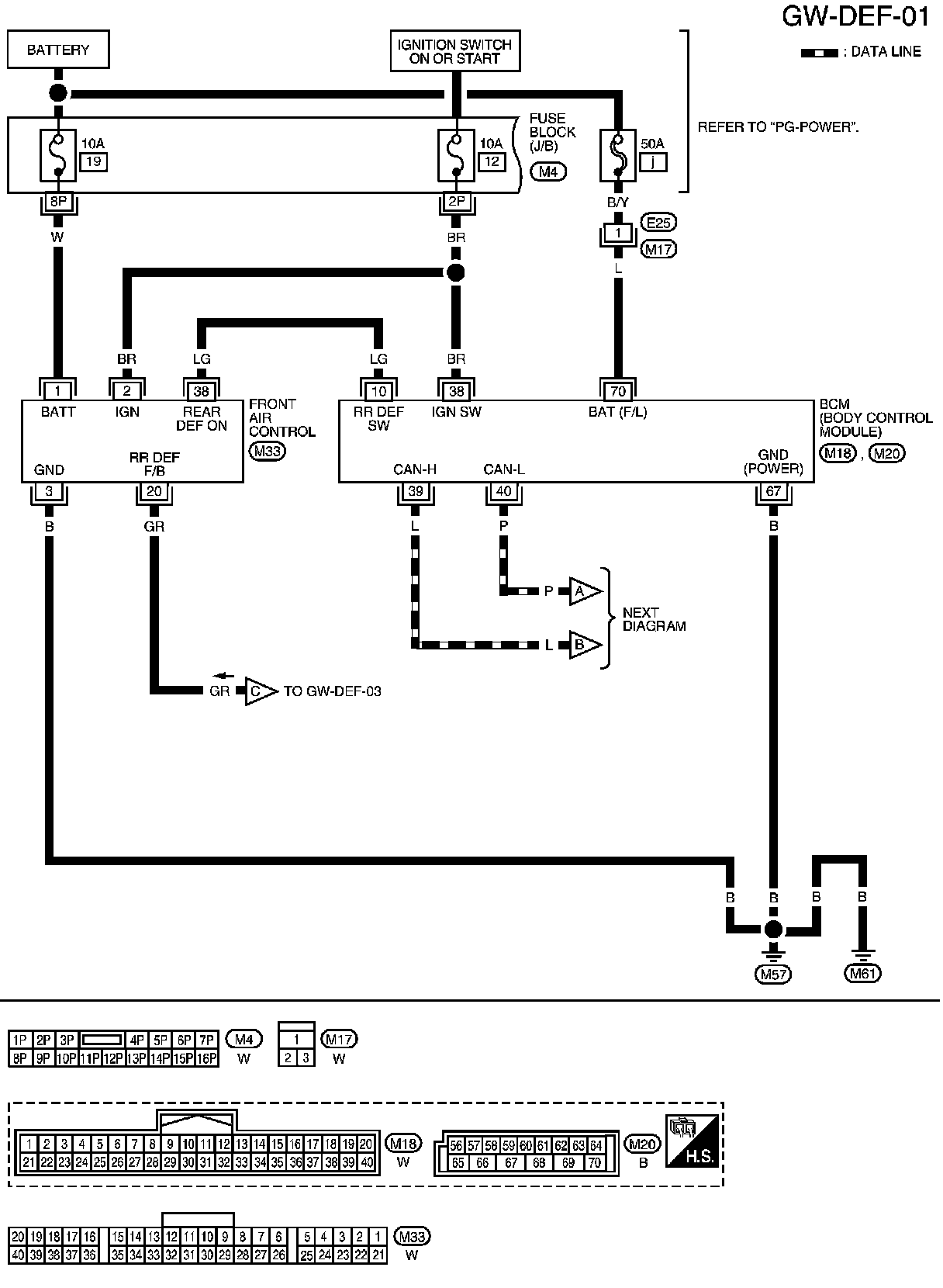

GW-DEF-01:

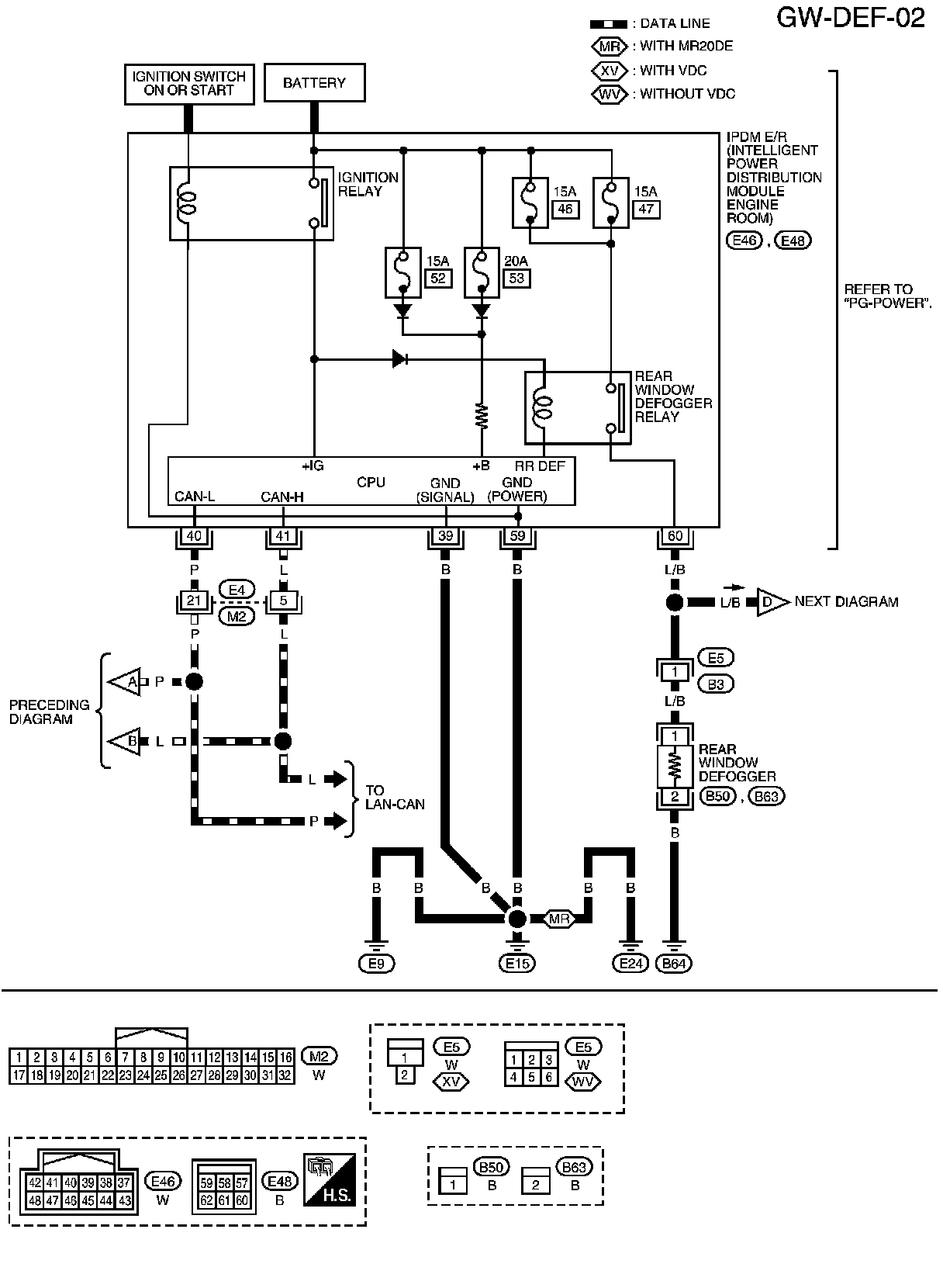

GW-DEF-02:

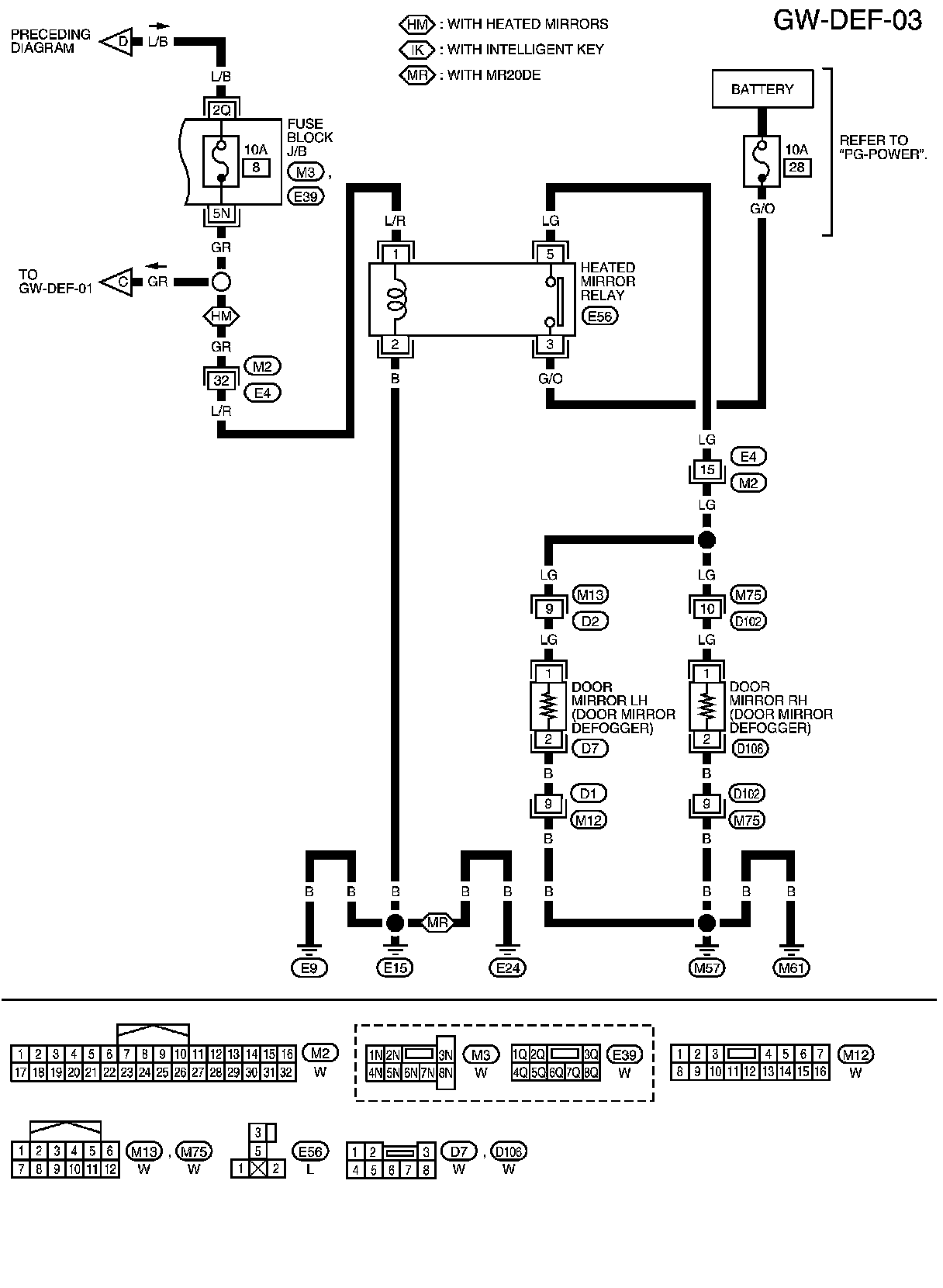

GW-DEF-03:
