Cellular Phone
Cellular Phone
TELEPHONE
Wiring Diagram - H/PHON -
MID SYSTEM

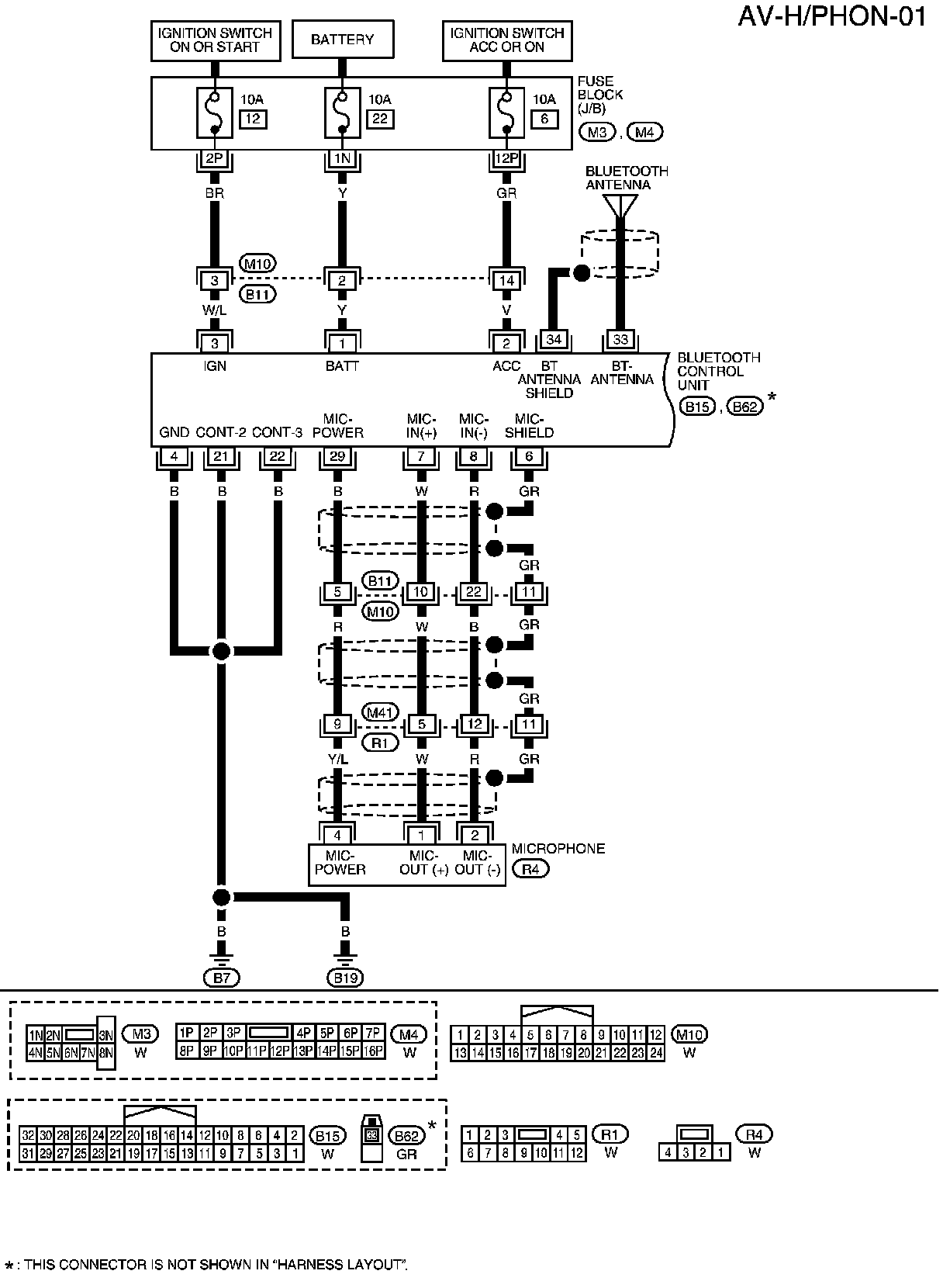

AV-H/PHON-01:

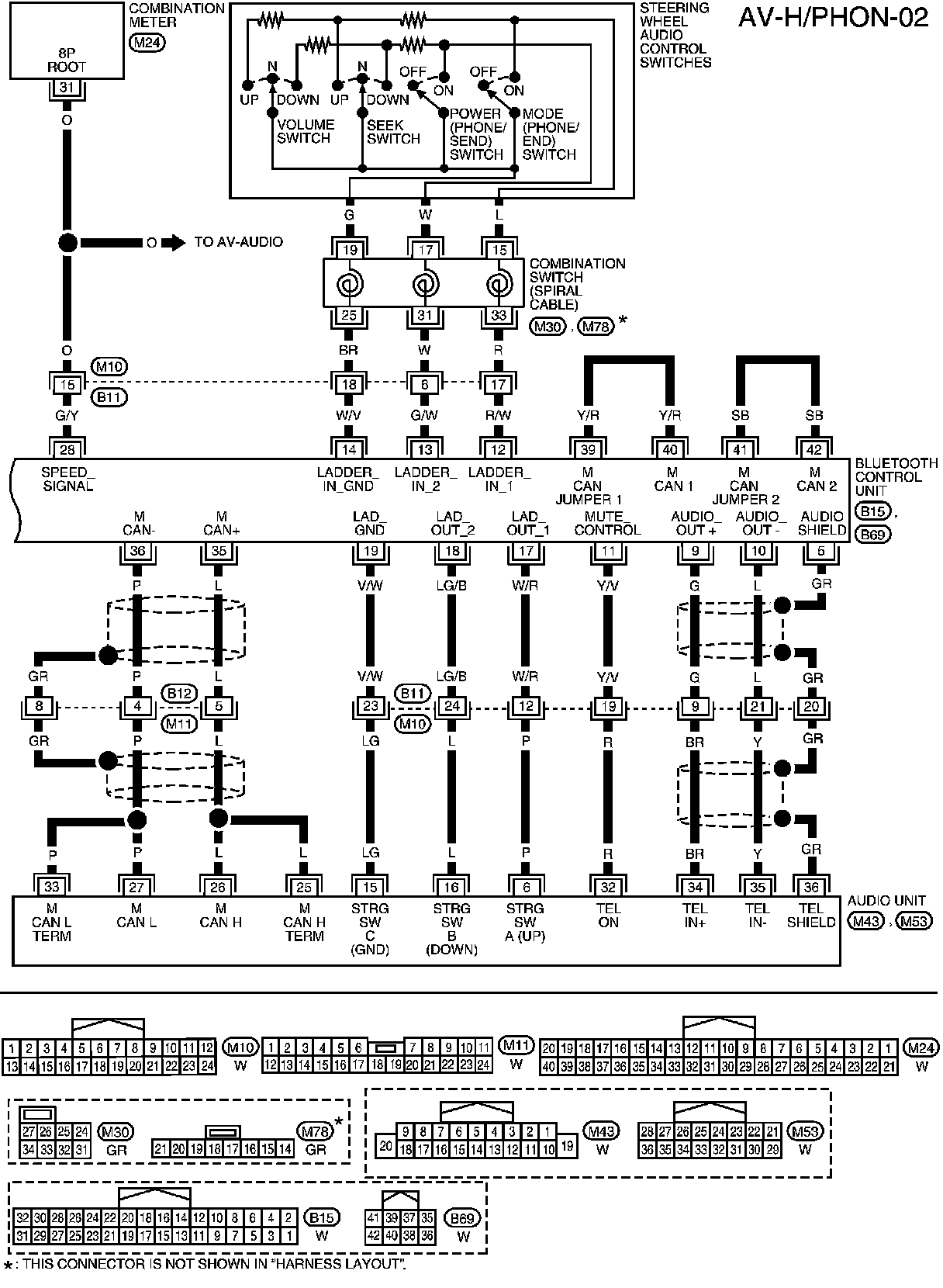

AV-H/PHON-02:
PREMIUM SYSTEM
AV-H/PHON-03:
AV-H/PHON-04:
