ABS





TROUBLE DIAGNOSIS


Wiring Diagram - ABS -

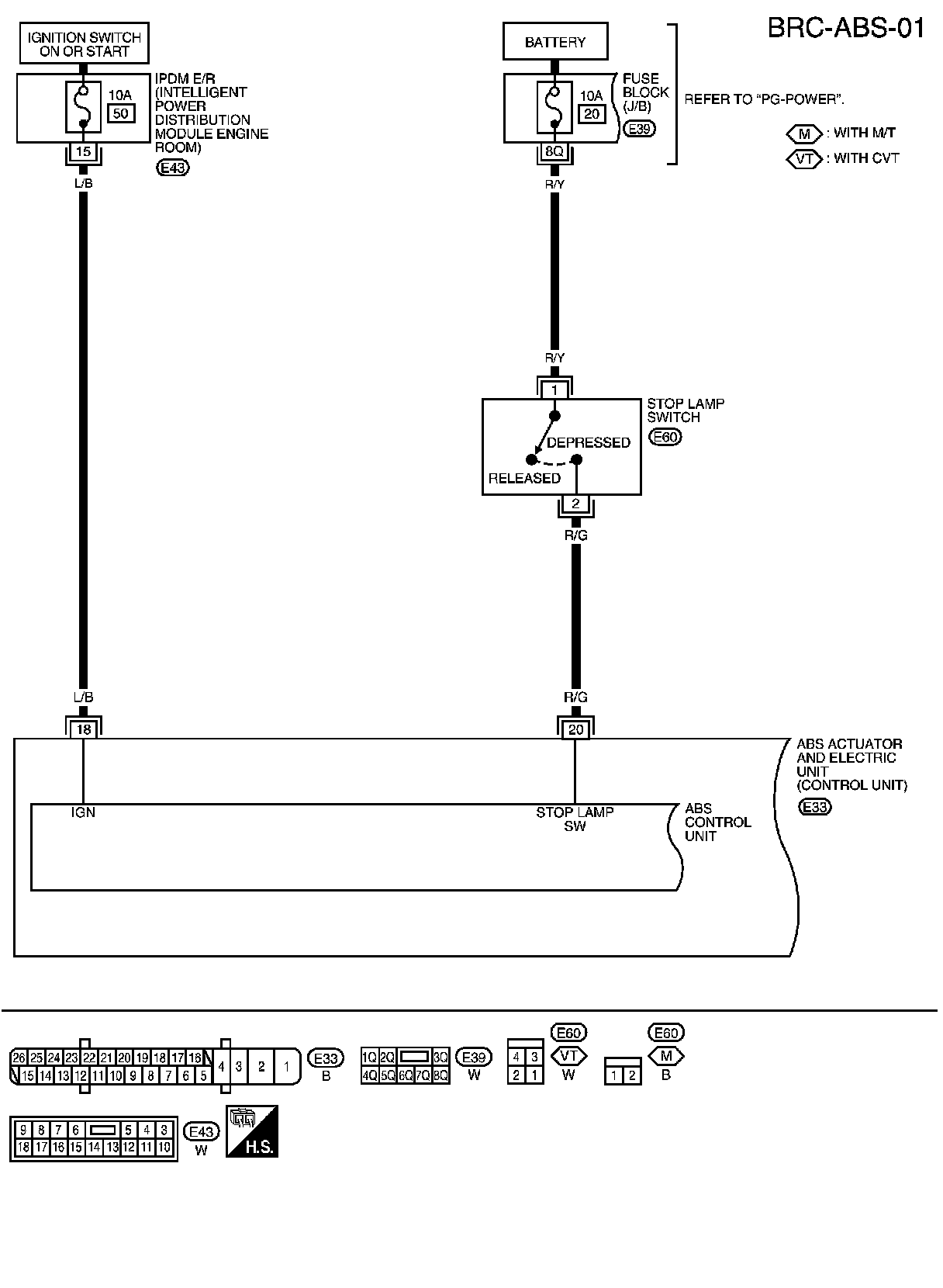

BRC-ABS-01:






BRC-ABS-02:

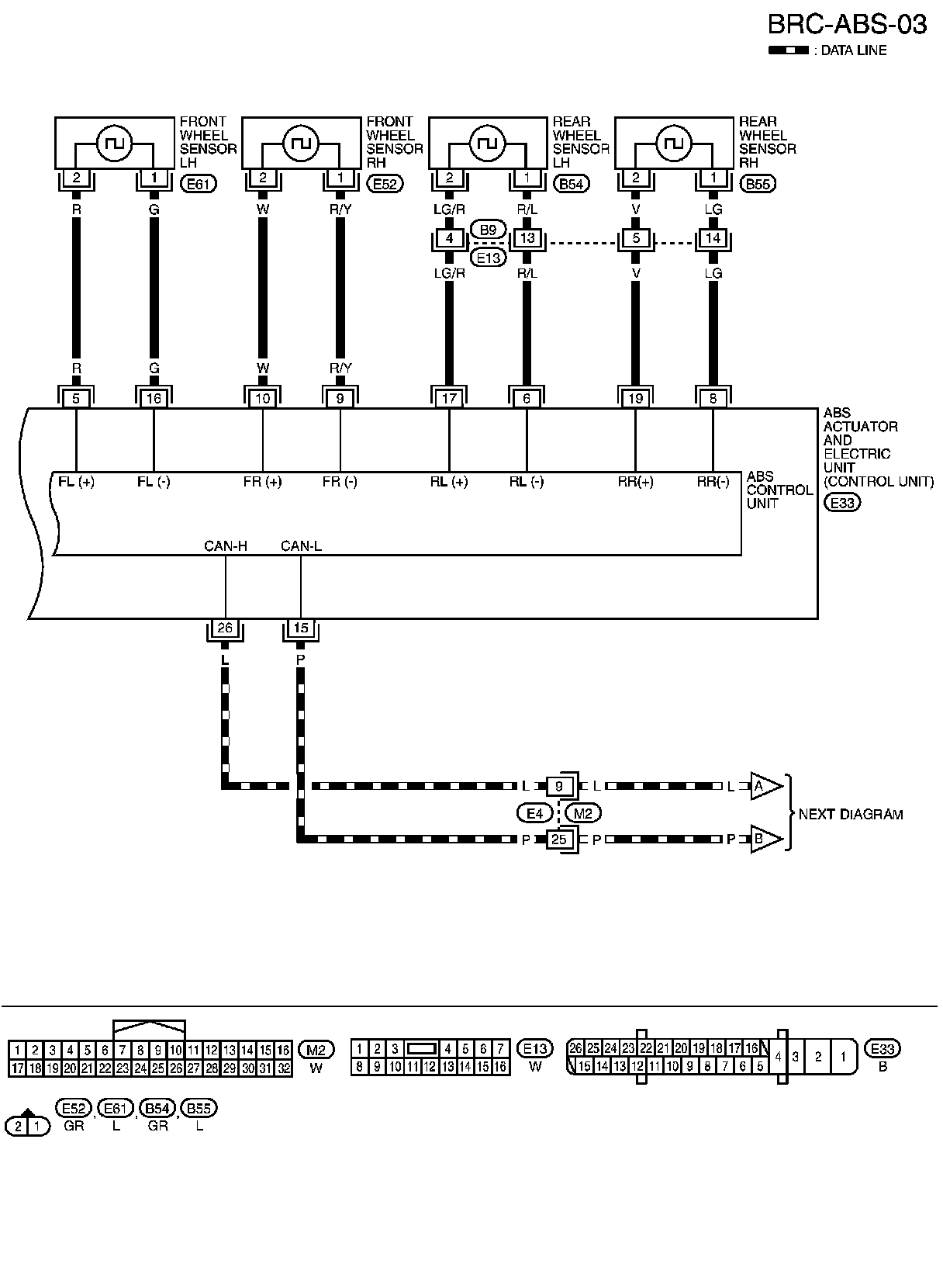

BRC-ABS-03:

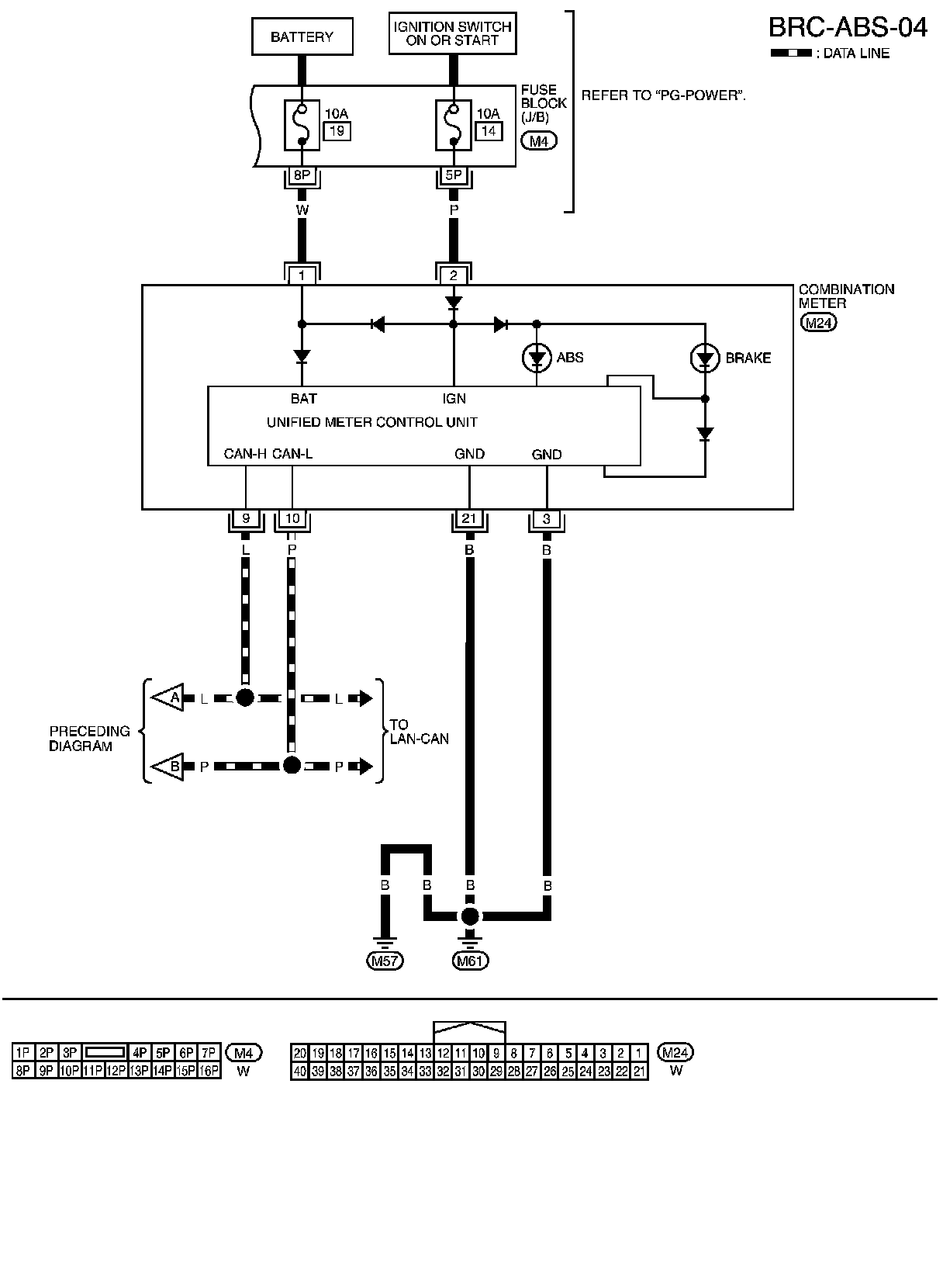

BRC-ABS-04:
