Home >> Nissan-Datsun >> 2010 >> Sentra L4-2.0L (MR20DE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Description and Operation >> Schematic

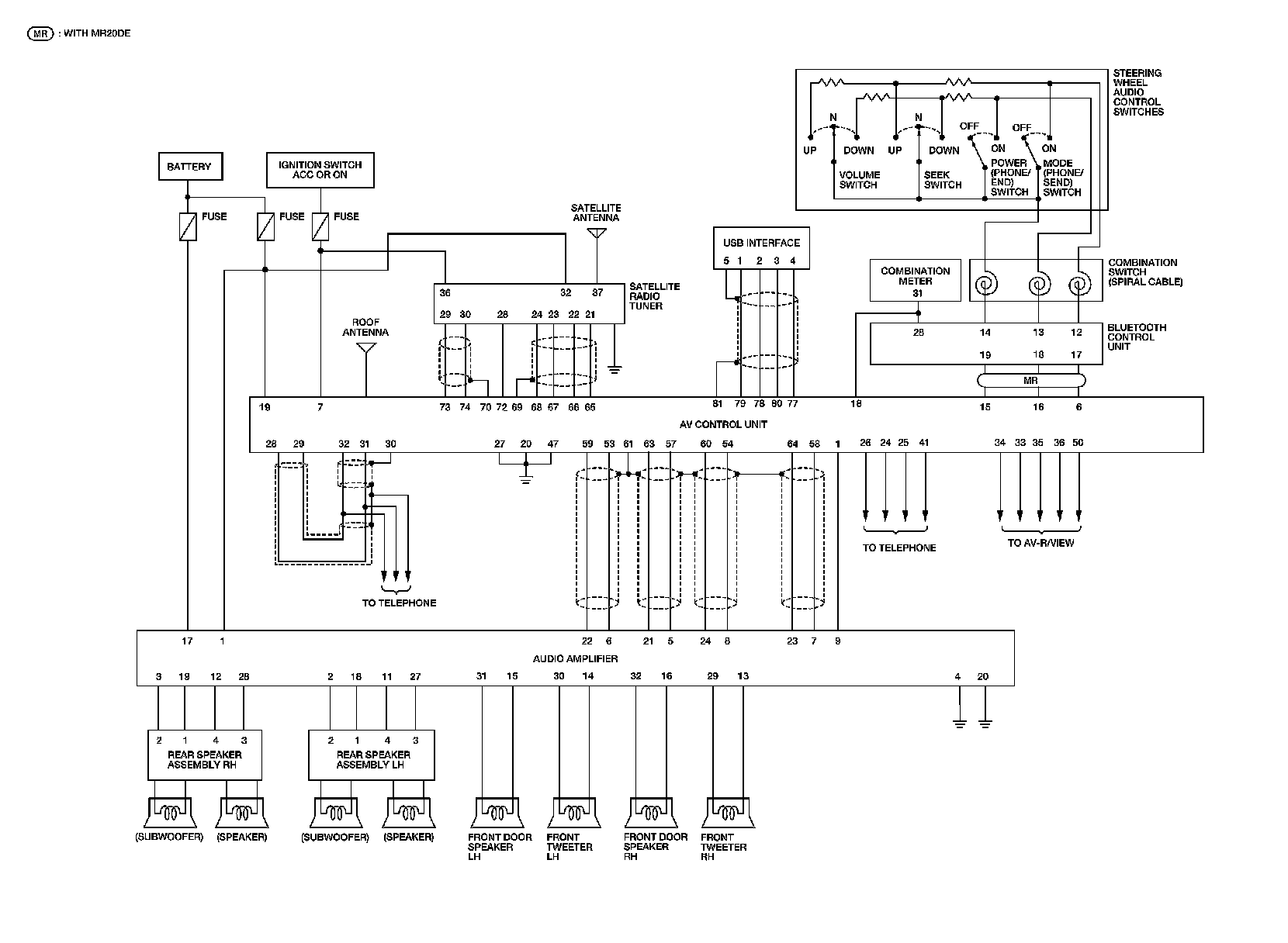

Schematic





AUDIO


Schematic


MID SYSTEM






PREMIUM SYSTEM (WITHOUT ROCKFORD FOSGATE)






PREMIUM SYSTEM (WITH ROCKFORD FOSGATE)
