Home >> Nissan-Datsun >> 2010 >> Sentra L4-2.0L (MR20DE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Cellular Phone >> Testing and Inspection >> Pinout Values and Diagnostic Parameters >> Terminal and Reference Value

Terminal and Reference Value





TELEPHONE

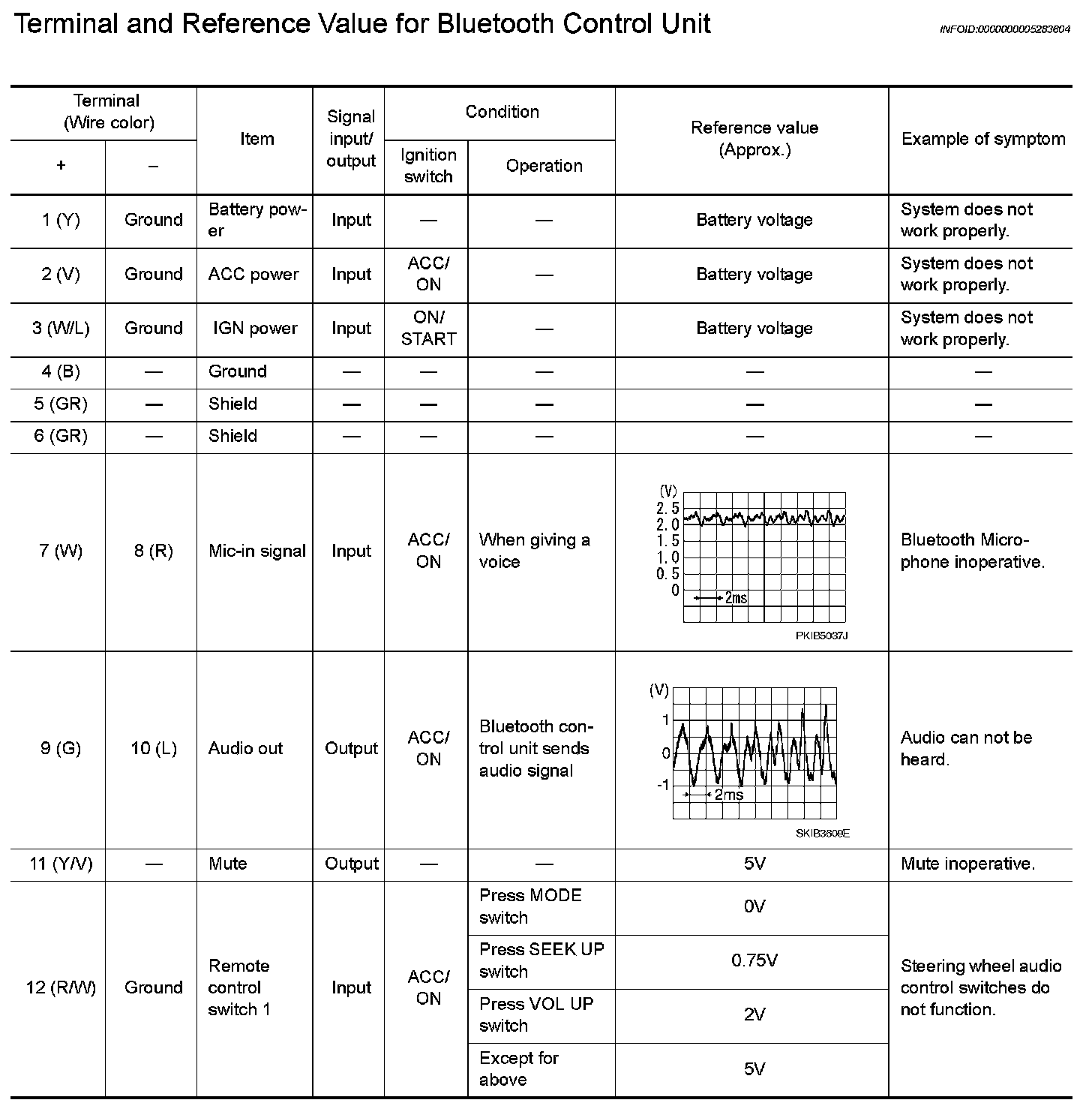

Terminal and Reference Value for Bluetooth Control Unit
