Rear Vision Camera: Service and Repair

REAR VIEW CAMERA


Removal and Installation












REMOVAL
1. Remove trunk lid finisher. .
2. Disconnect the rear view camera connector.
3. Remove the license plate finisher. License Lamp Finisher.

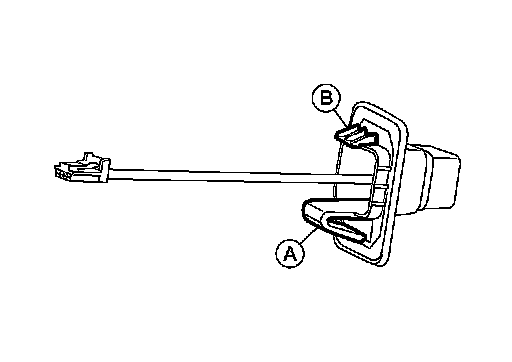

4. Press in the rear view camera tab (A) then release the rear view camera hook (B) and remove the rear view camera.

INSTALLATION
Installation is in the reverse order of removal.
