Rear Vision Camera: Description and Operation





REAR VIEW CAMERA

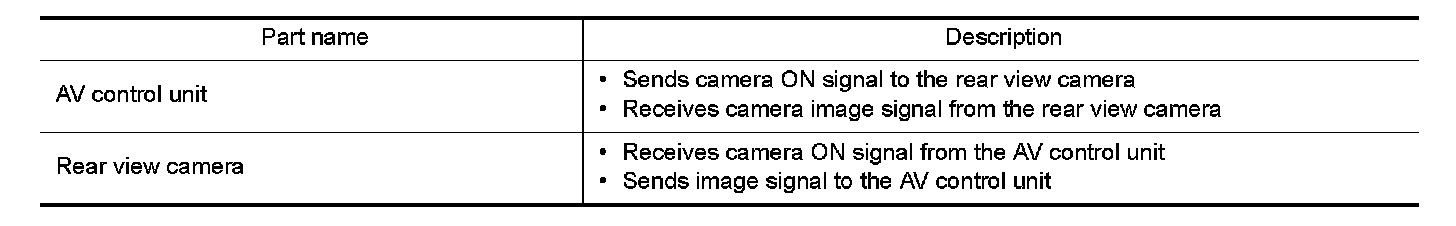

System Description


REAR VIEW CAMERA SYSTEM
When the shift selector is in the R position, the AV control unit shows a view to the rear of the vehicle. Lines which indicate the vehicle clearance and distances are also displayed.

Rear View Camera System Diagram
