System Specifications

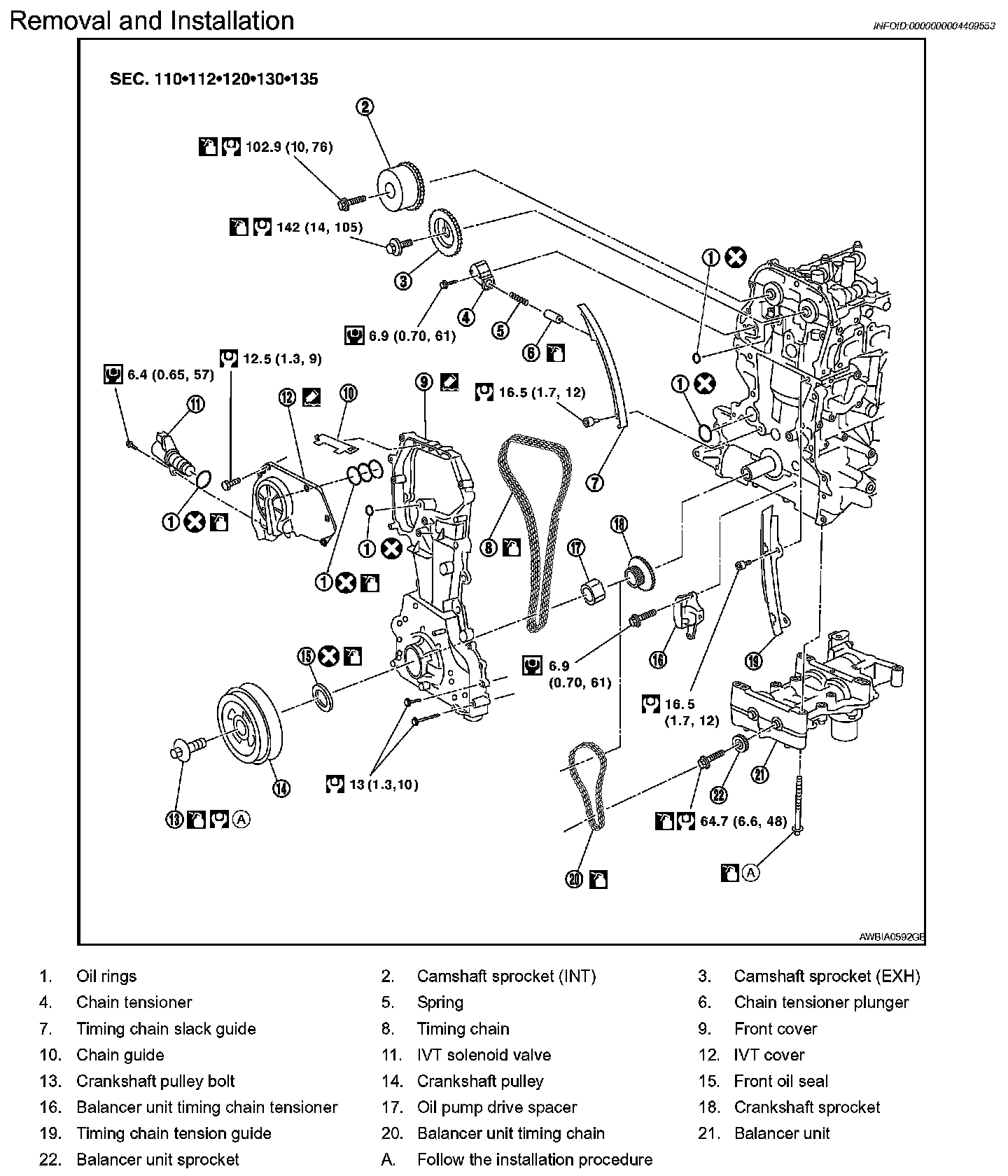

Timing Chain Tensioner





Crankshaft Pulley

Tighten to initial specifications:

Crankshaft pulley bolt initial tightening : 37.3 - 47.1 N.m (3.8 - 4.8 kg-m, 28 - 34 ft-lb)


Timing Cover





Tighten front cover bolts in the numerical order as shown.
