System Specifications
SERVICE DATA AND SPECIFICATIONS (SDS)
Standard and Limit

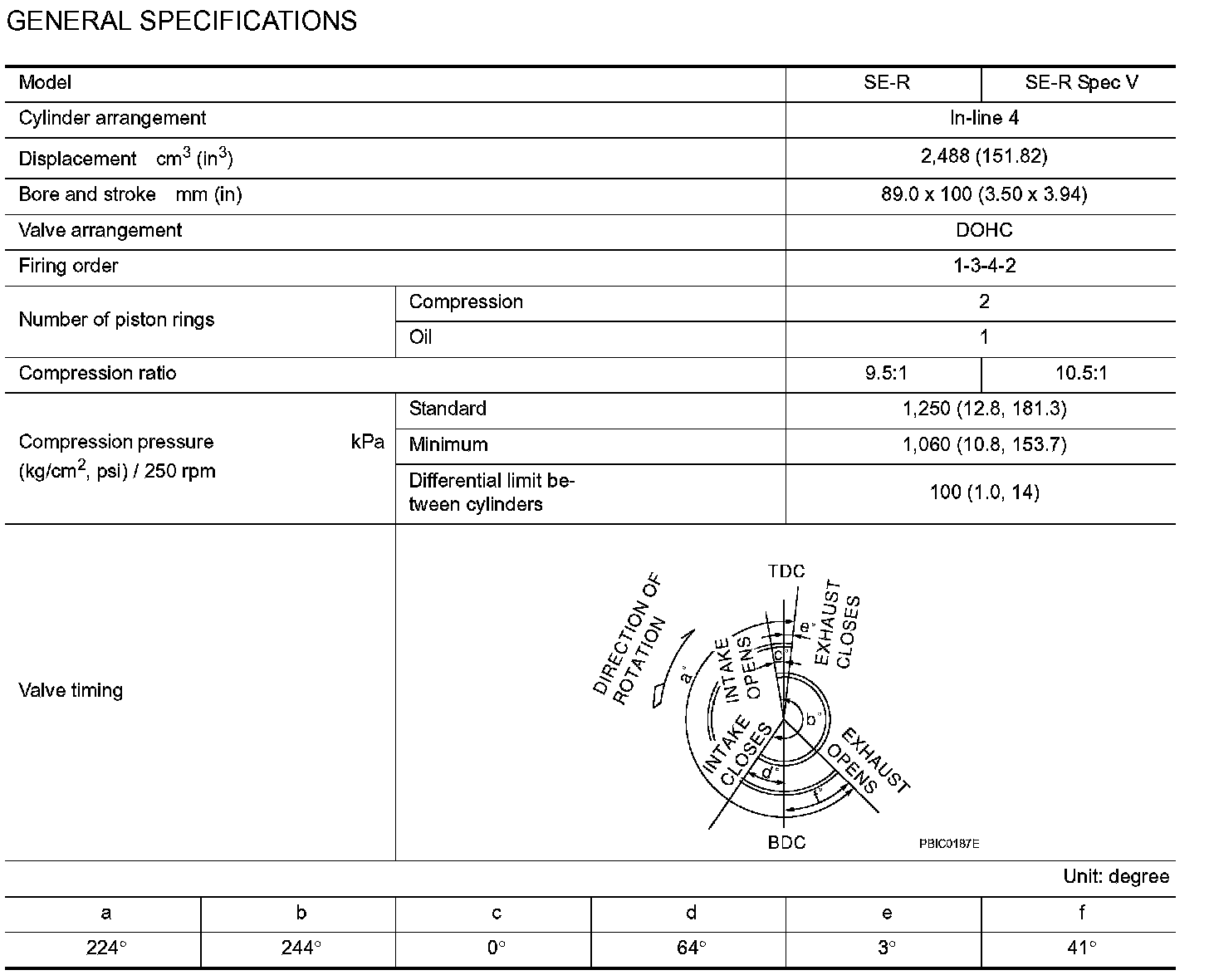

GENERAL SPECIFICATIONS

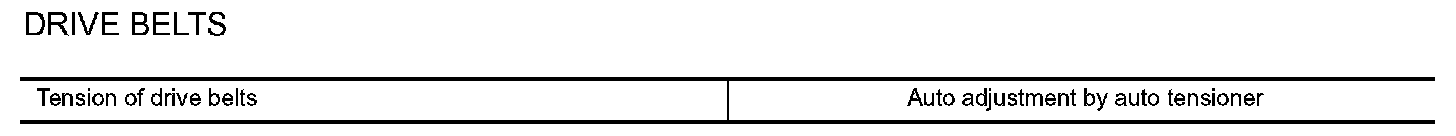

DRIVE BELTS

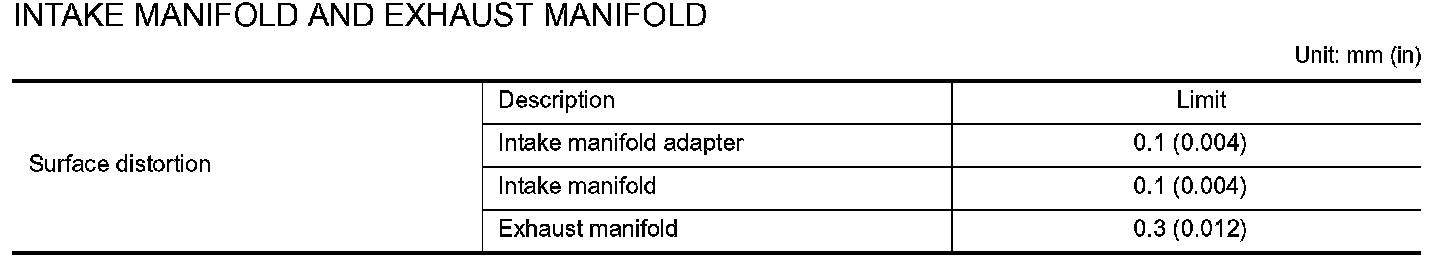

INTAKE MANIFOLD AND EXHAUST MANIFOLD

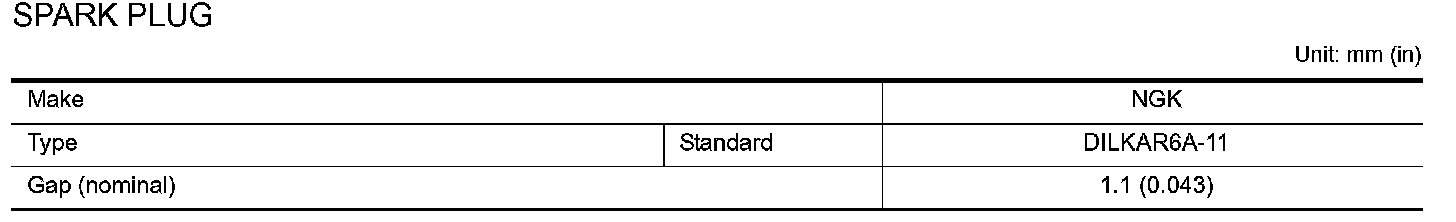

SPARK PLUG

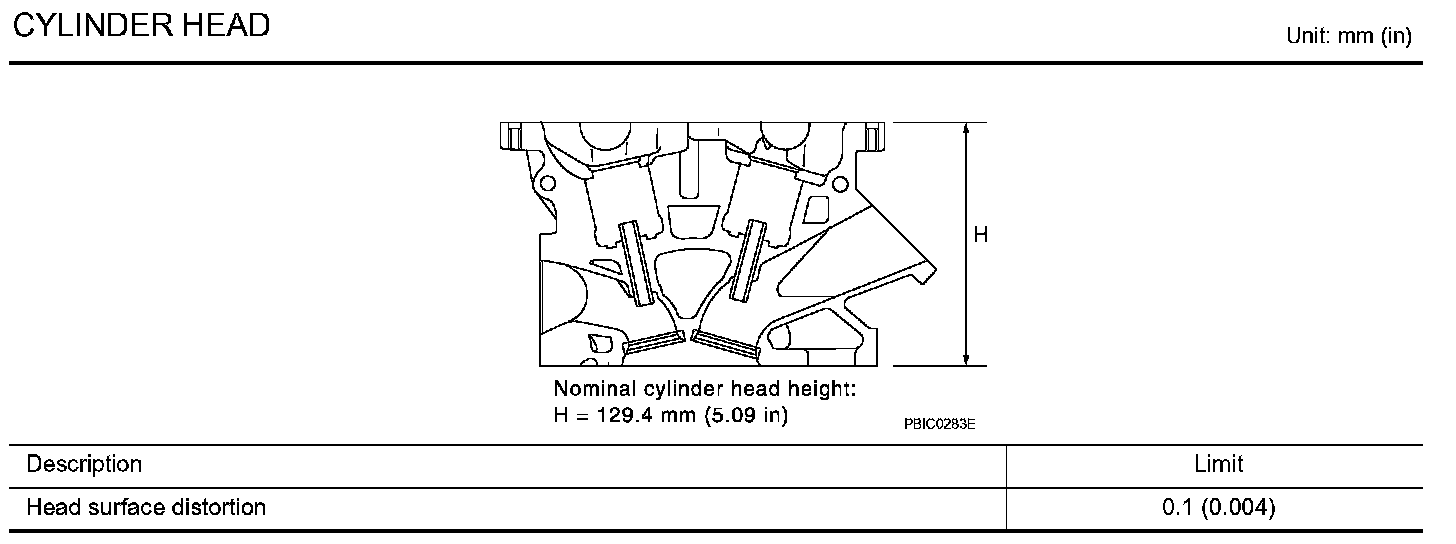

CYLINDER HEAD
VALVE

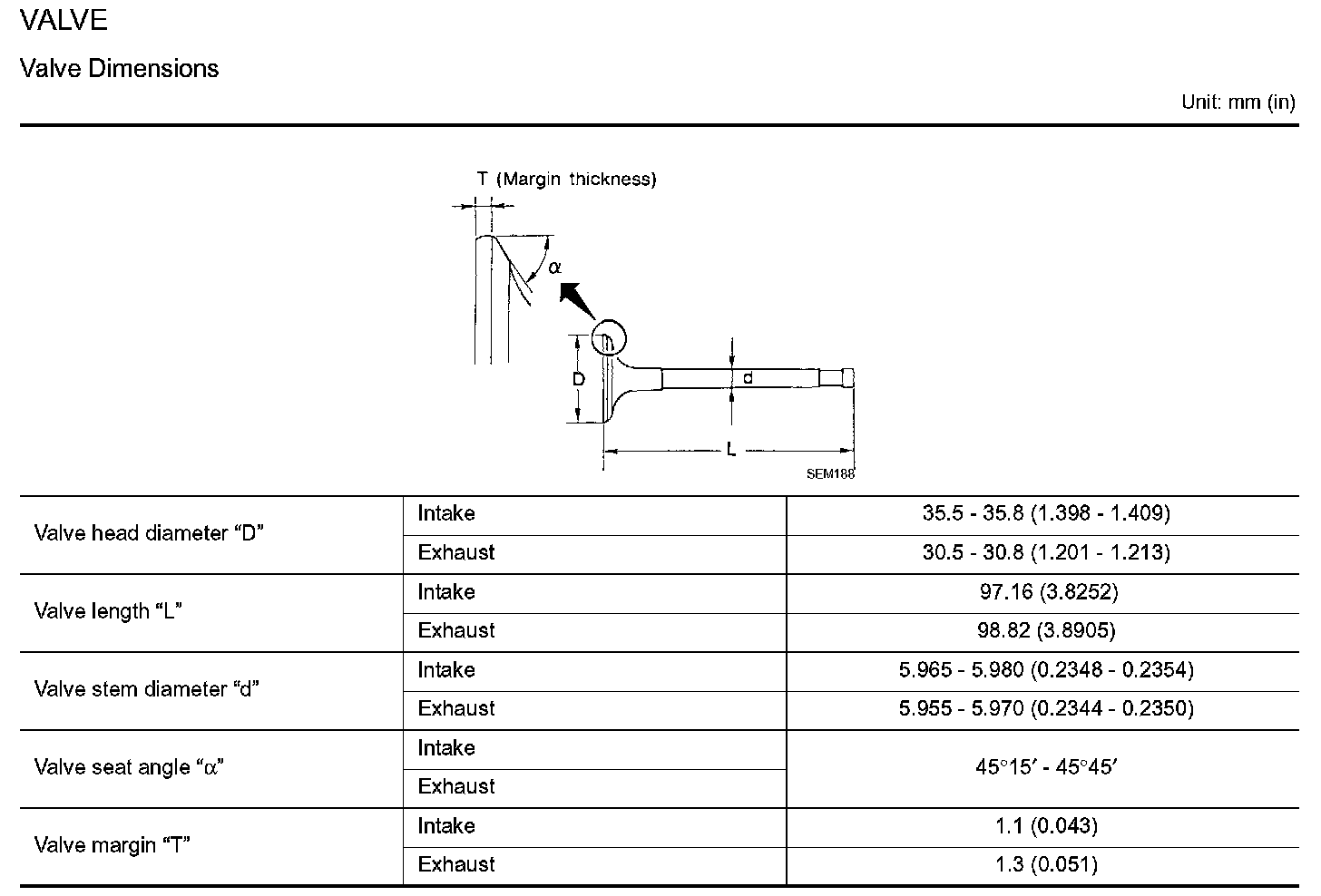

Valve Dimensions

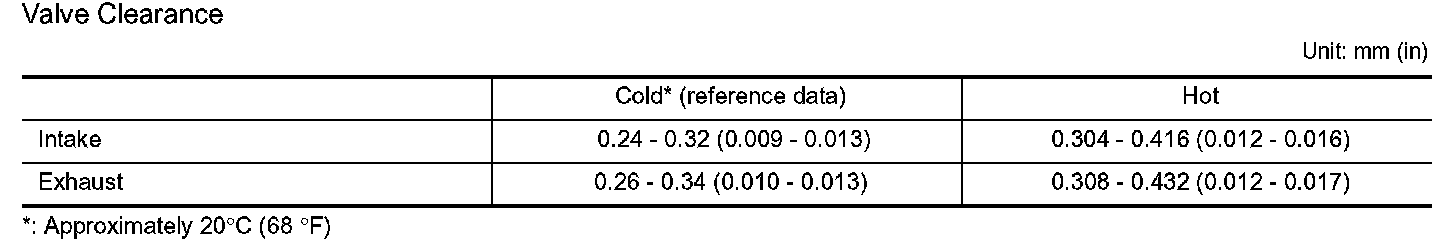

Valve Clearance

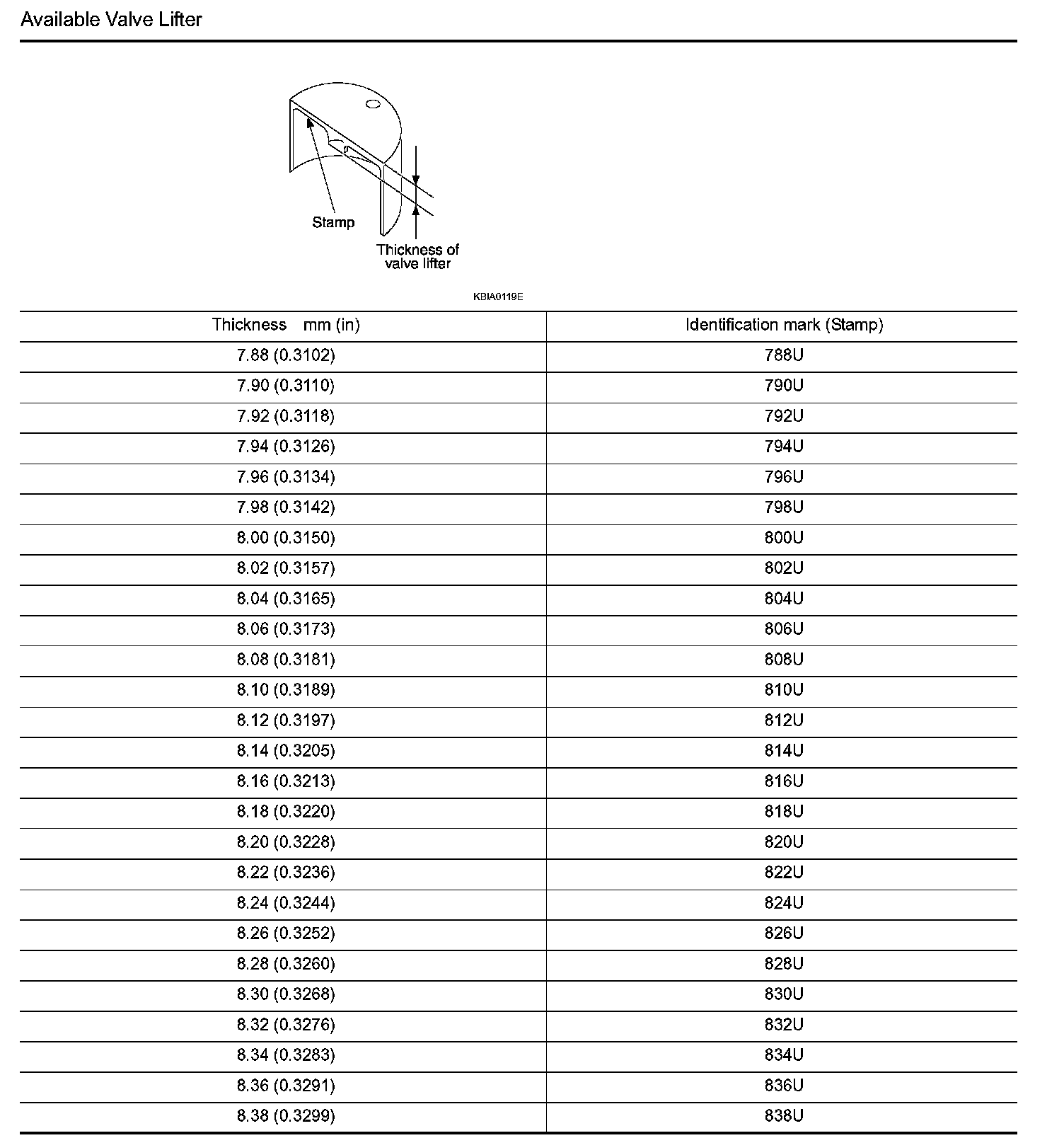

Available Valve Lifter

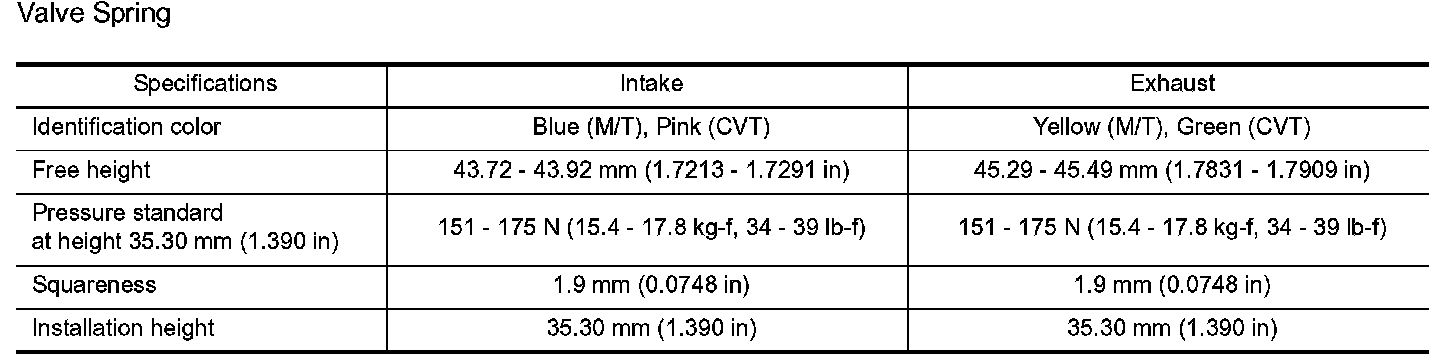

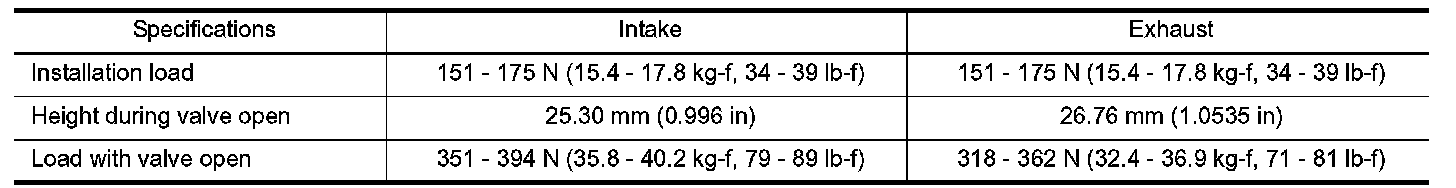

Valve Spring

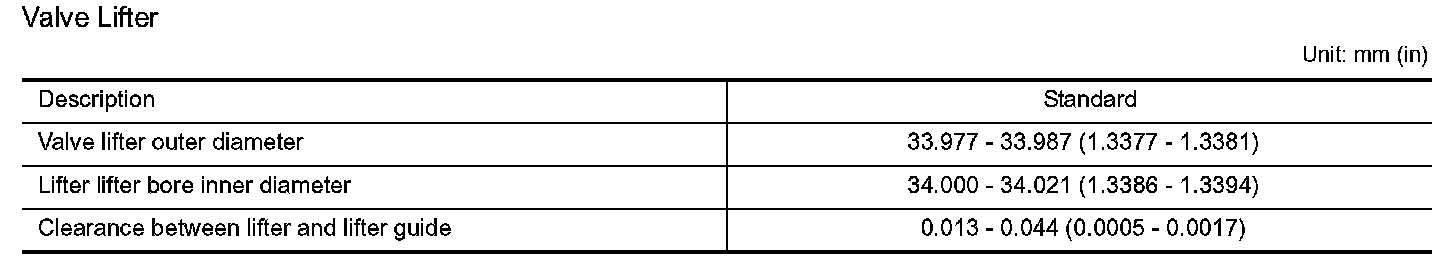

Valve Lifter

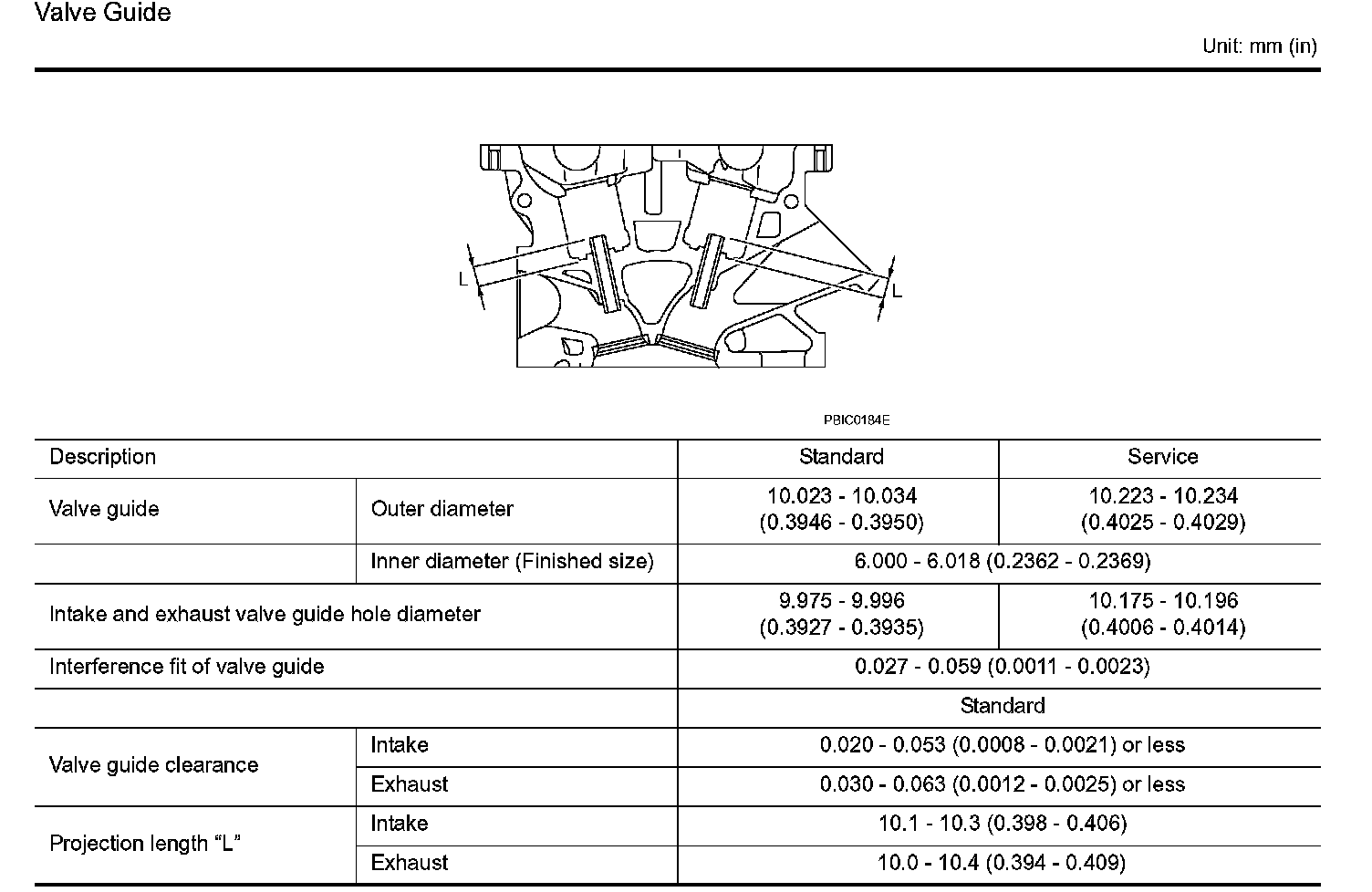

Valve Guide

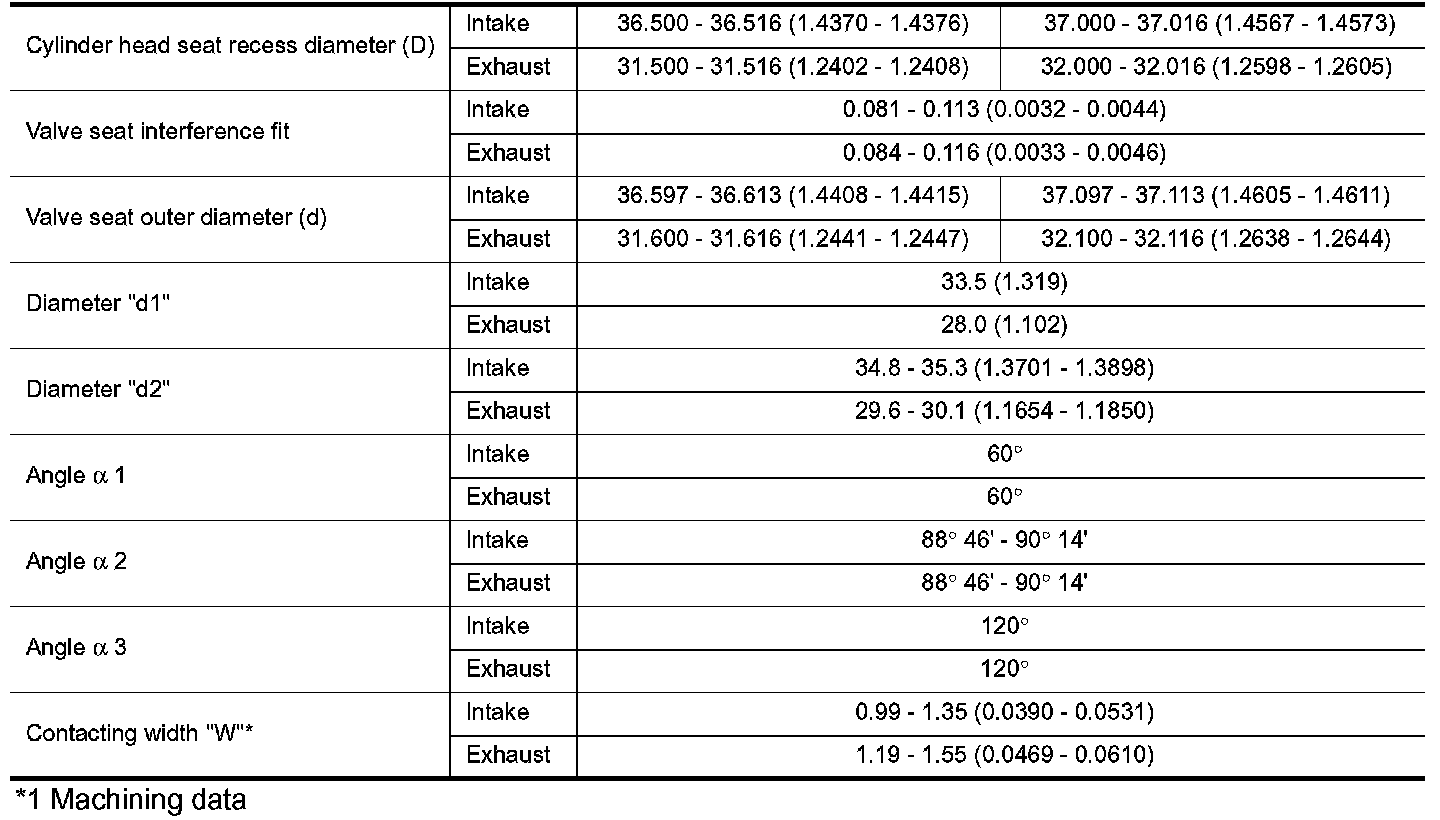

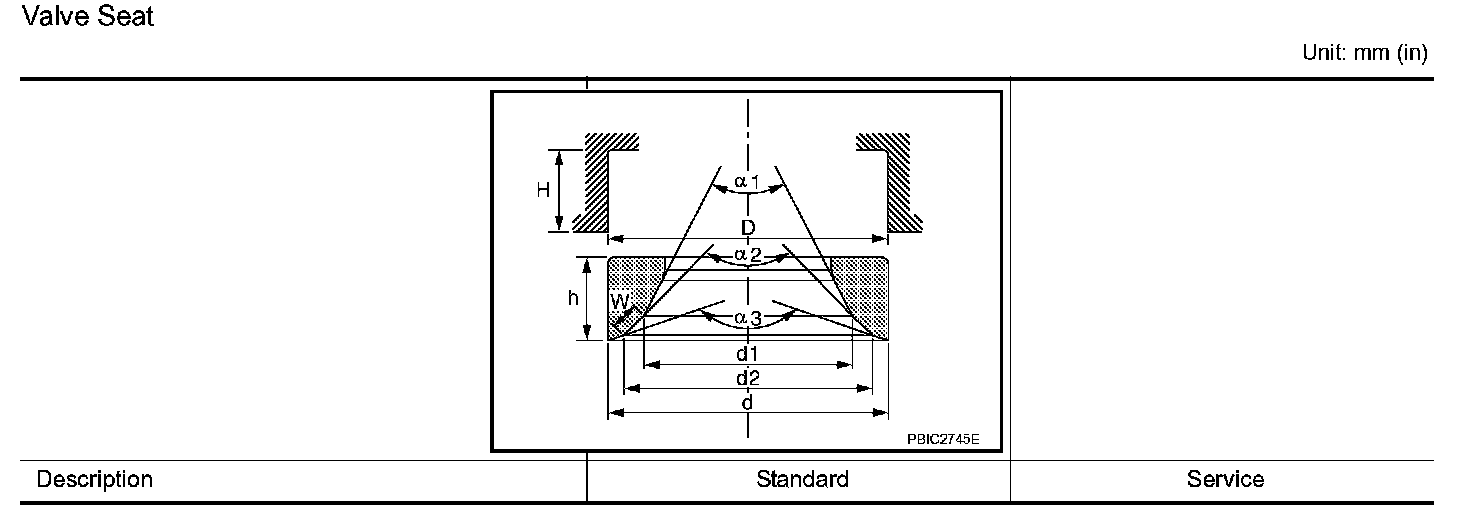

Valve Seat

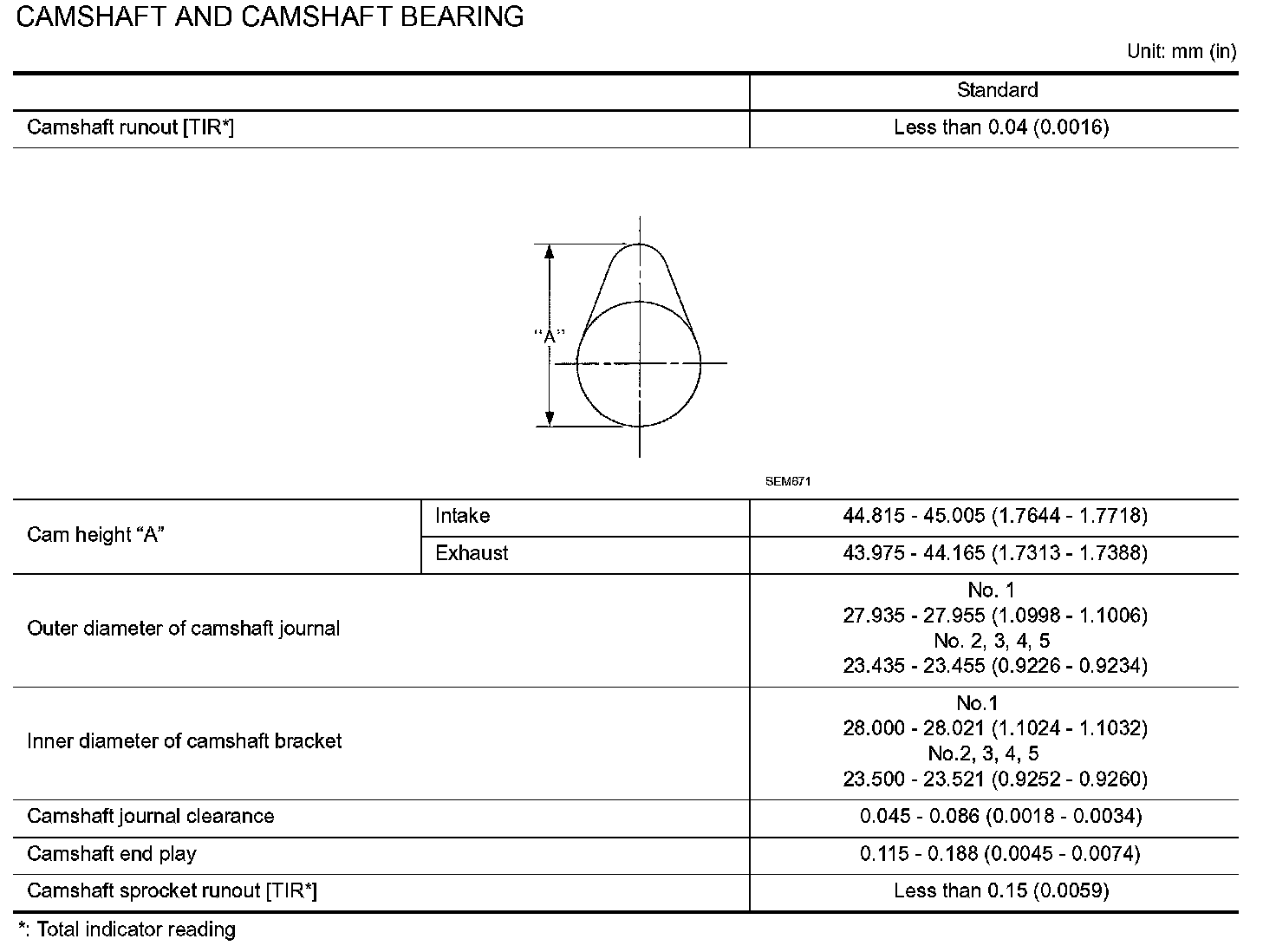

CAMSHAFT AND CAMSHAFT BEARING

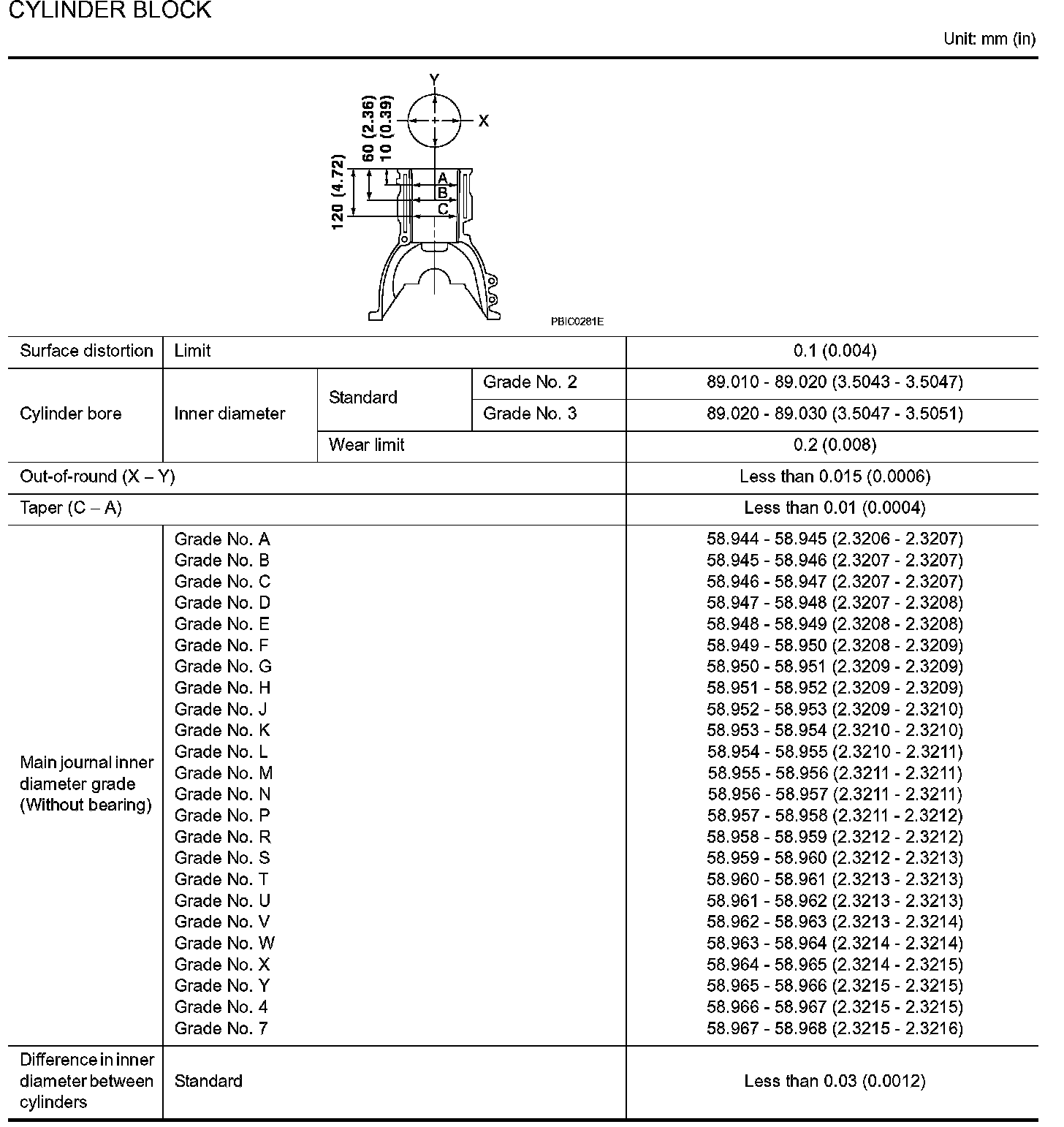

CYLINDER BLOCK

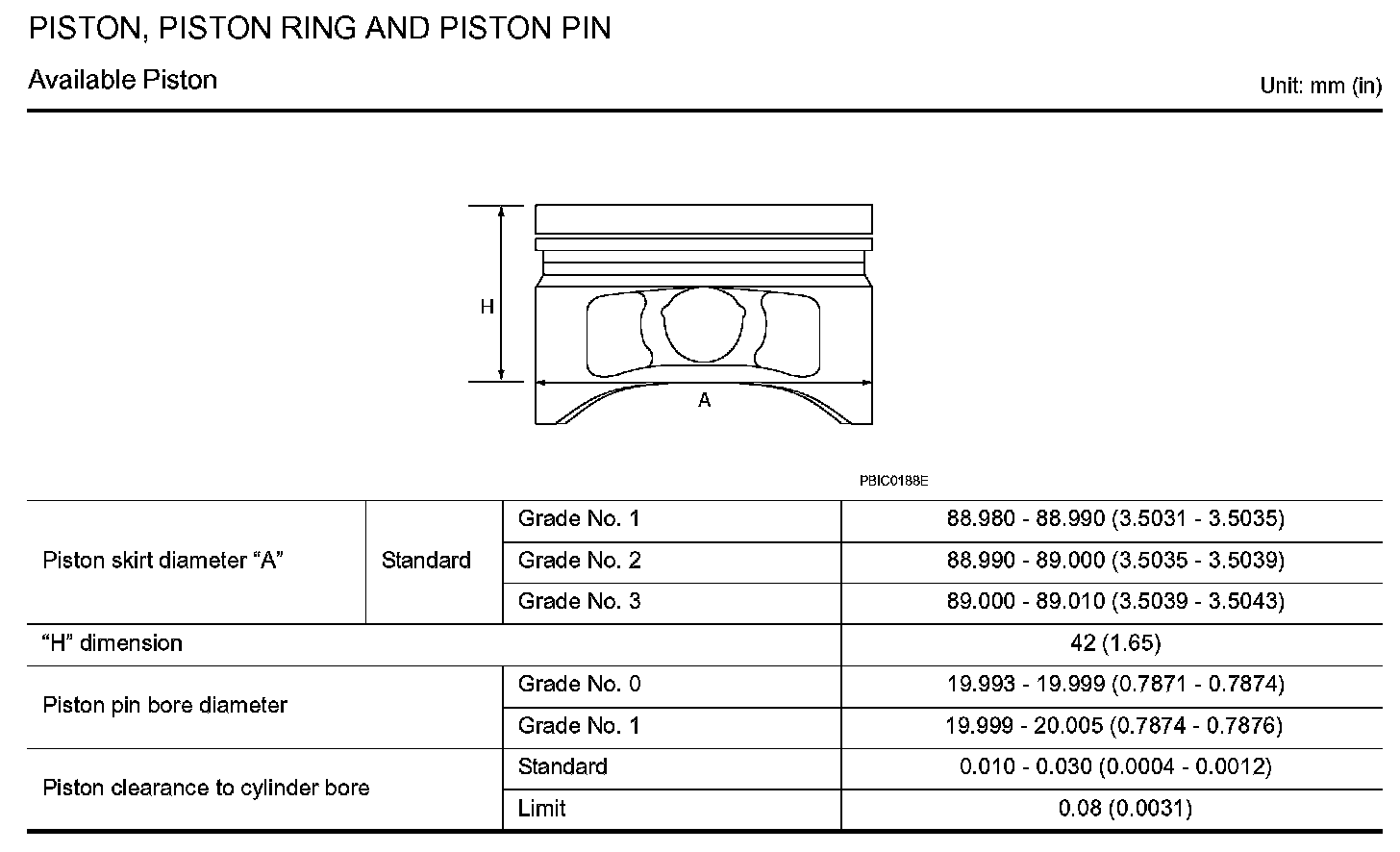

PISTON, PISTON RING, AND PISTON PIN
Available Piston

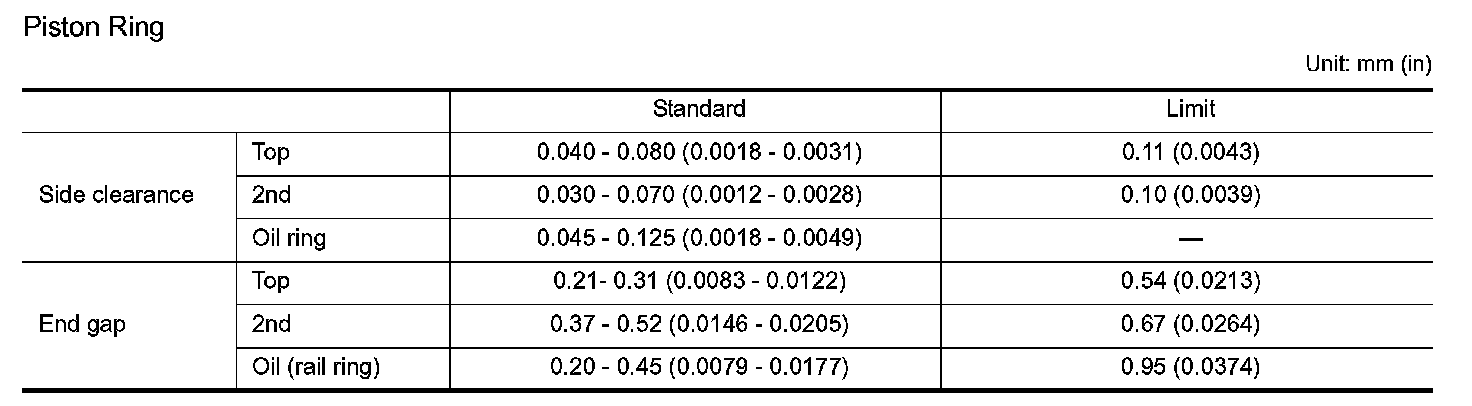

Piston Ring

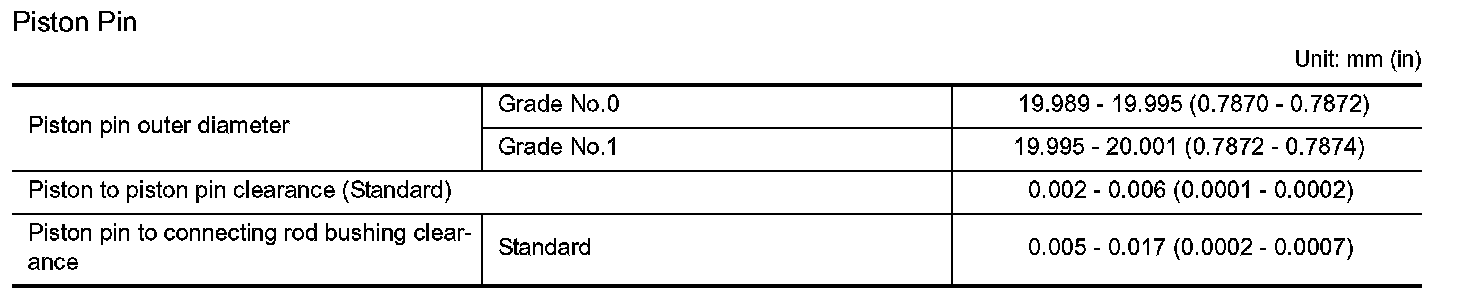

Piston Pin

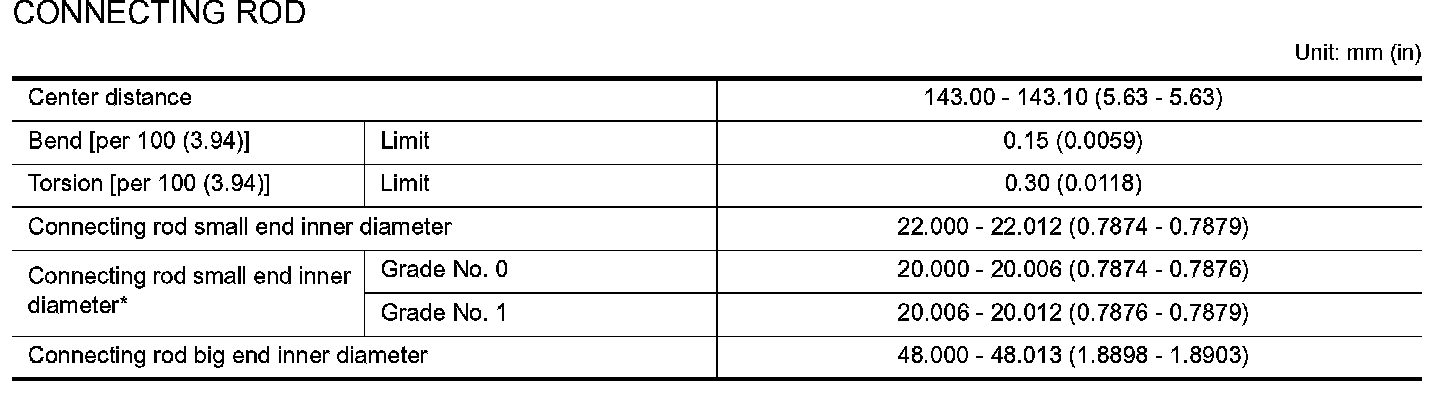

CONNECTING ROD

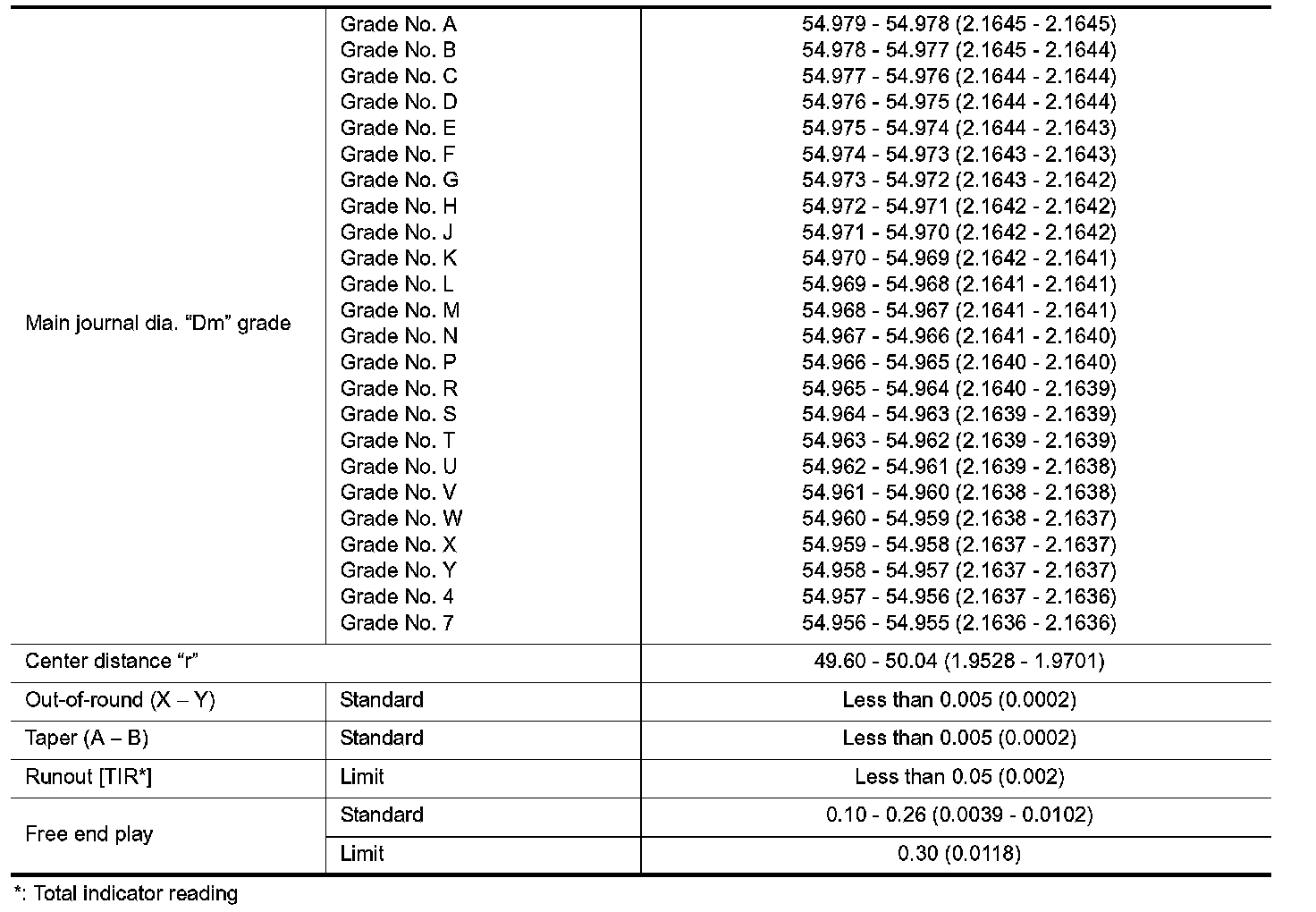

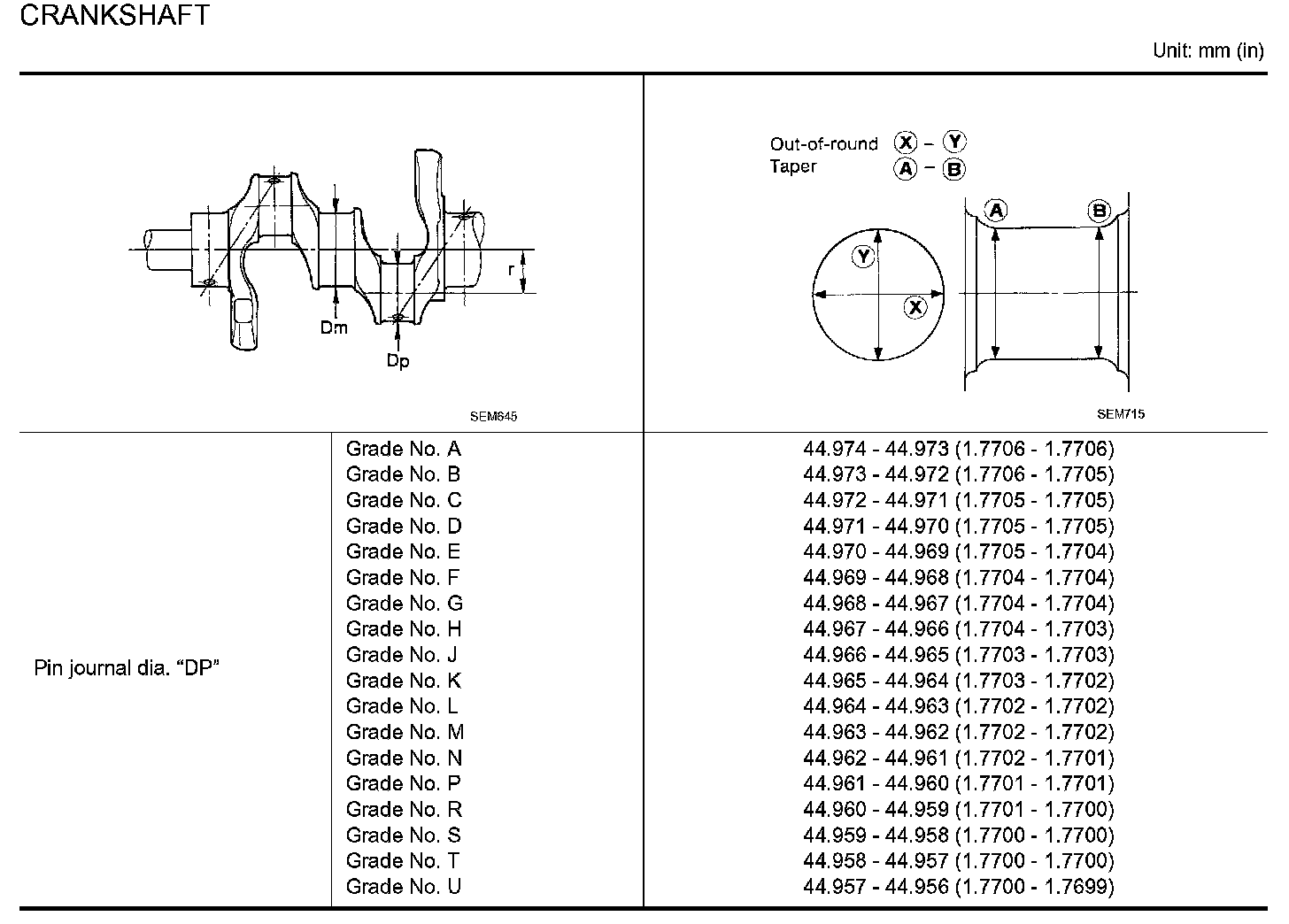

CRANKSHAFT

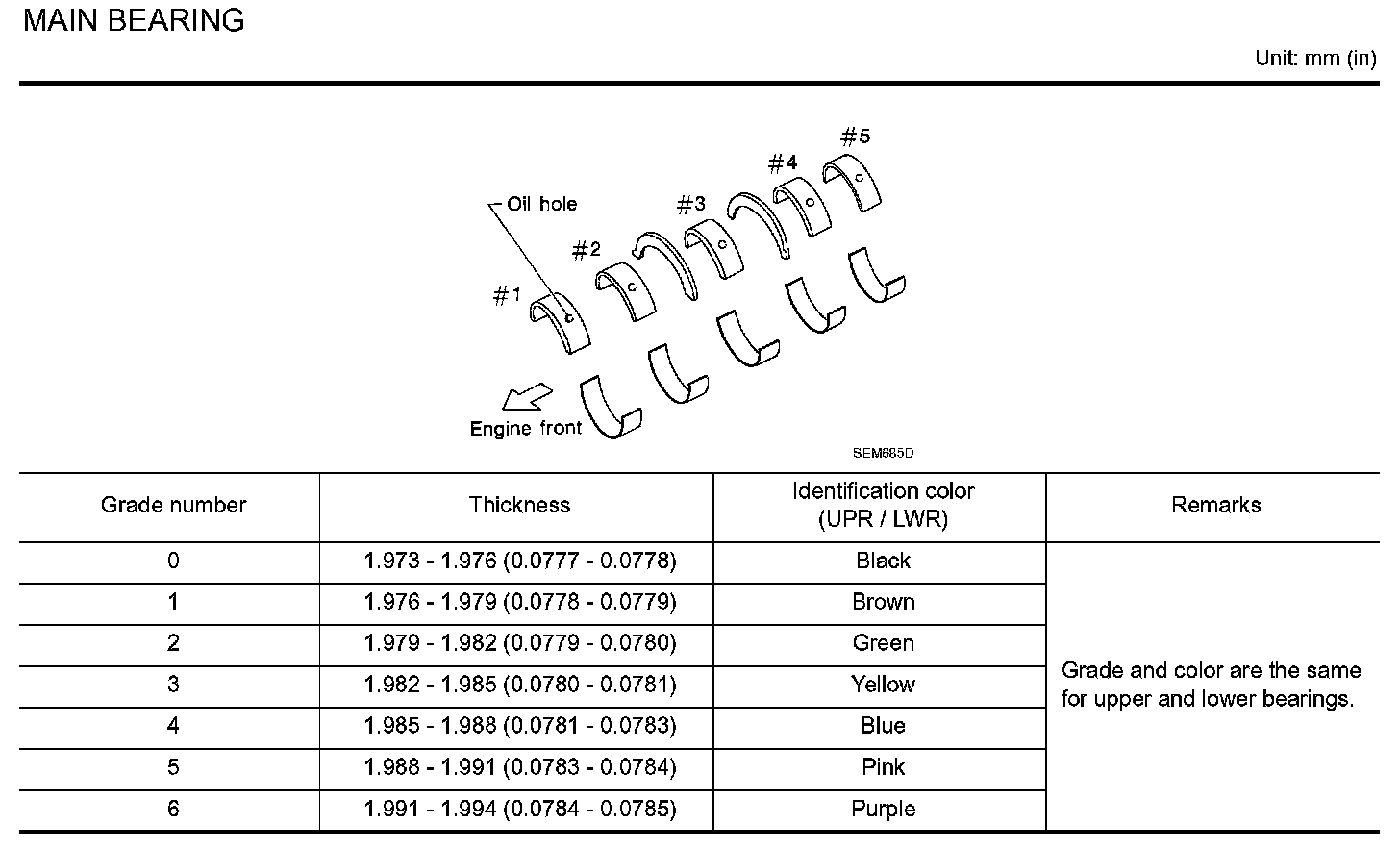

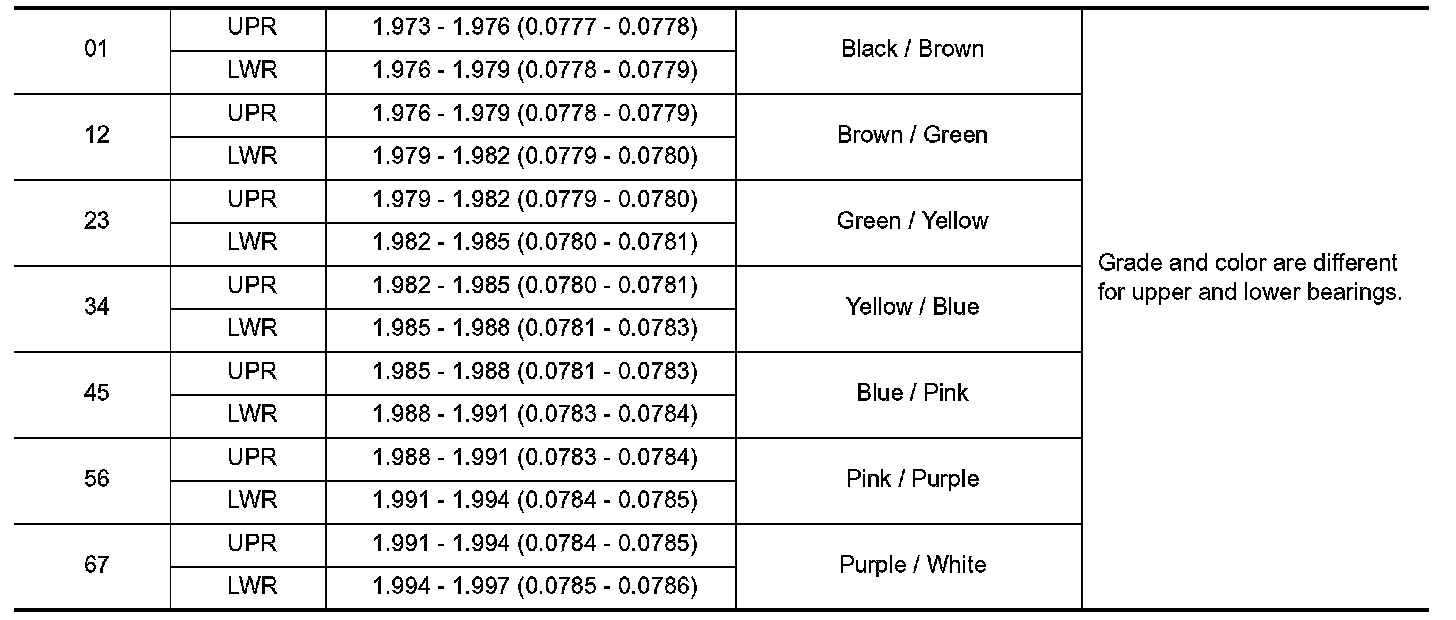

MAIN BEARING

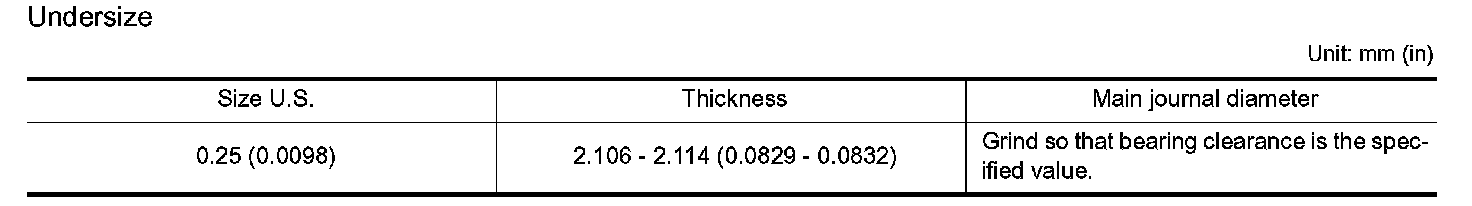

Undersize

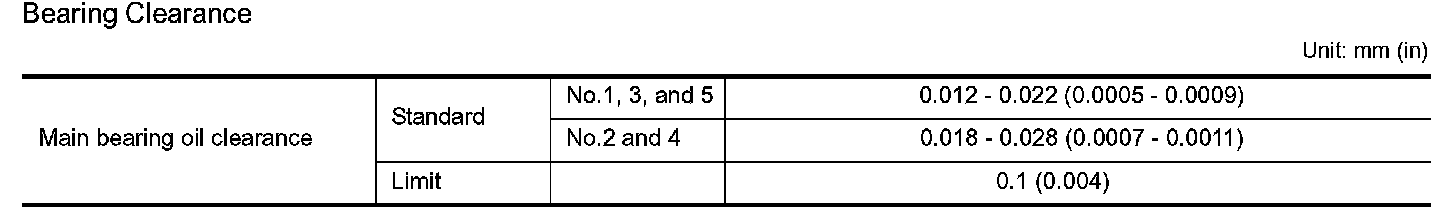

Bearing Clearance

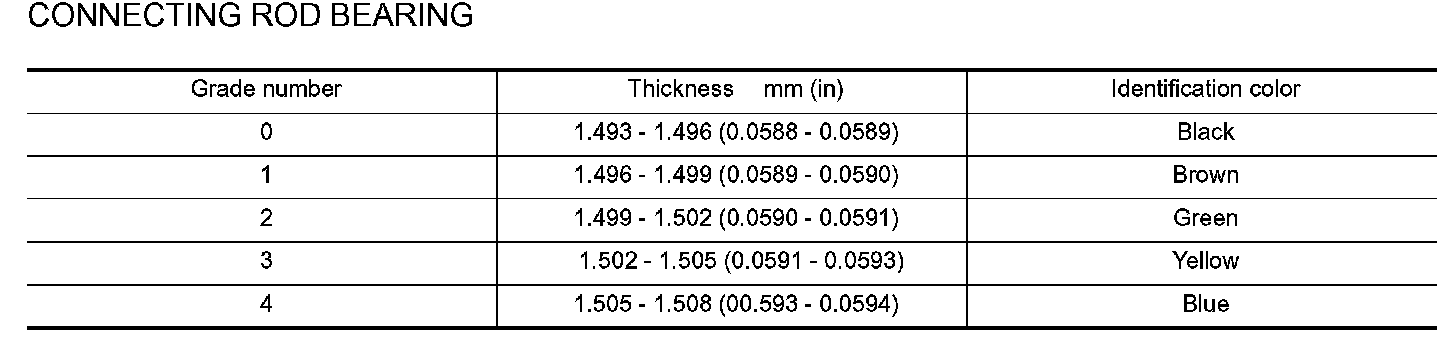

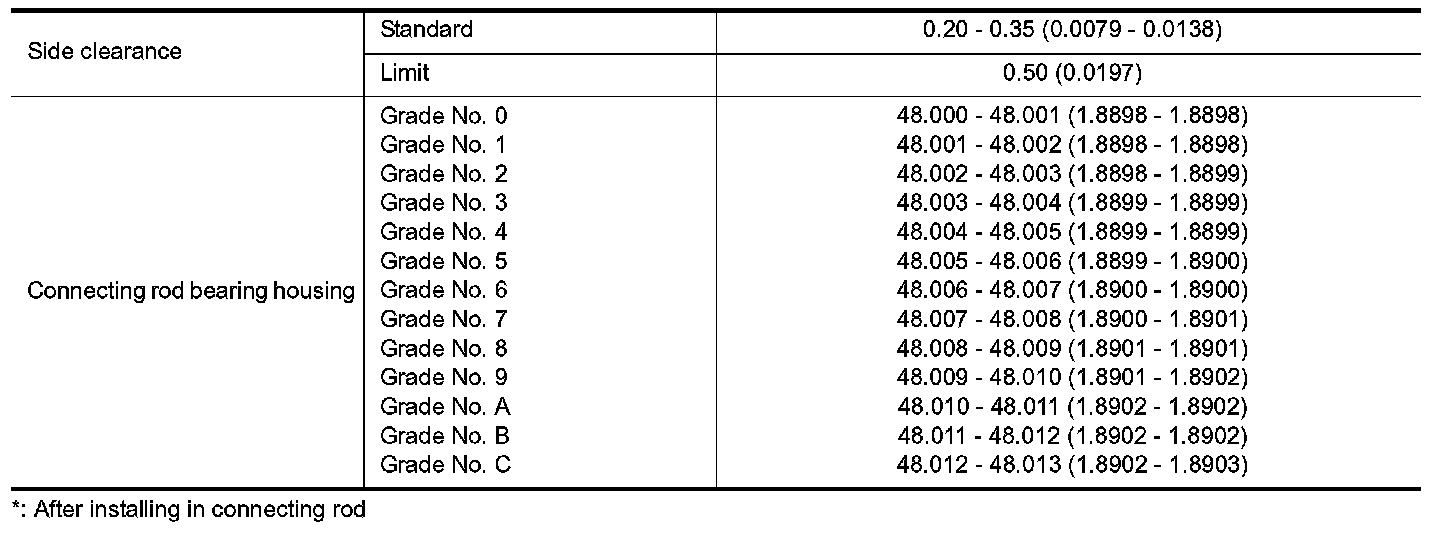

CONNECTING ROD BEARING

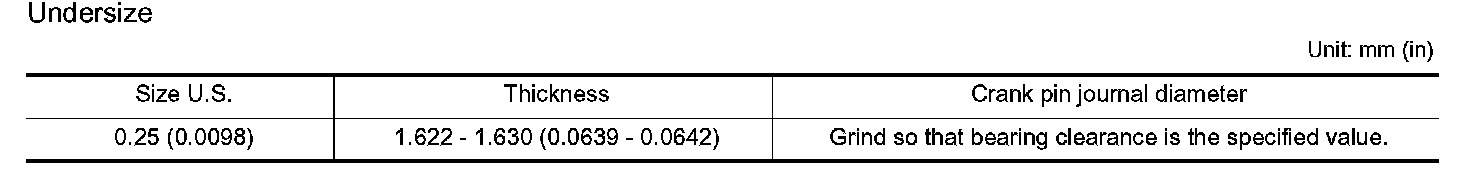

Undersize

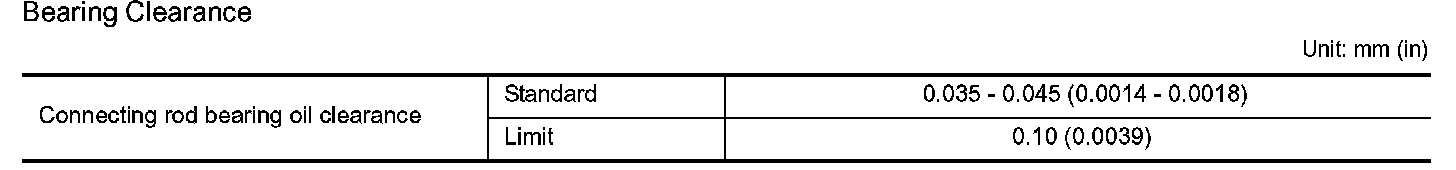

Bearing Clearance

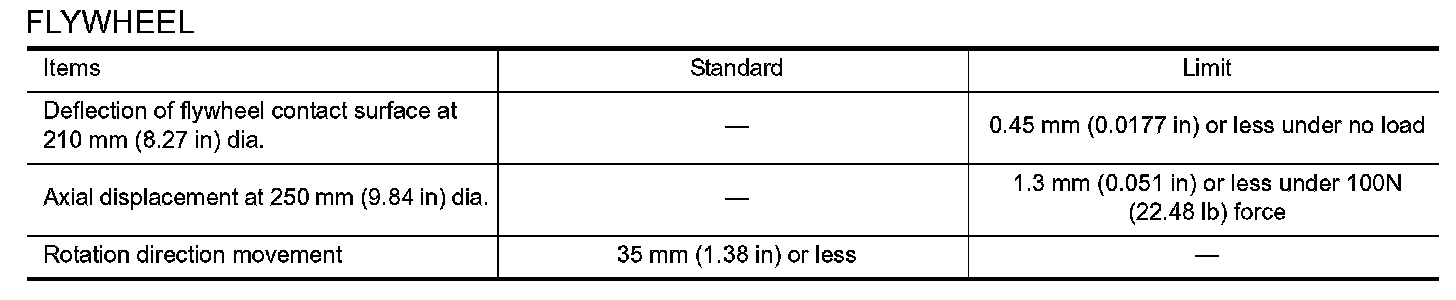

FLYWHEEL
