Scan Tool Testing and Procedures

POWER WINDOW SYSTEM


CONSULT-III Function (BCM)

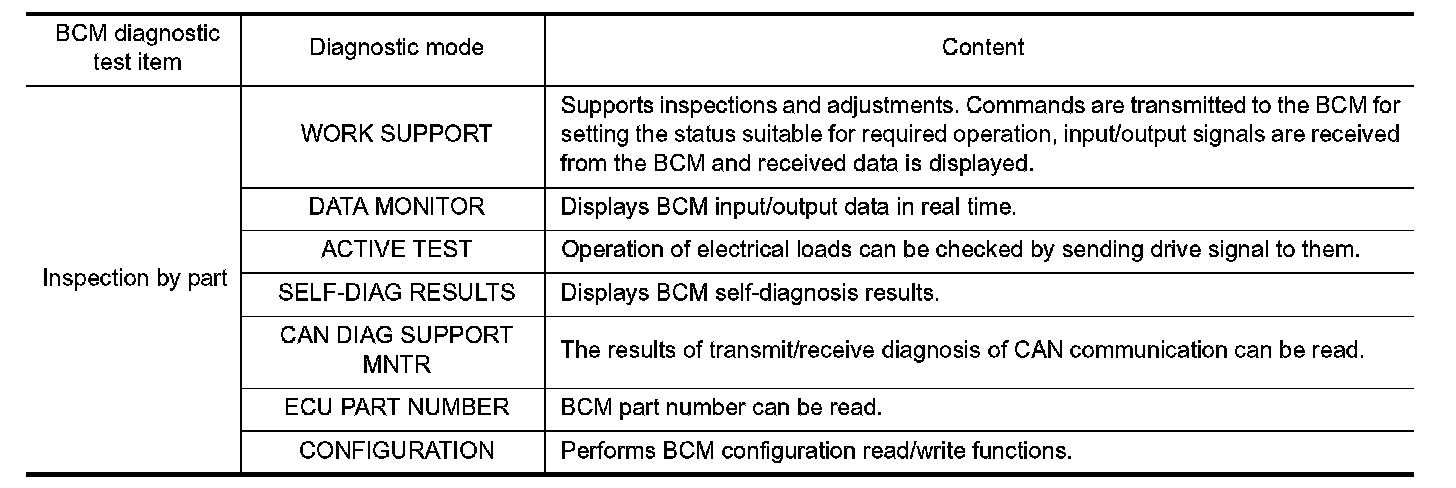

CONSULT-III can display each diagnostic item using the diagnostic test modes shown following.

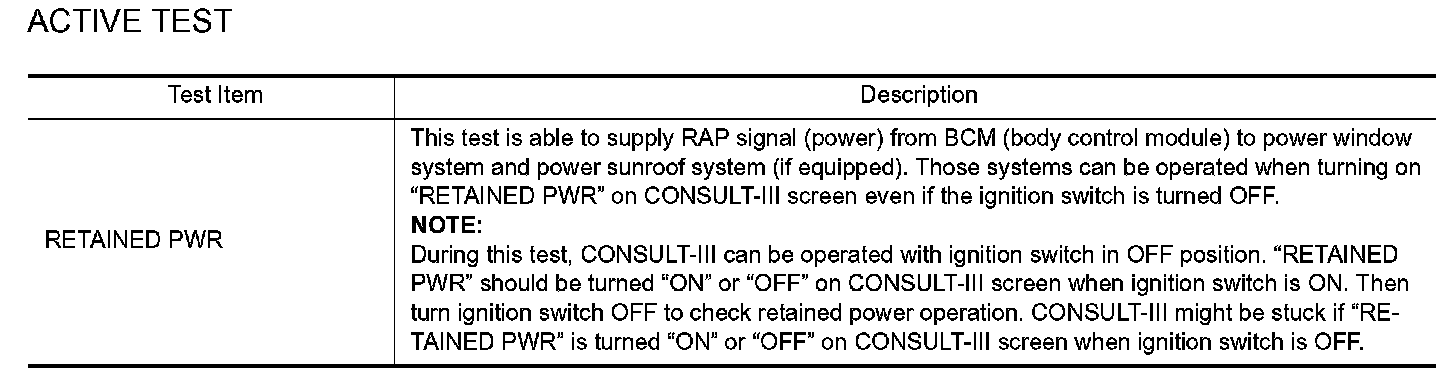

ACTIVE TEST

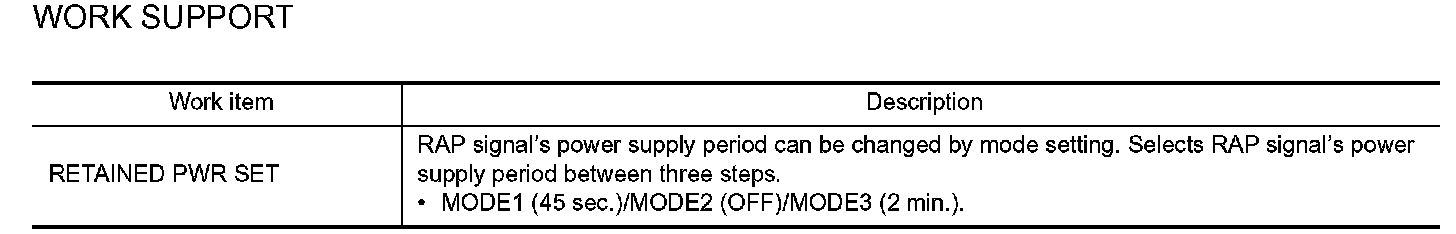

WORK SUPPORT

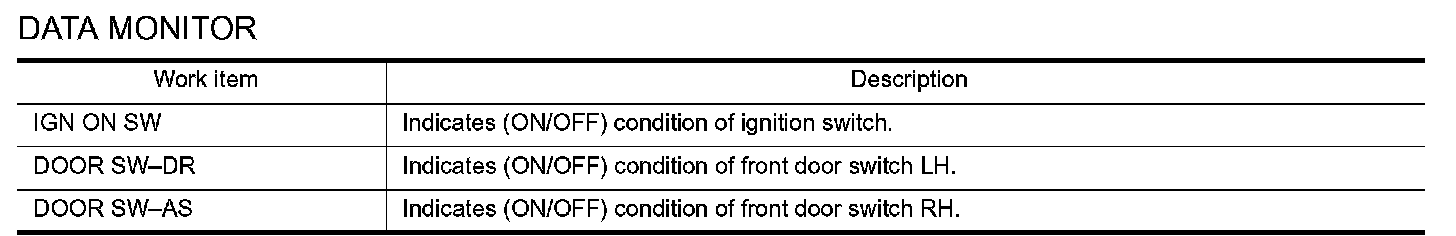

DATA MONITOR
