Home >> Nissan-Datsun >> 2009 >> Sentra L4-2.0L (MR20DE) >> Repair and Diagnosis >> Transmission and Drivetrain >> Manual Transmission/Transaxle >> Shifter M/T >> Service and Repair >> Removal and Replacement >> RS6F94R >> Component Of Control Device And Cable

Component Of Control Device And Cable





CONTROL LINKAGE

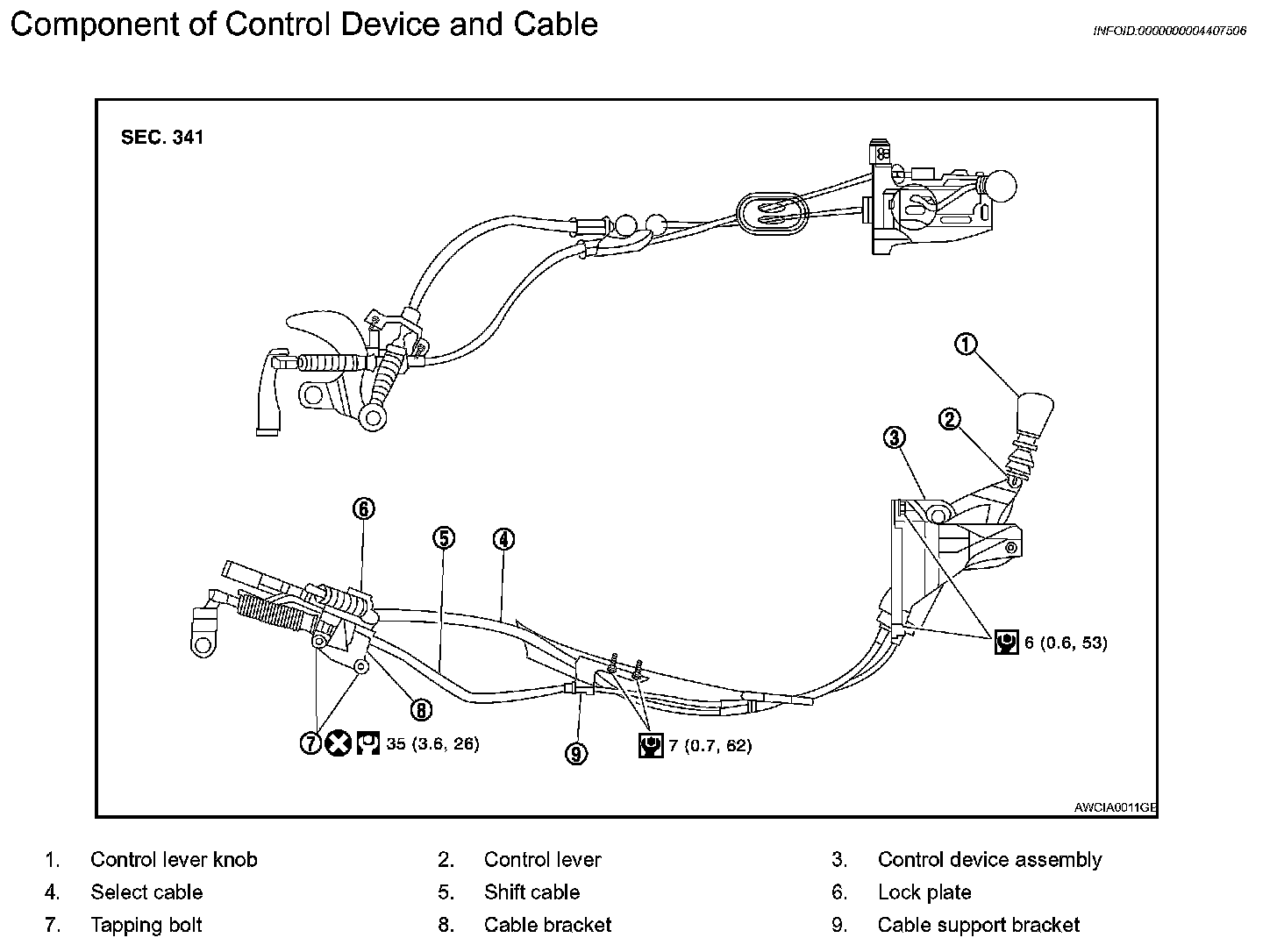

Component of Control Device and Cable
