RS6F52A

SHIFT CONTROL


Disassembly and Assembly


DISASSEMBLY

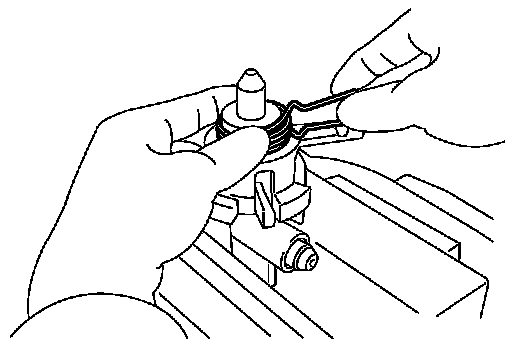

1. Remove return spring to striking rod assembly.






INSPECTION AFTER DISASSEMBLY

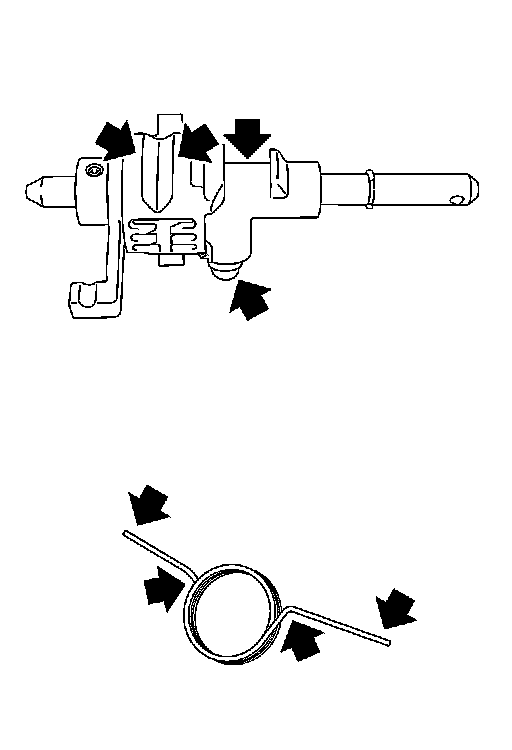

Striking Rod Assembly and Return Spring





- Check contact surfaces and sliding area for wear, damage, bending, etc. If necessary, replace parts.

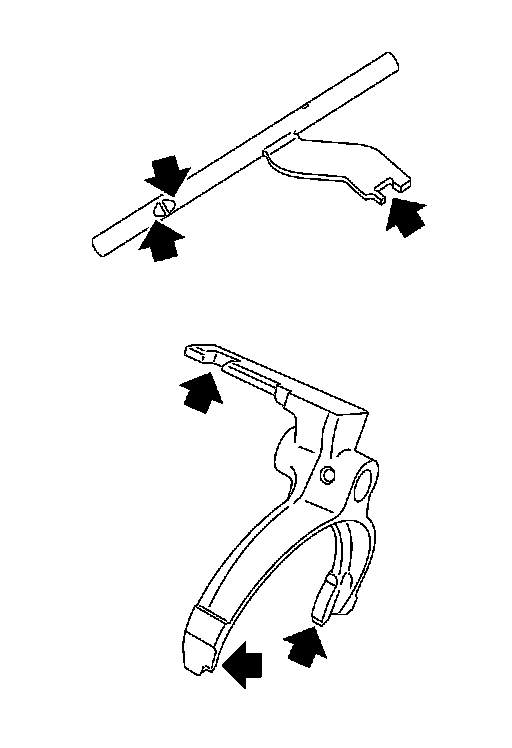

Fork Rod and Shift Fork





- Check contact surfaces and sliding area for wear, damage, bending, etc. If necessary, replace parts.

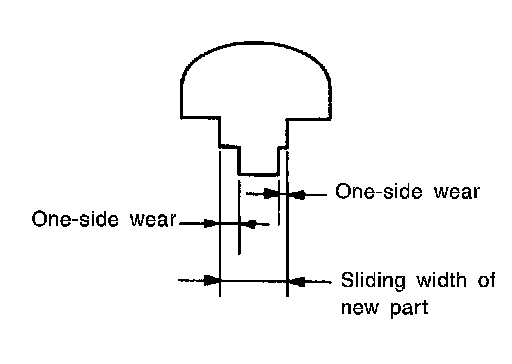

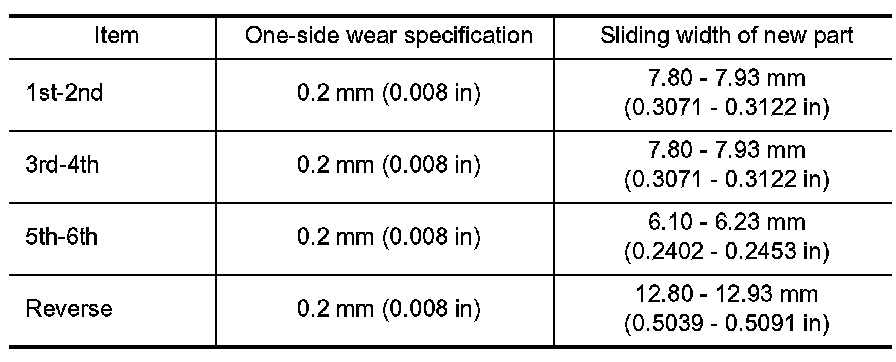

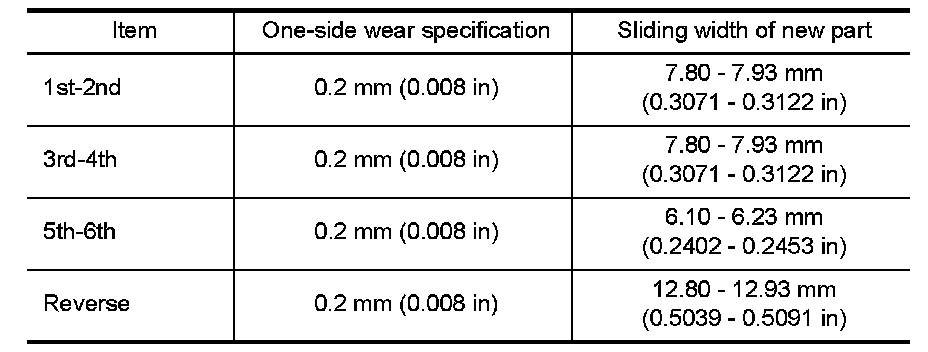

- Check if the width of shift fork hook (sliding area with coupling sleeve) is within allowable specification below.











ASSEMBLY

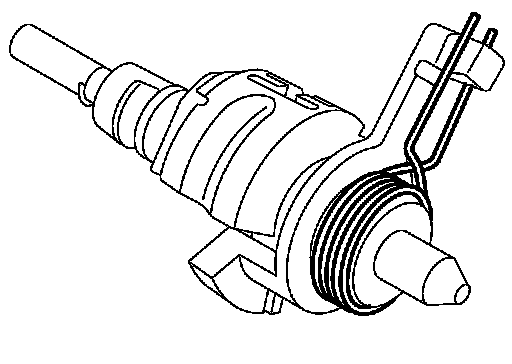

1. Temporarily install return spring to striking rod assembly.






CAUTION:
Be careful with the orientation of return spring.

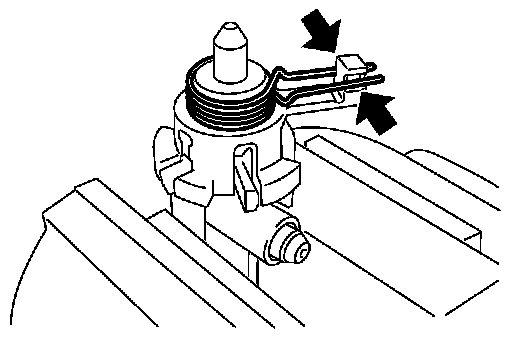

2. Attach one end of the return spring to striking interlock of striking rod assembly while holding return spring.






CAUTION:

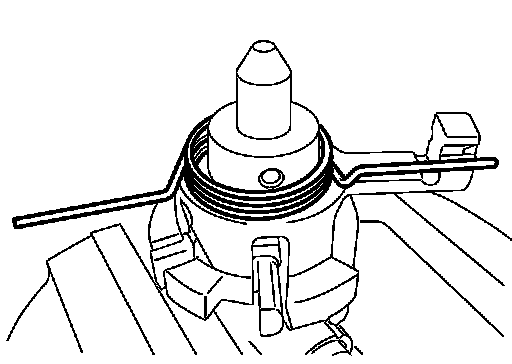

- When installing, check that return spring is securely seated in the groove of striking interlock of striking rod assembly.
