Air Breather Hose

AIR BREATHER HOSE


Removal and Installation

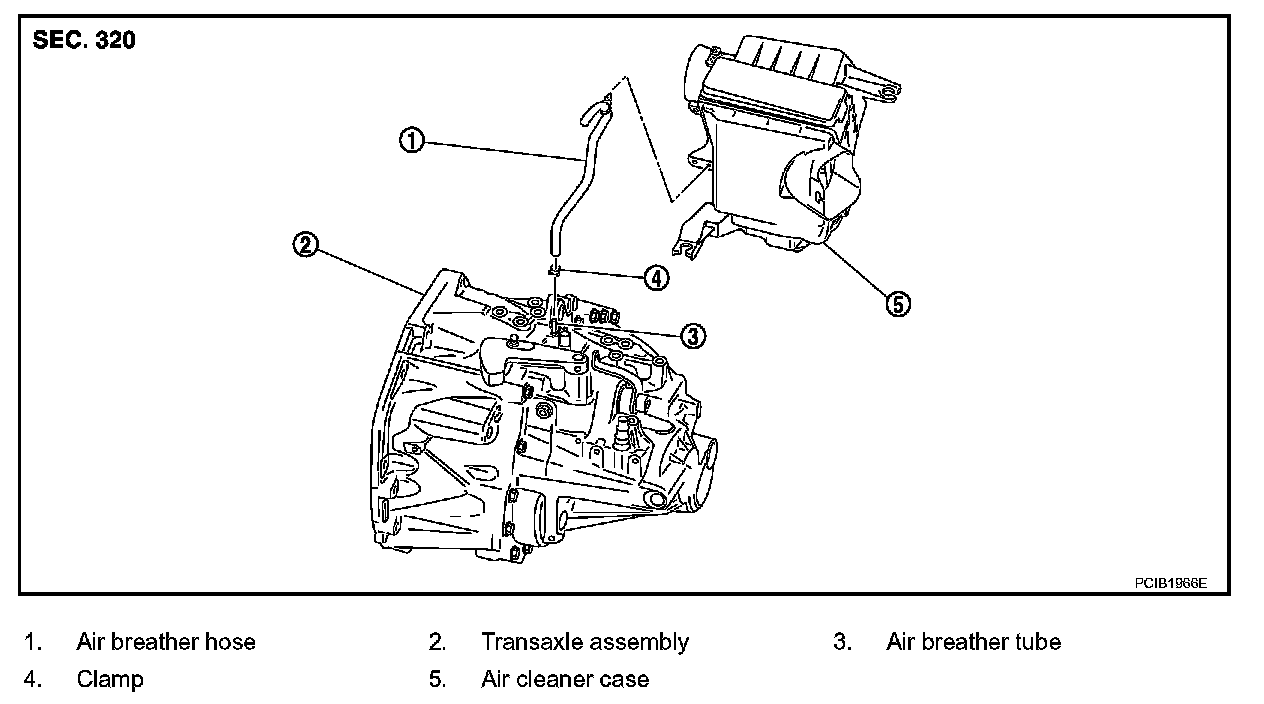

Refer to the figure for air breather hose removal and installation information.






CAUTION:
- Make sure there are no pinched or restricted areas on the air breather hose caused by bending or winding when installing it.
- Be sure to insert air breather hose into air breather tube until hose end reaches the tube's base.
- Set air breather hose with painted mark facing forward.
- Install air breather hose to air cleaner case by fully inserting the clip.
