Removal And Installation

SIDE OIL SEAL


Removal and Installation


REMOVAL
1. Remove front drive shafts from transaxle assembly. Refer to Removal and Installation (Left Side) and Removal and Installation (Right Side).





2. Remove differential side oil seal (1) using a suitable tool.

CAUTION:
Do not damage transaxle case and clutch housing.

INSTALLATION
Installation is in the reverse order of removal.

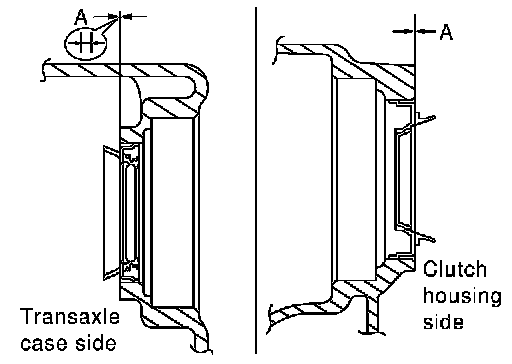

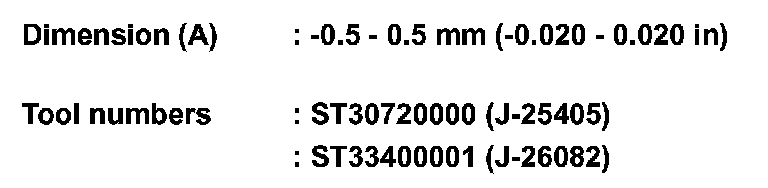

- Install differential side oil seal to clutch housing and transaxle case to the specified dimension (A) using Tools.






CAUTION:
Do not reuse oil seal.
- Check oil level after installation. Refer to Changing M/T Oil RS6F52A.
