Torque Converter: Service and Repair

REPAIR FOR COMPONENT PARTS


Torque Converter and Converter Housing Oil Seal

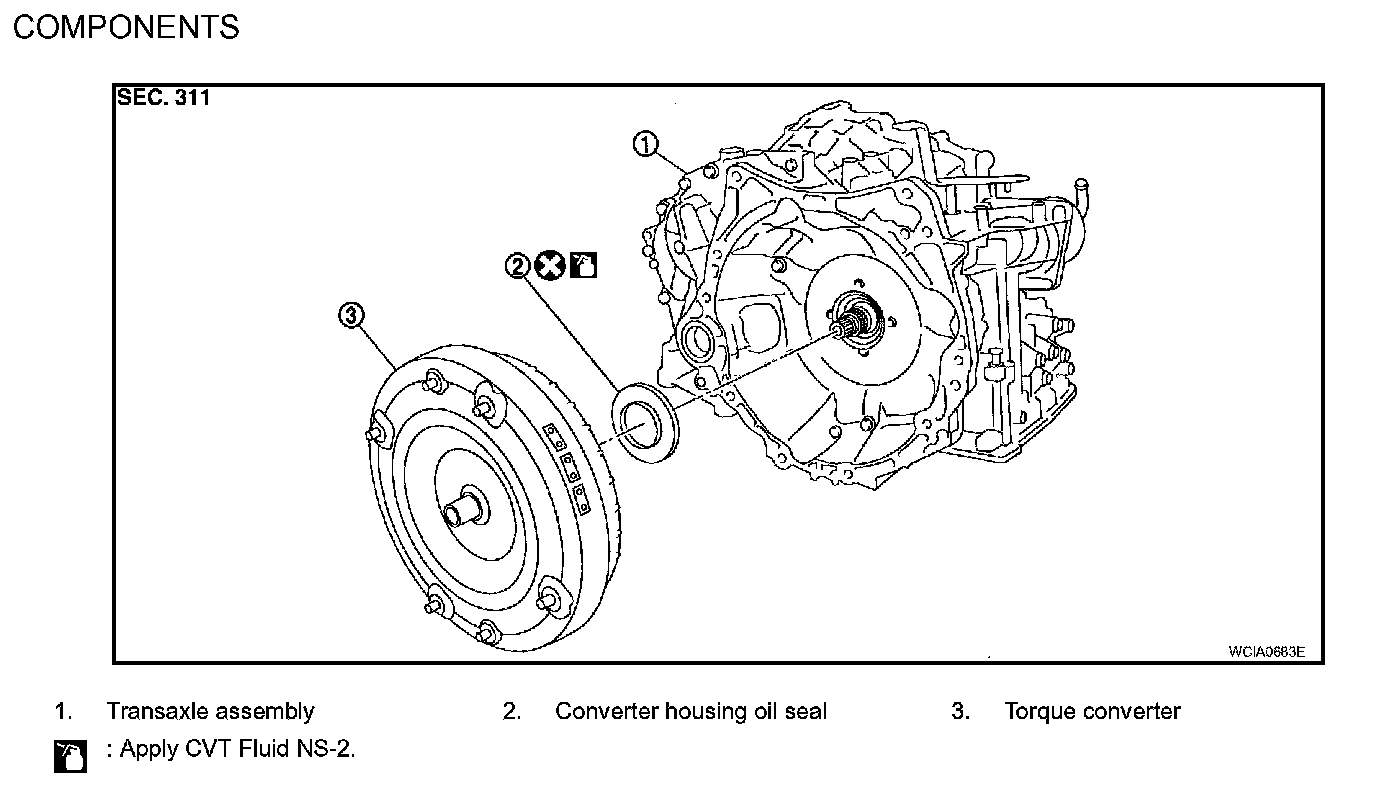

COMPONENTS






Disassembly
1. Remove torque converter.
2. Remove the converter housing oil seal using suitable tool.

CAUTION:
Do not scratch converter housing.

Assembly

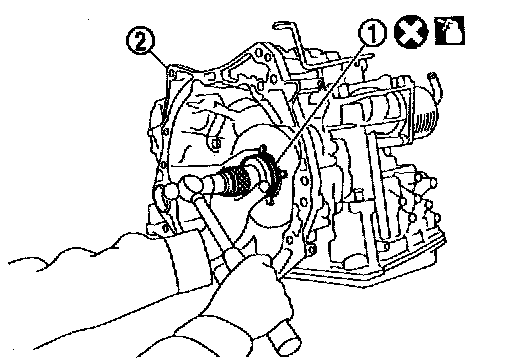

1. Drive the converter housing oil seal (1) in evenly using suitable tool as shown.





- CVT (2)

CAUTION:
- Do not reuse converter housing oil seal.
- Apply CVT fluid to converter housing oil seal.
