CVT Indicator





CVT INDICATOR


Wiring Diagram - CVTIND -

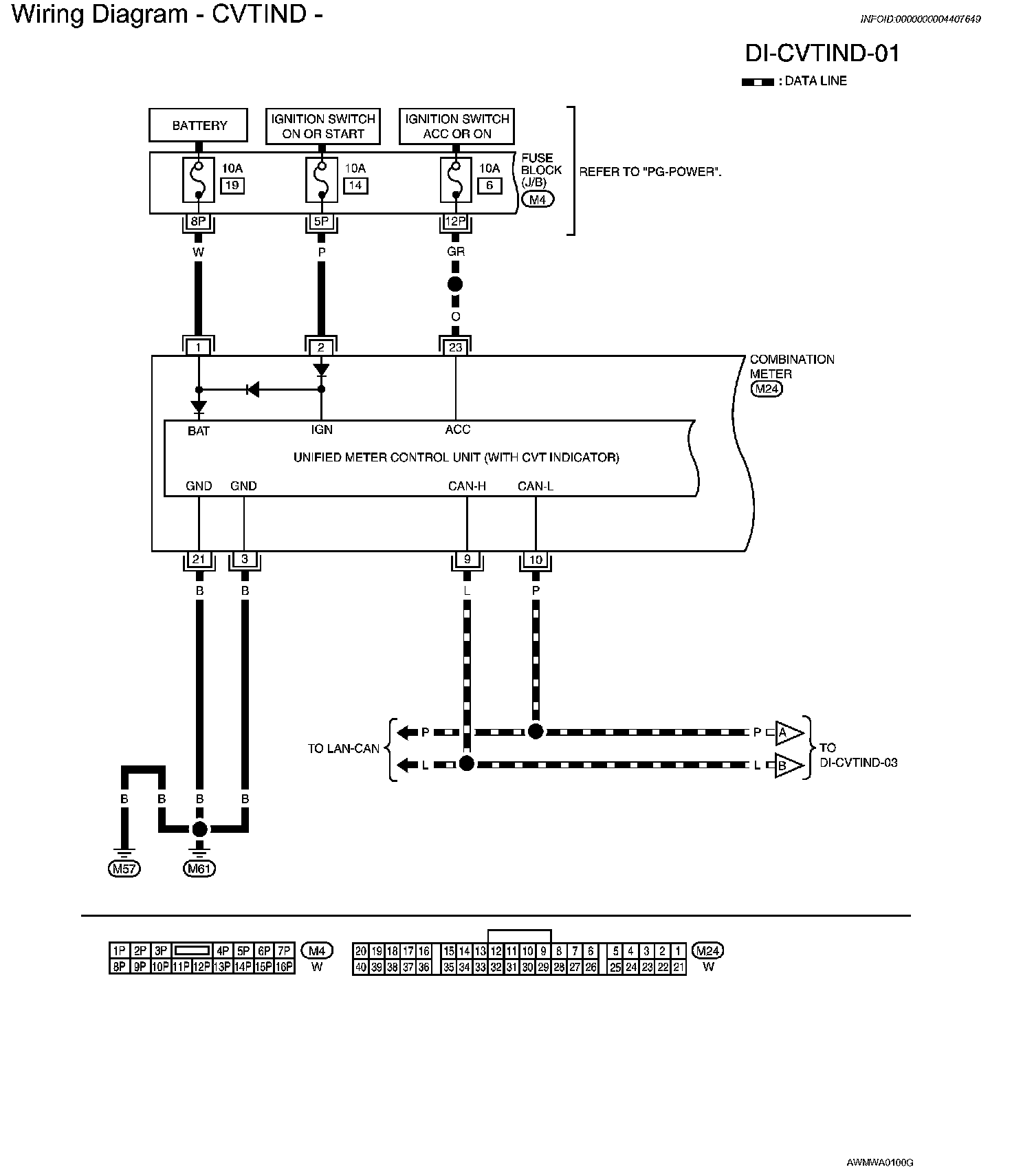

DI-CVTIND-01:






DI-CVTIND-02:

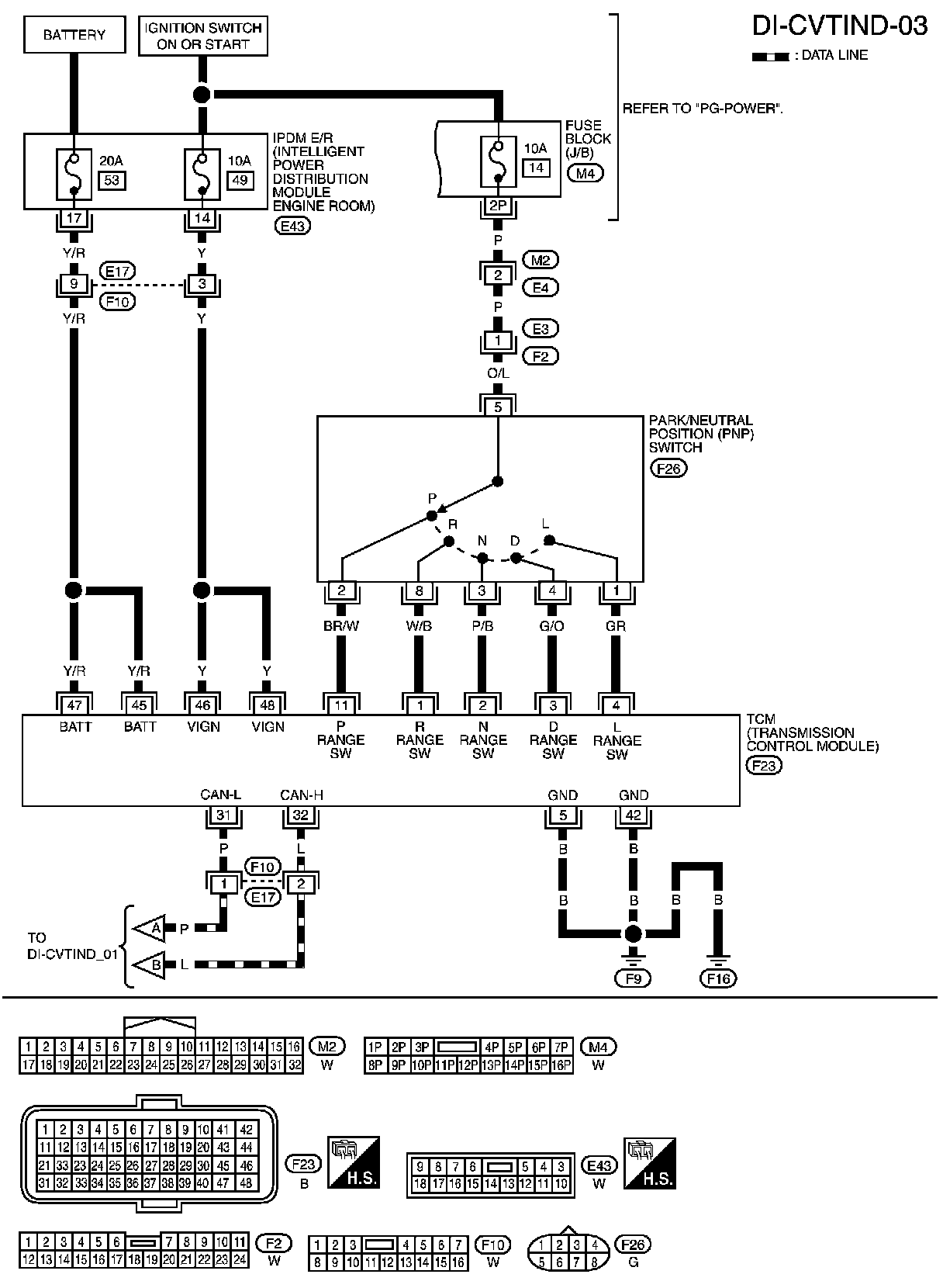

DI-CVTIND-03:
