EPS Control Unit Input/Output Signal Reference Value





TROUBLE DIAGNOSIS


EPS Control Unit Input/Output Signal Reference Value


SPECIFICATIONS WITH CONSULT-III

CAUTION:
The output signal indicates the EPS control unit calculation date. The normal values will be displayed even in the event that the output circuit (harness) is open.

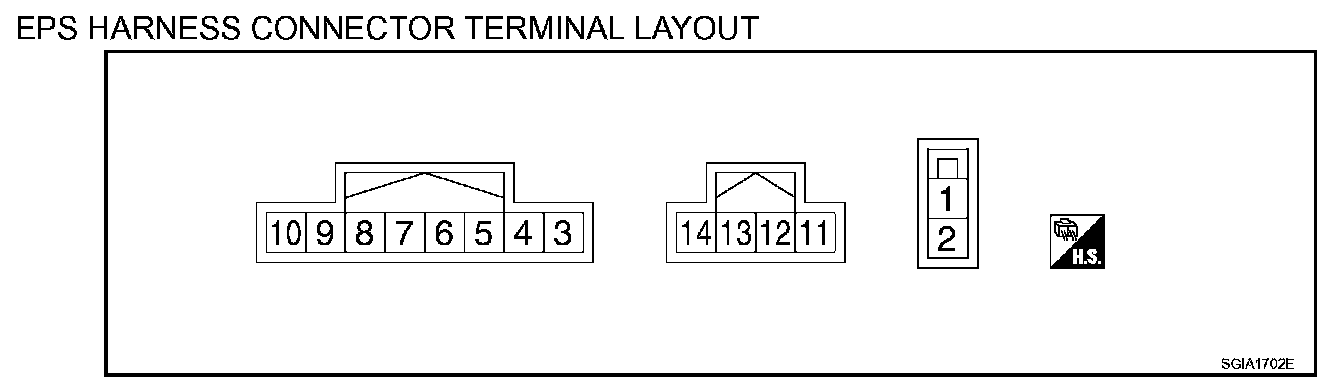

EPS HARNESS CONNECTOR TERMINAL LAYOUT

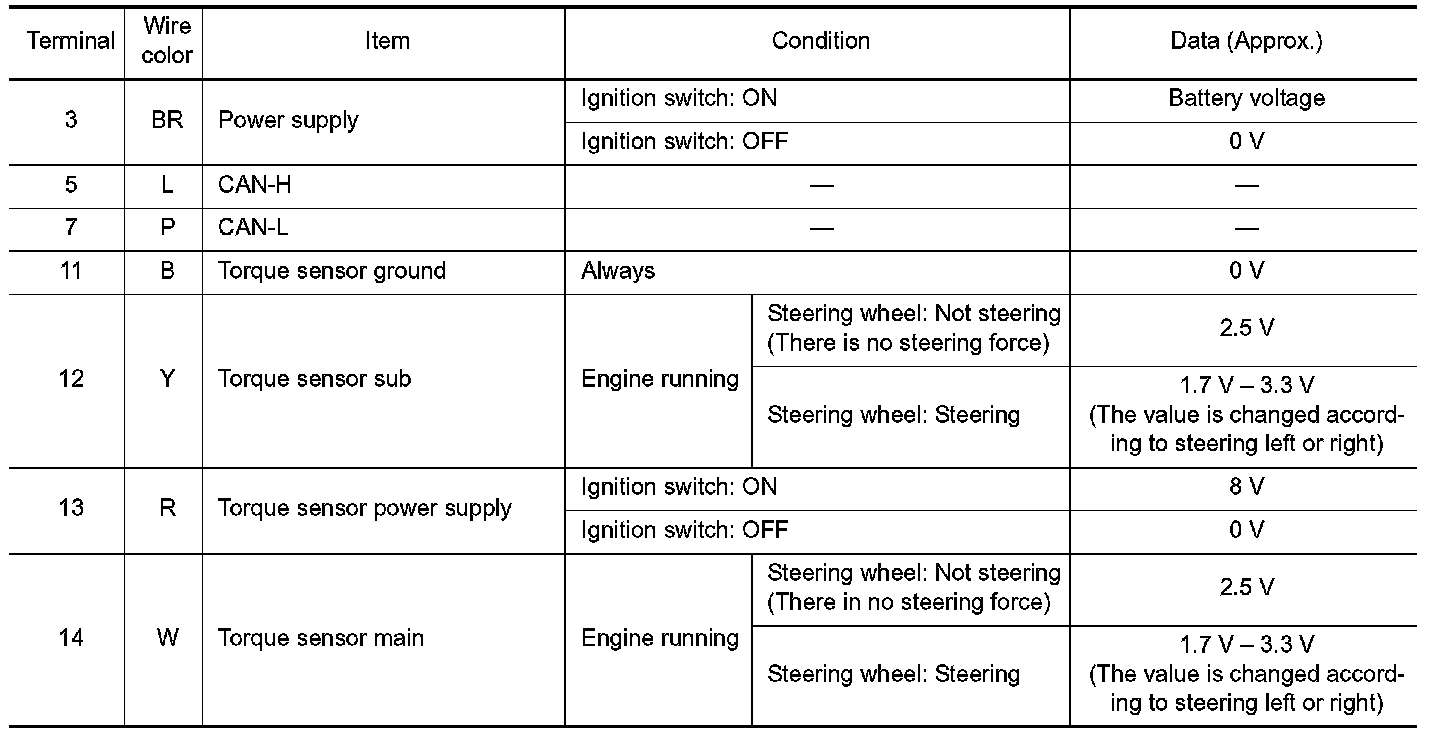

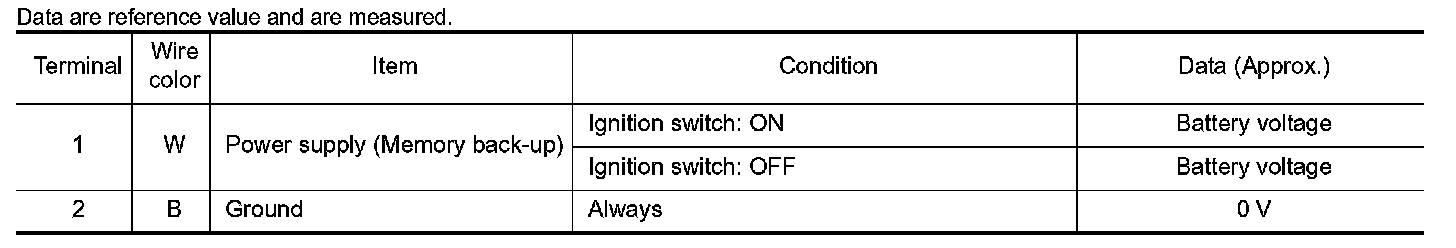

TERMINALS AND REFERENCE VALUES FOR EPS CONTROL UNIT











CAUTION: When using a circuit tester to measure voltage for inspection, be sure not to extend forcibly any connector terminals.
