Intake Manifold

Intake Manifold

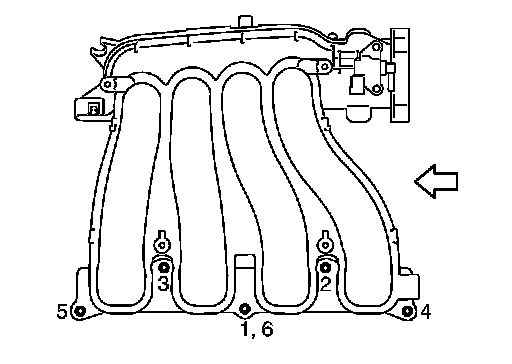

Except For California

Torque: 19.6 N.m (2.0 Kg-m, 14 ft-lb)






Tighten bolts in numerical order as shown.

Arrow Indicates Engine front

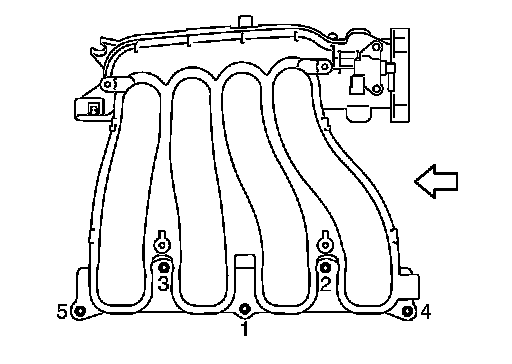

For California


Torque: 19.6 N.m (2.0 Kg-m, 14 ft-lb)






Loosen bolts in reverse order as shown.

Arrow Indicates Engine Front
