System Specifications

SERVICE DATA AND SPECIFICATIONS (SDS)

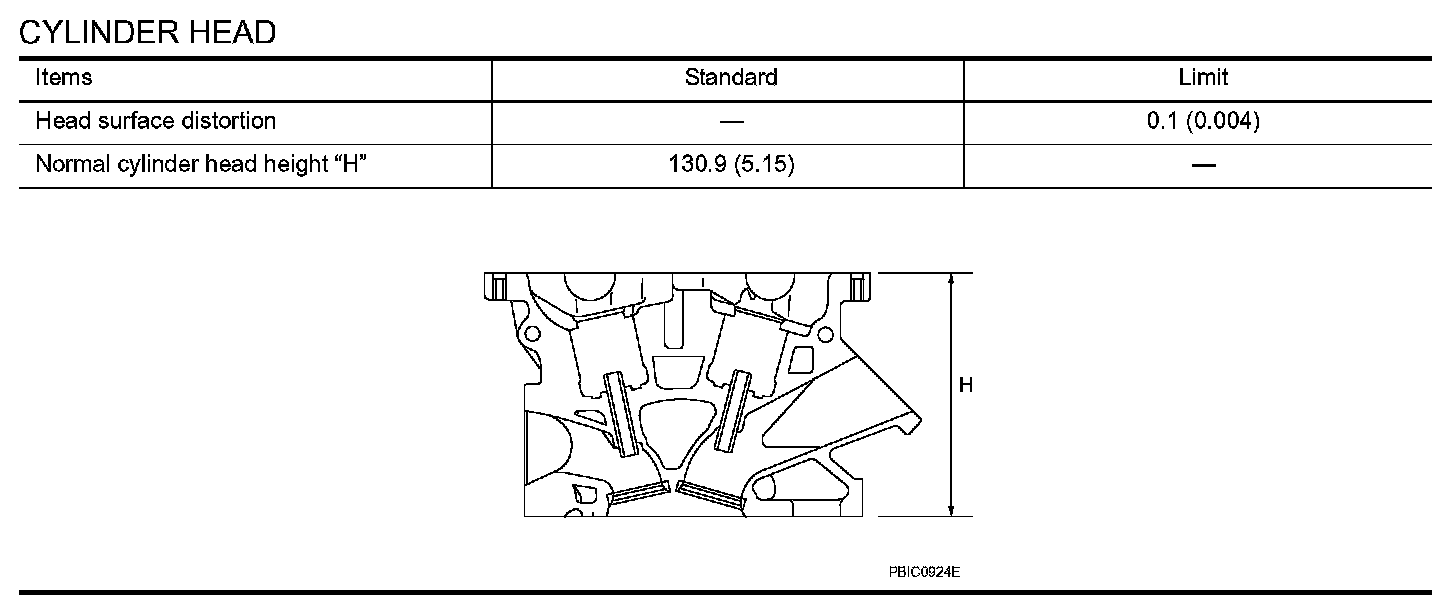

CYLINDER HEAD

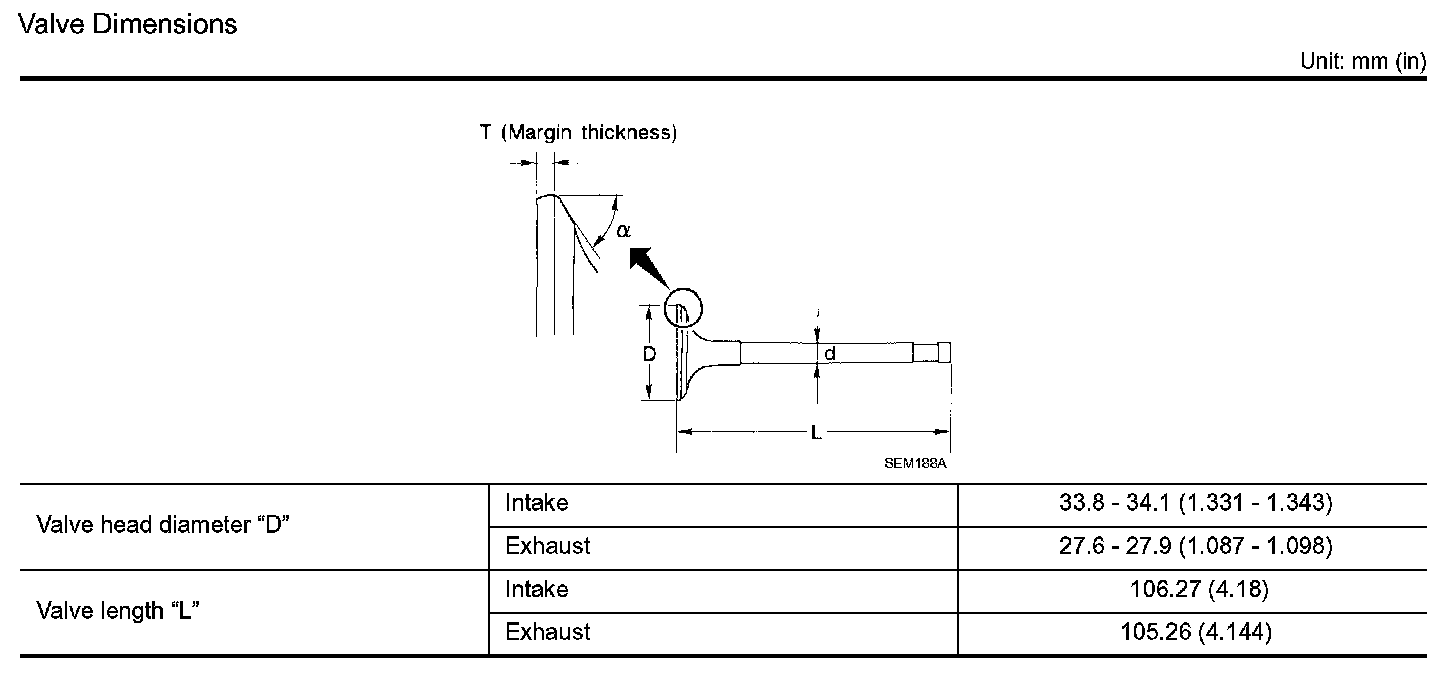

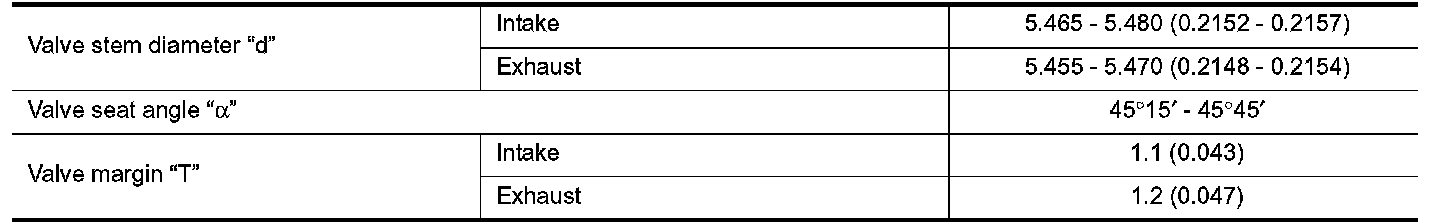

Valve Dimensions

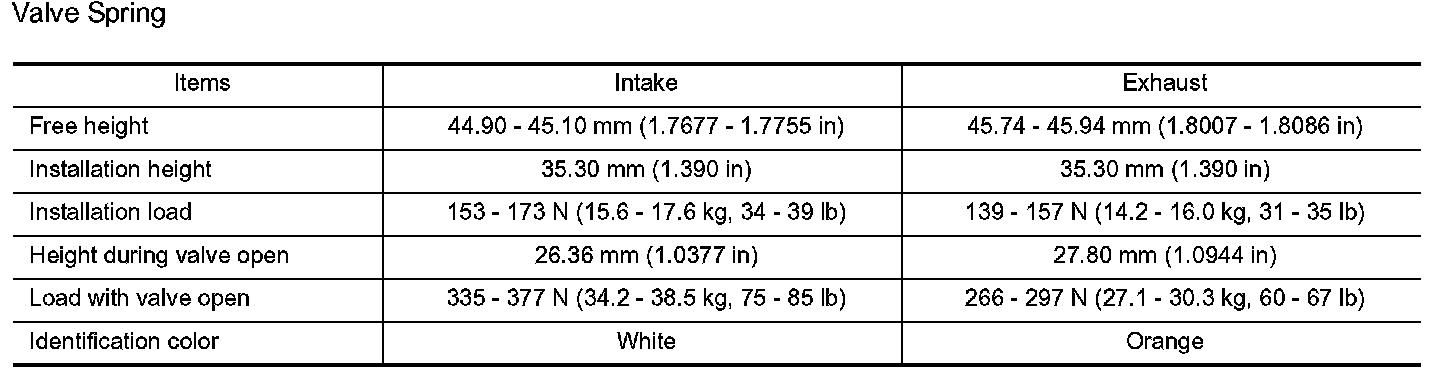

Valve Spring

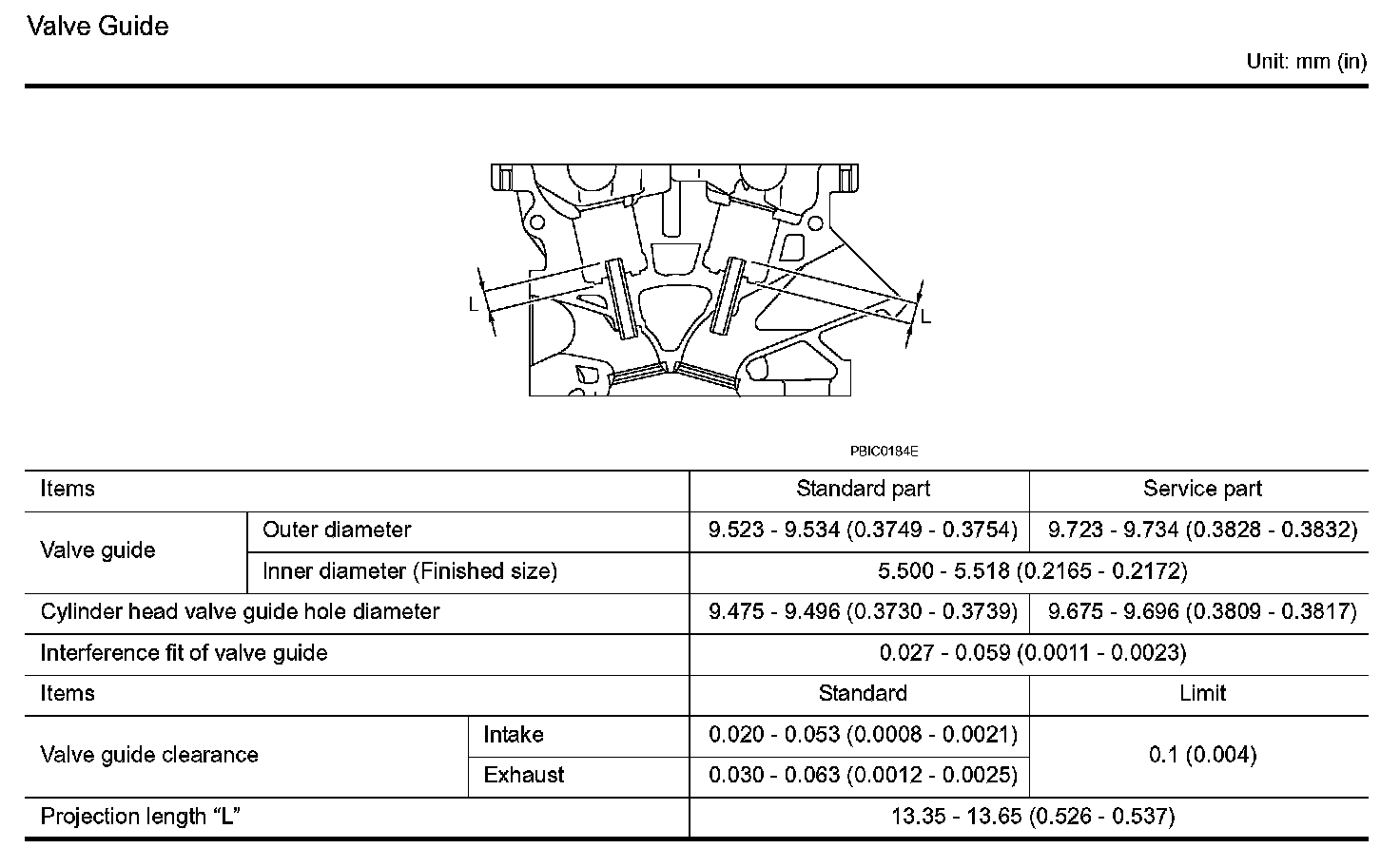

Valve Guide

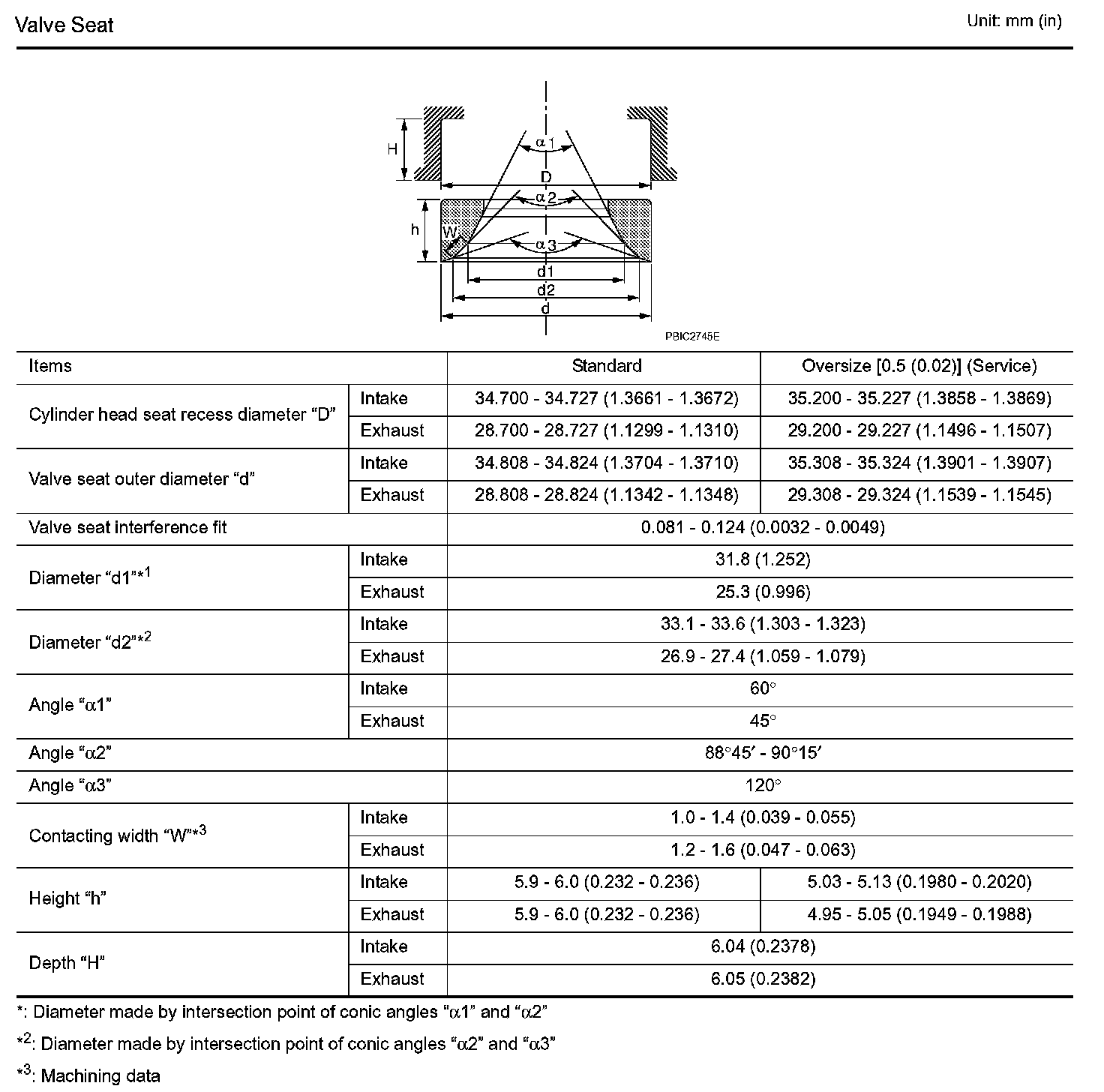

Valve Seat

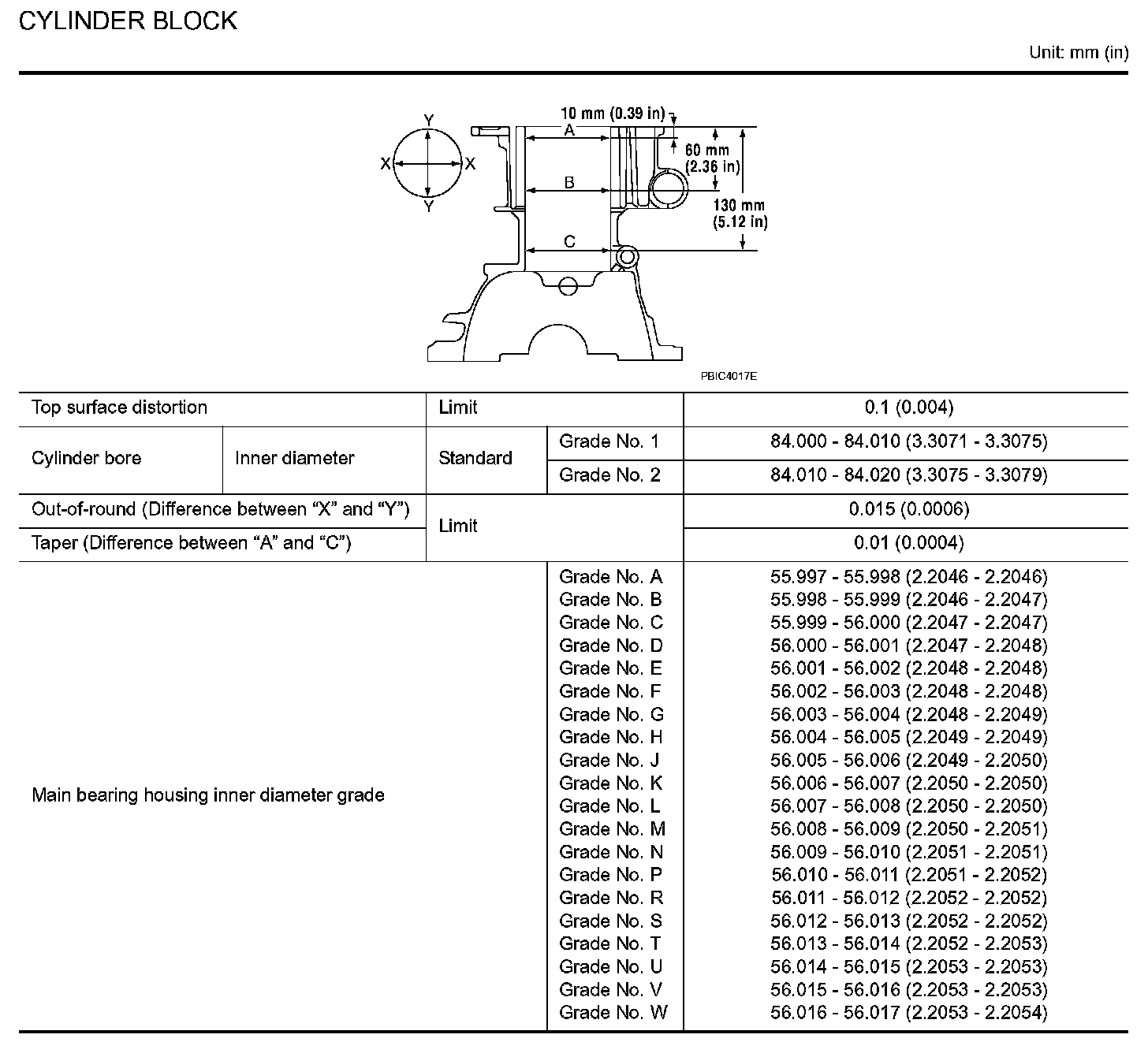

CYLINDER BLOCK

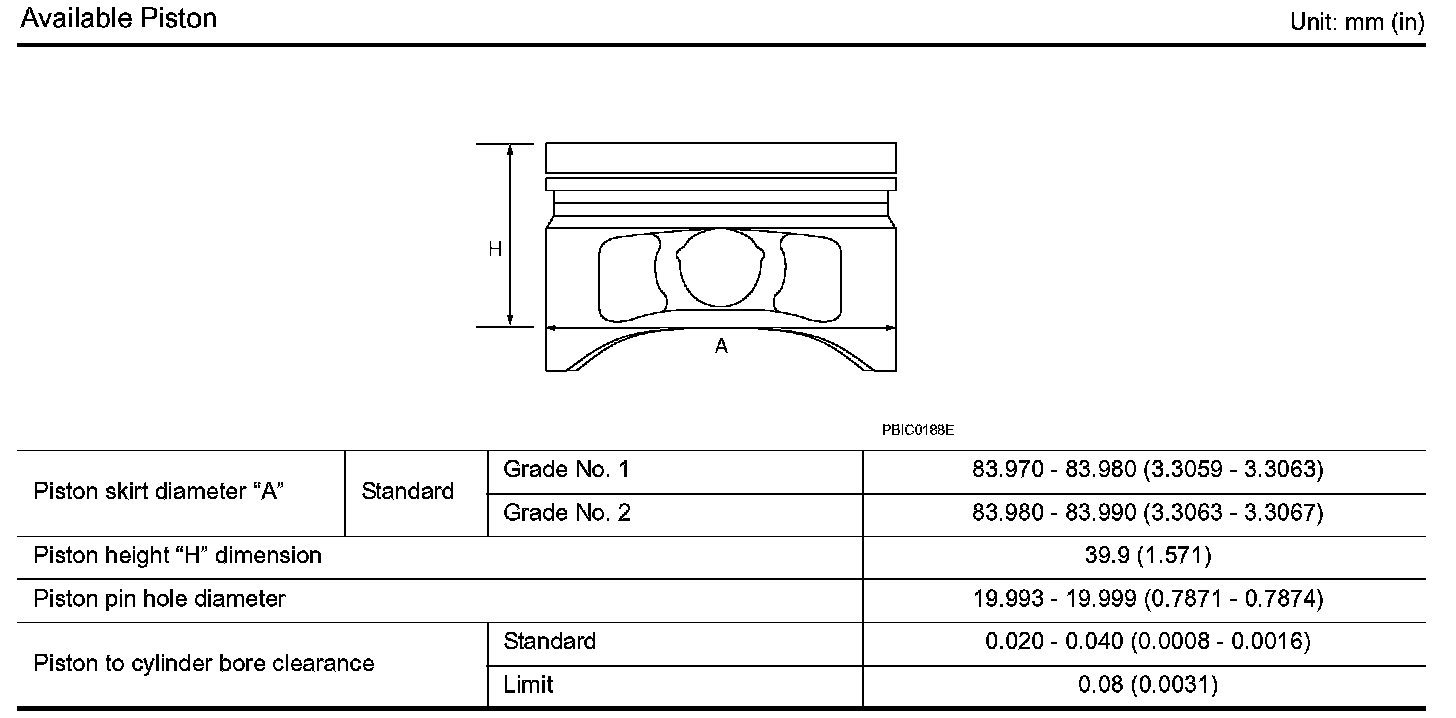

Available Piston

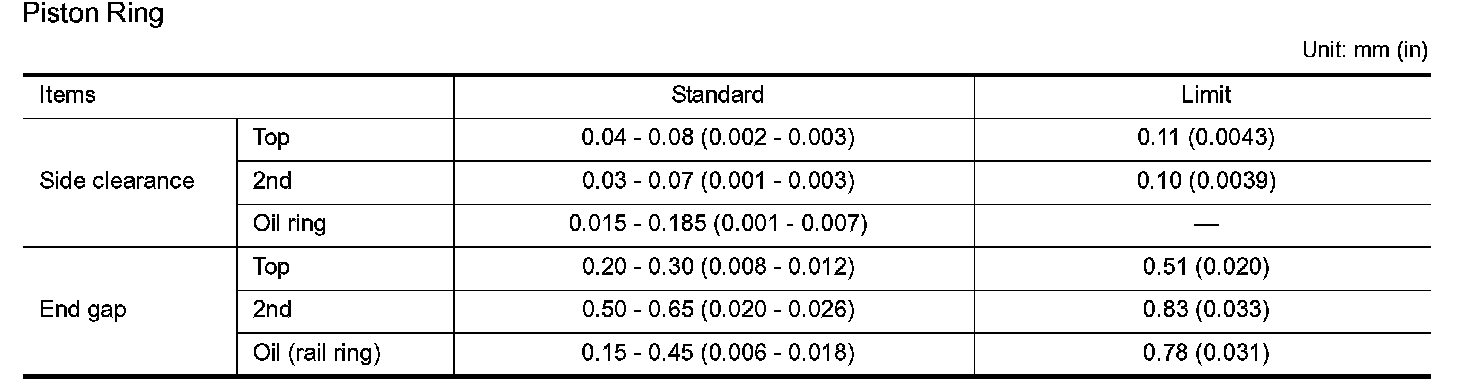

Piston Ring

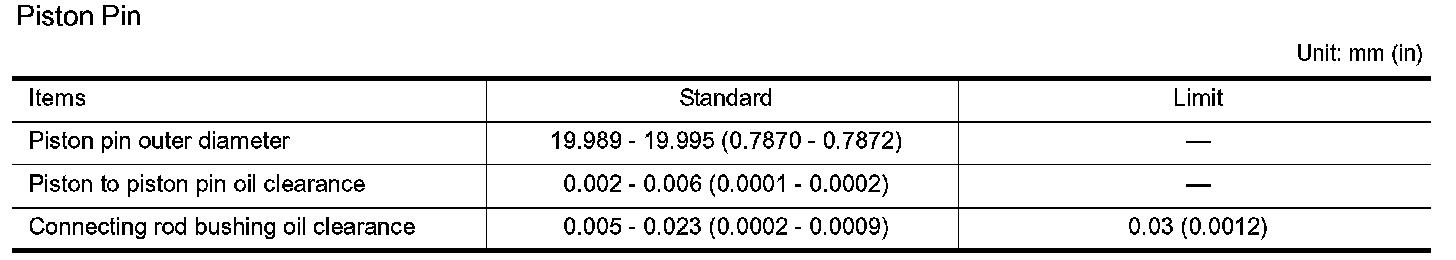

Piston Pin

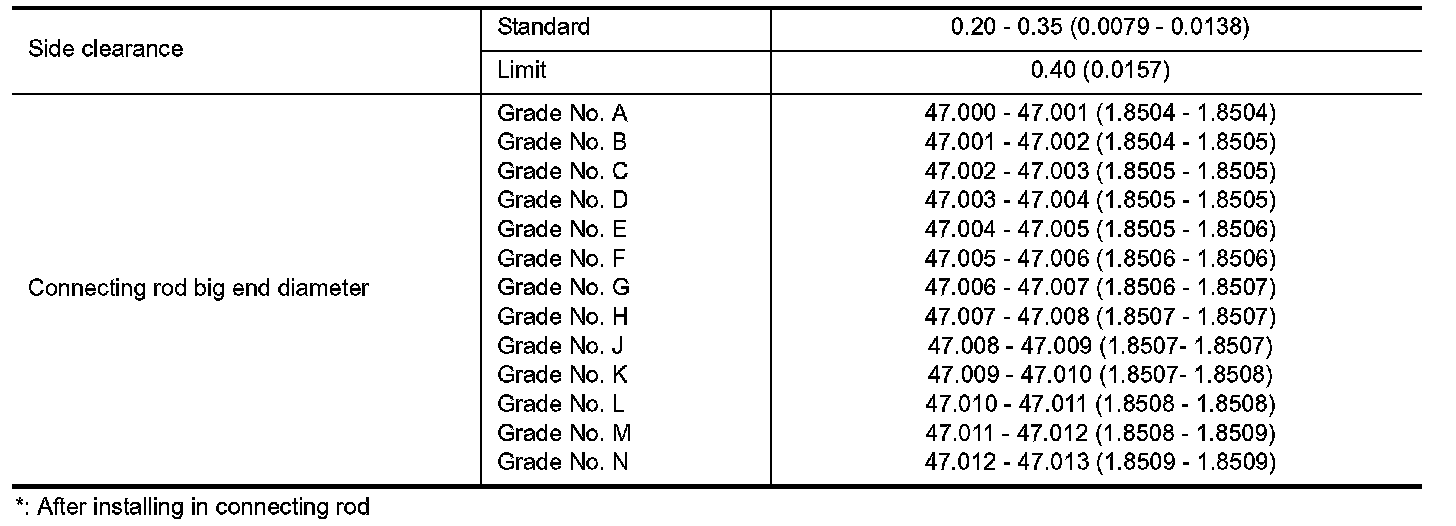

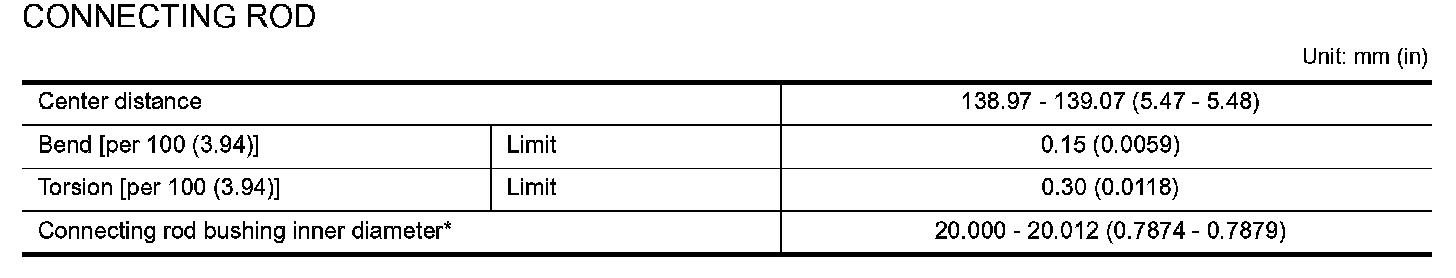

CONNECTING ROD

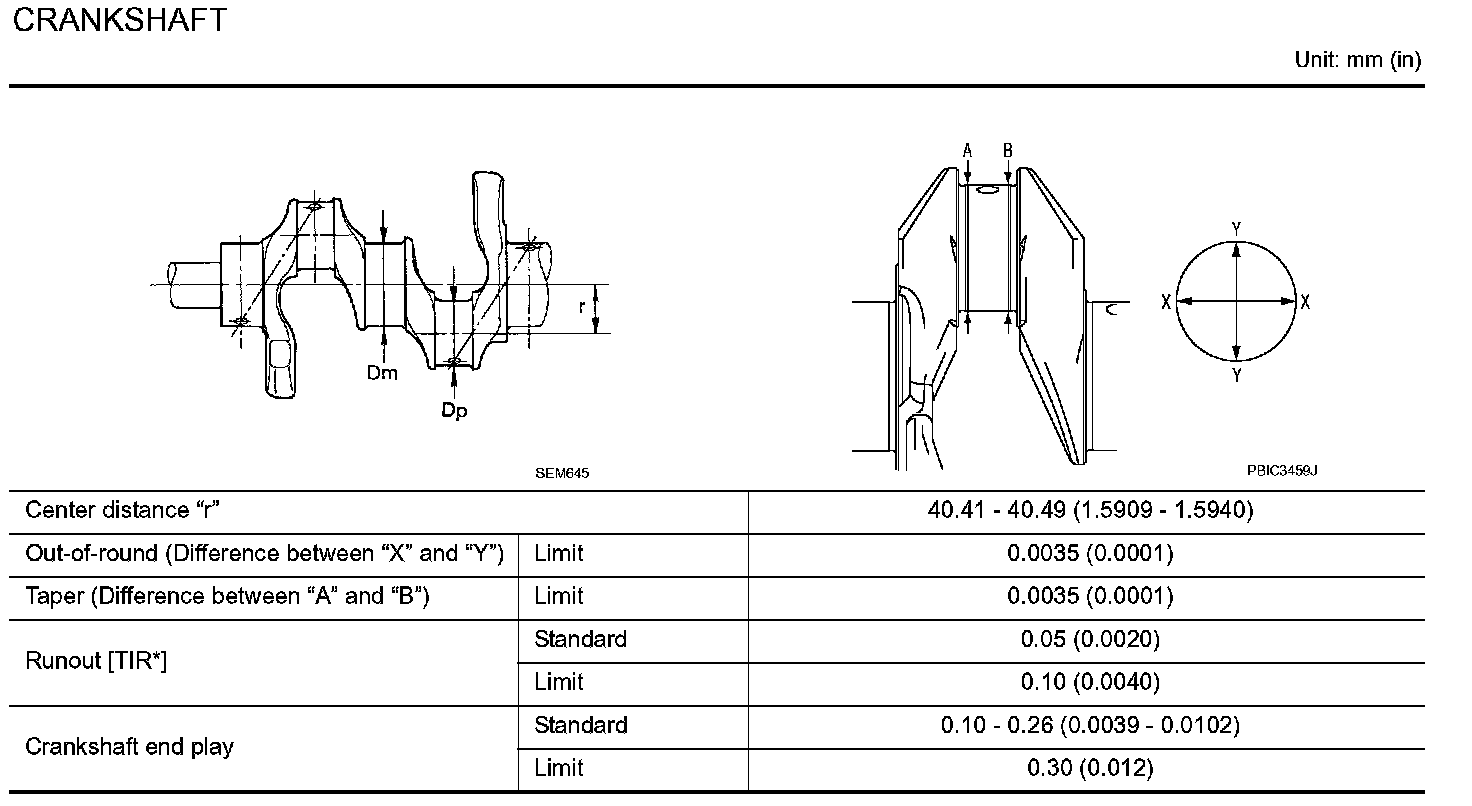

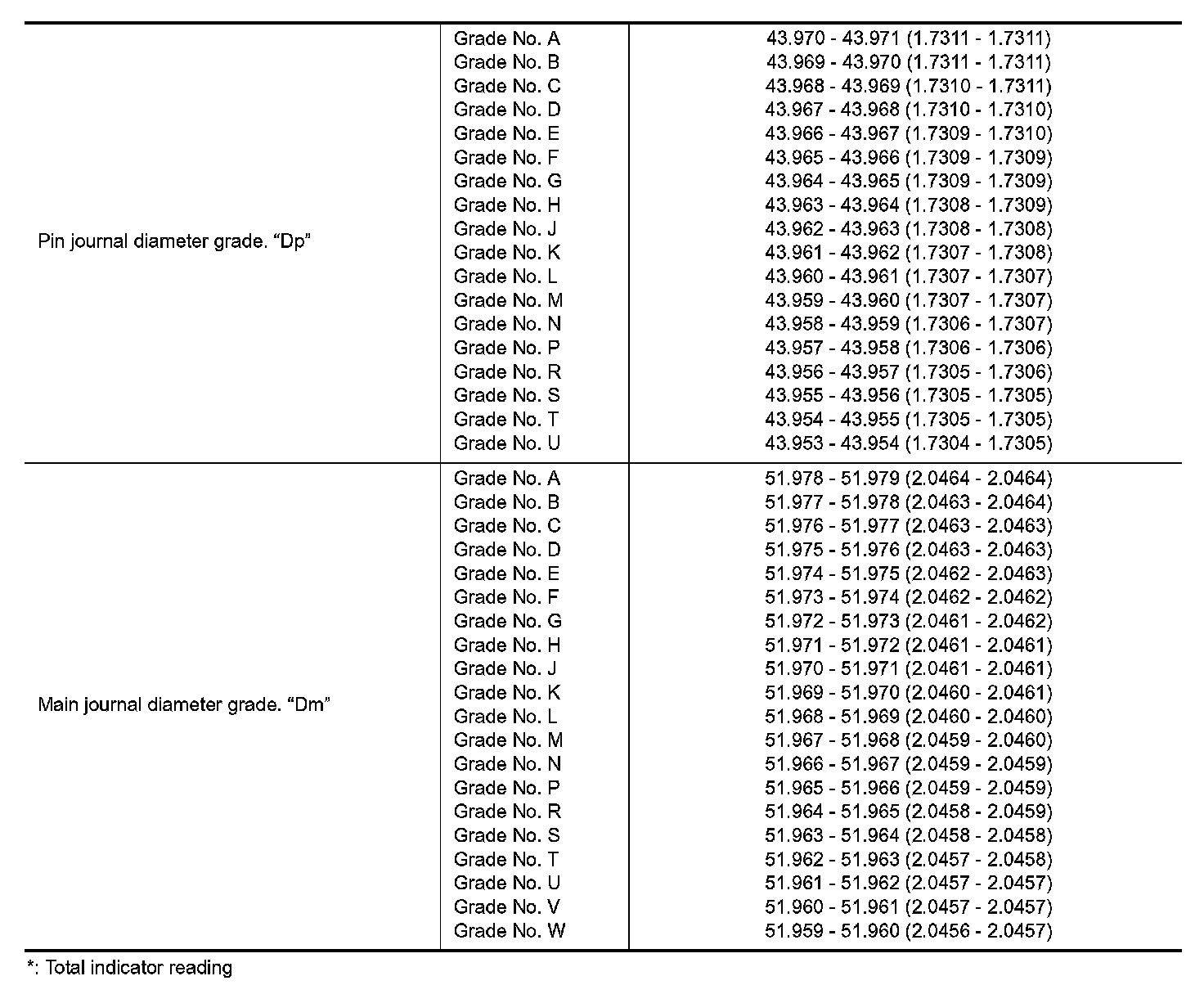

CRANKSHAFT

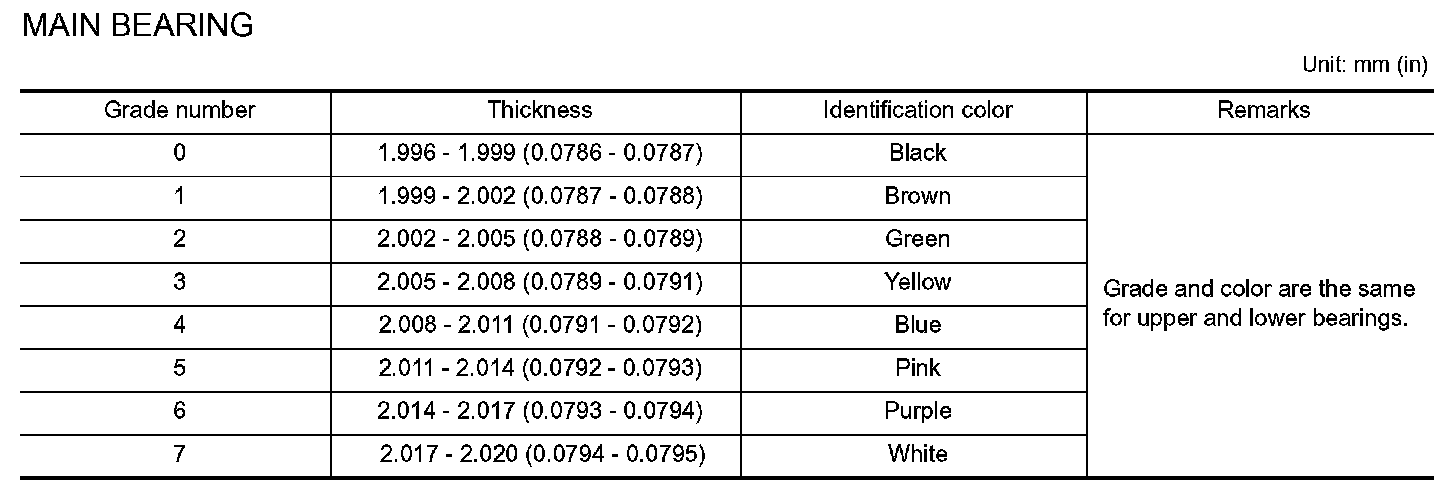

MAIN BEARING

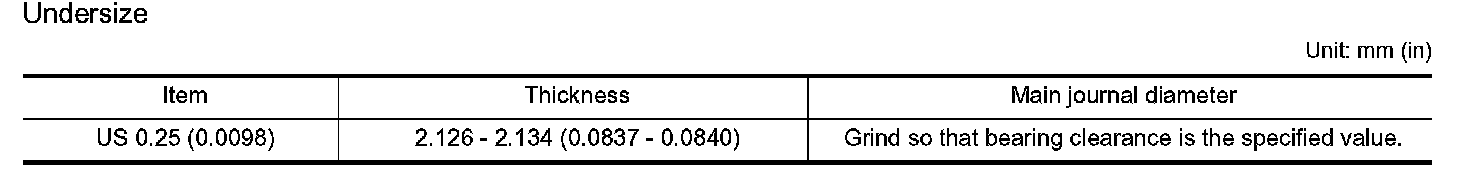

Undersize

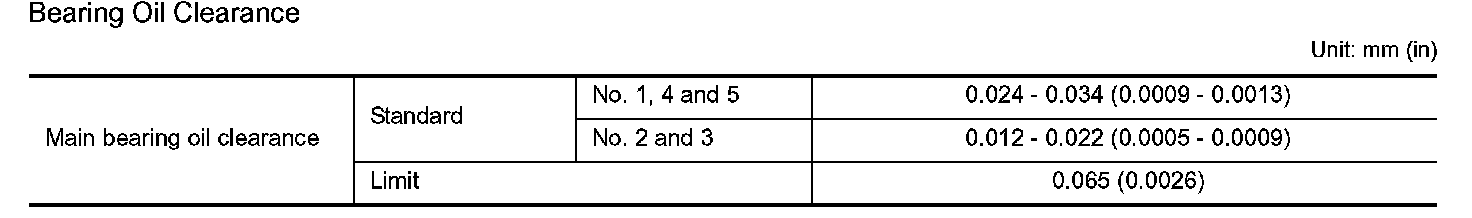

Bearing Oil Clearance

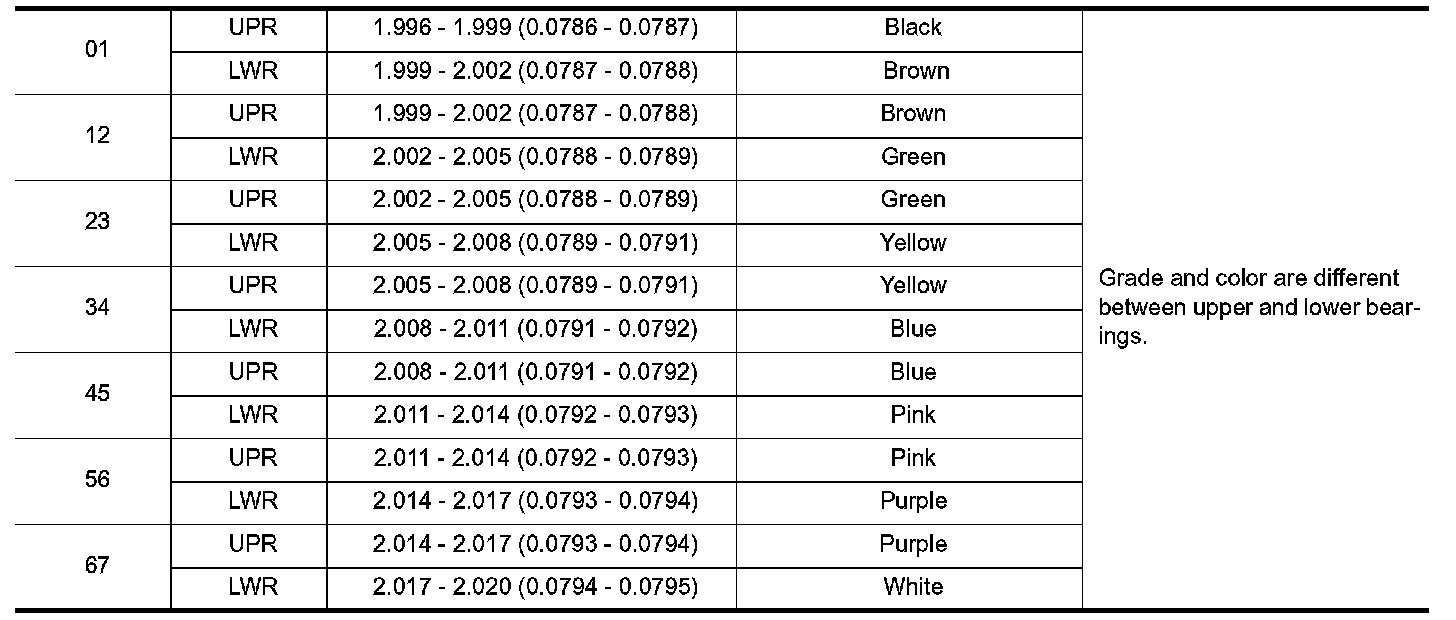

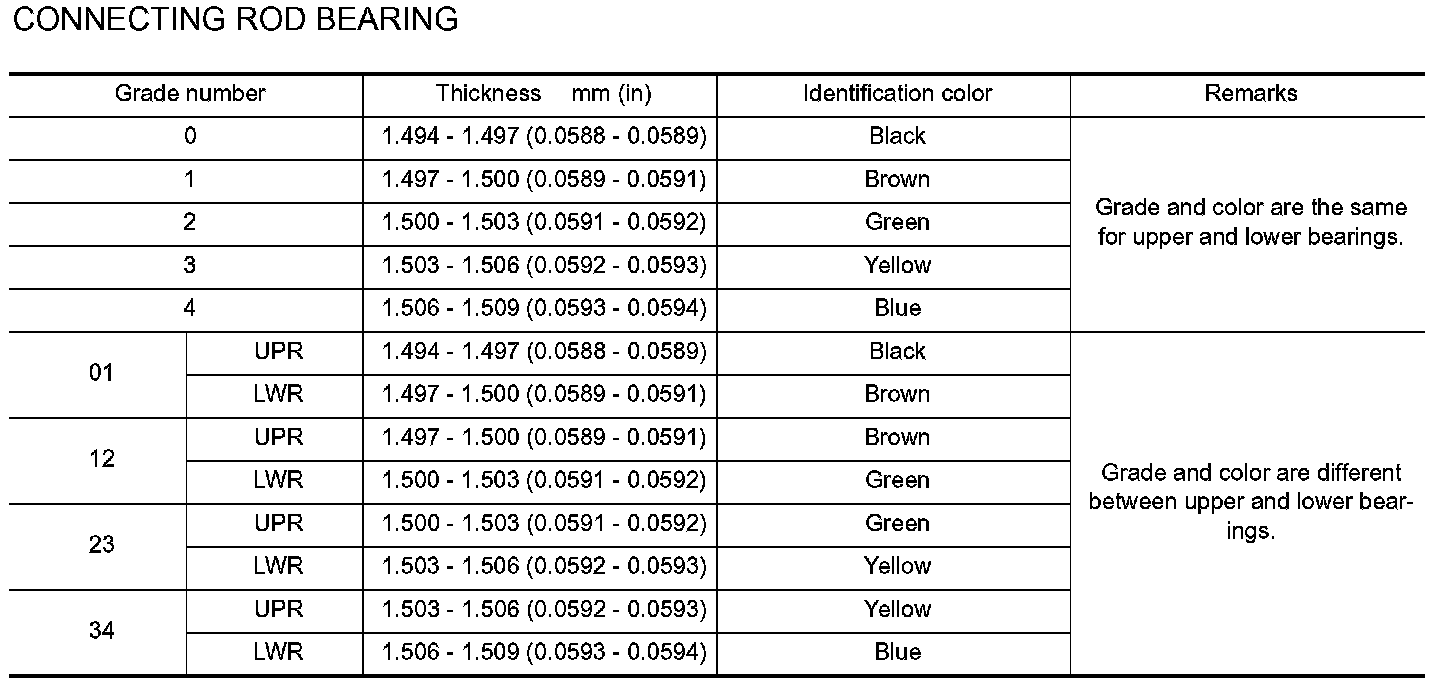

CONNECTING ROD BEARING






Undersize

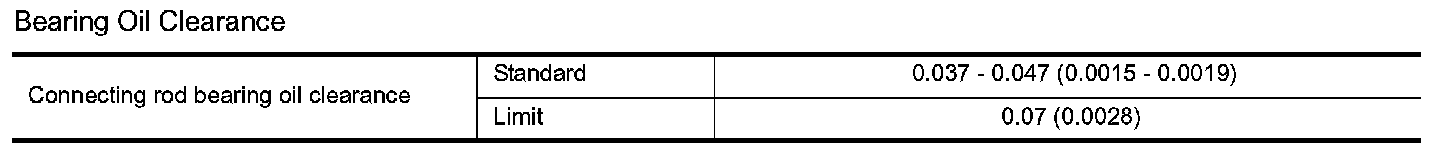

Bearing Oil Clearance







Main Bearing Cap





Tighten main bearing cap bolts in two steps.

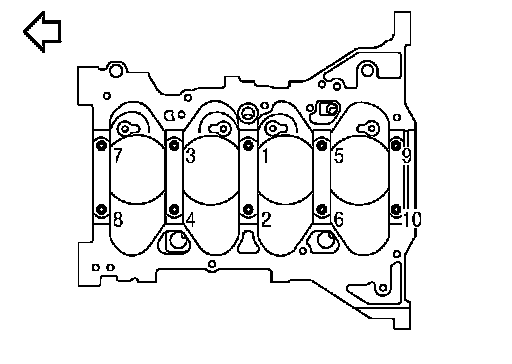

NOTE: Tighten main bearing cap bolts in numerical order as shown:

Arrow Indicates Engine Front






Crankshaft Pulley

Tighten crankshaft pulley bolt in three steps.
