Torque and Sequence
Clutch Disc and Clutch CoverTorque
First Step: 15 N.m (1.5 Kg-m, 11 ft-lb)
Final Step: 25 N.m (2.6 Kg-m, 19 ft-lb)

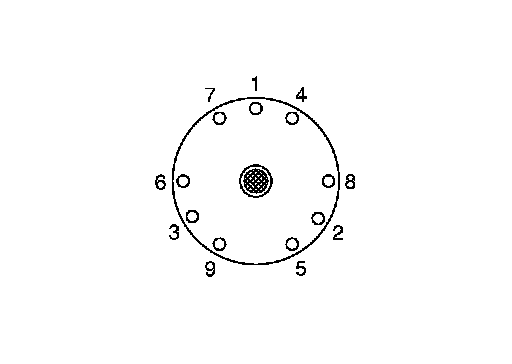

Tighten clutch cover bolts to specified torque evenly in two steps in the order shown. Refer to Exploded View.
Torque
First Step: 15 N.m (1.5 Kg-m, 11 ft-lb)
Final Step: 25 N.m (2.6 Kg-m, 19 ft-lb)
Tighten clutch cover bolts to specified torque evenly in two steps in the order shown. Refer to Exploded View.
