SRS Operation Check





TROUBLE DIAGNOSIS


SRS Operation Check


DIAGNOSTIC PROCEDURE 1

Checking SRS Operation Using "AIR BAG" Warning Lamp -- User Mode

1. Turn the ignition switch from OFF to ON, and check that the air bag warning lamp blinks.

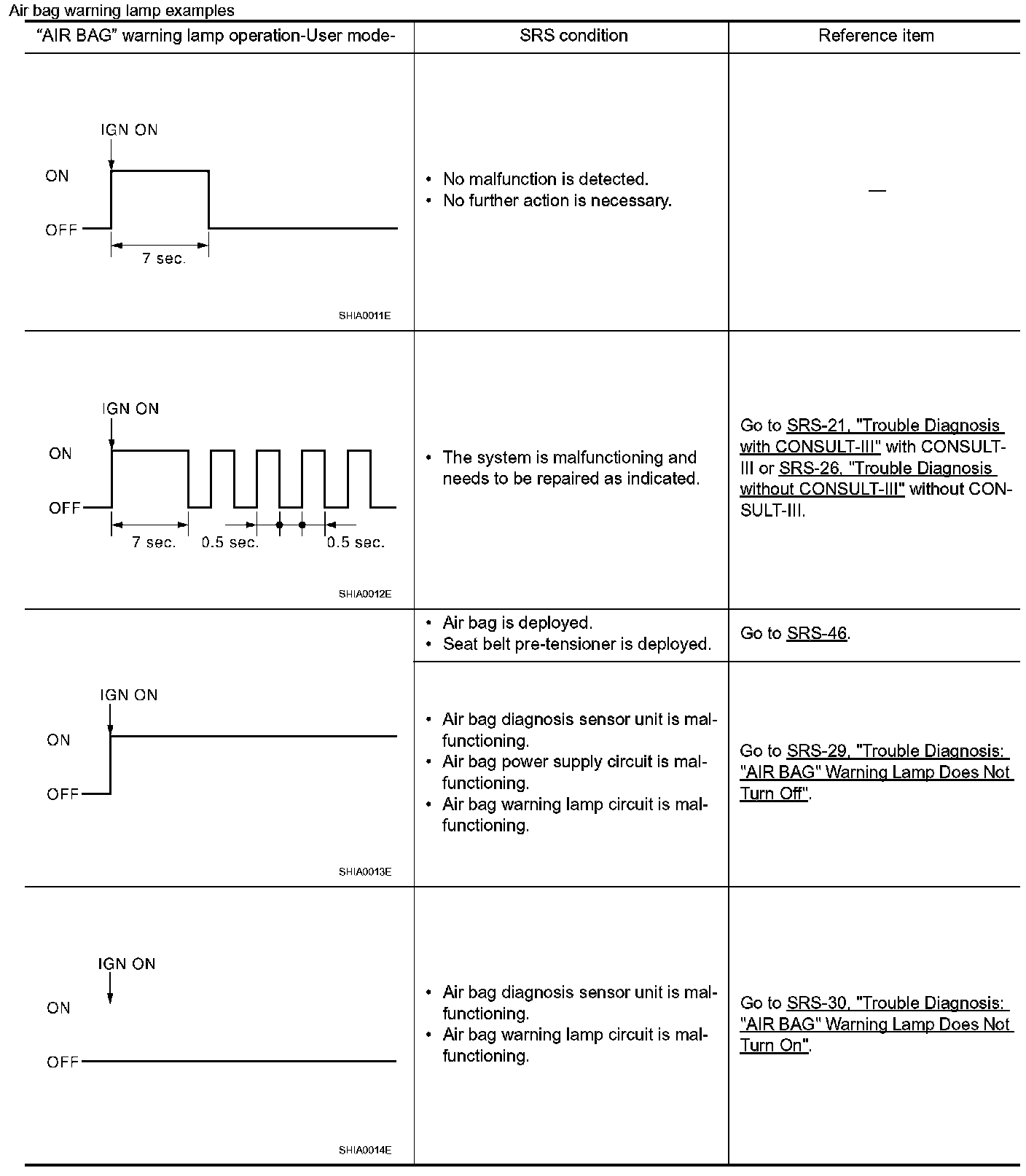

2. Compare the SRS air bag warning lamp blinking pattern with the examples.
