TCM Input/Output Signal Reference Value

TROUBLE DIAGNOSIS

TCM Input/Output Signal Reference Value

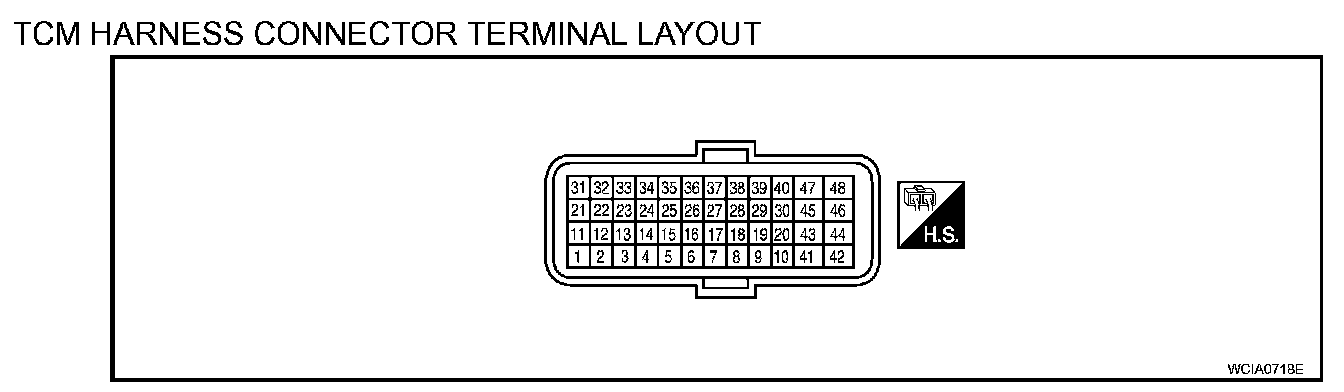

TCM HARNESS CONNECTOR TERMINAL LAYOUT

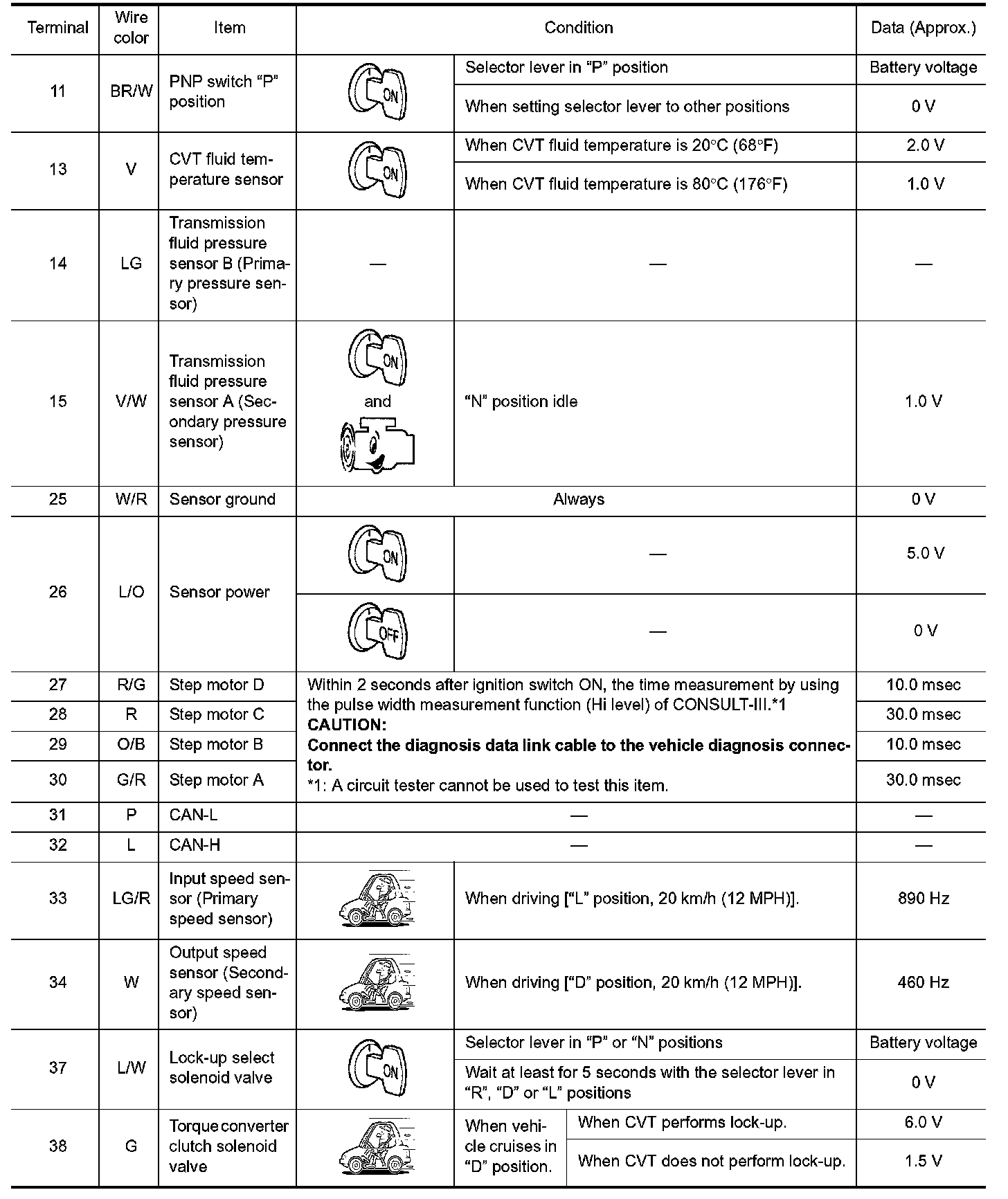

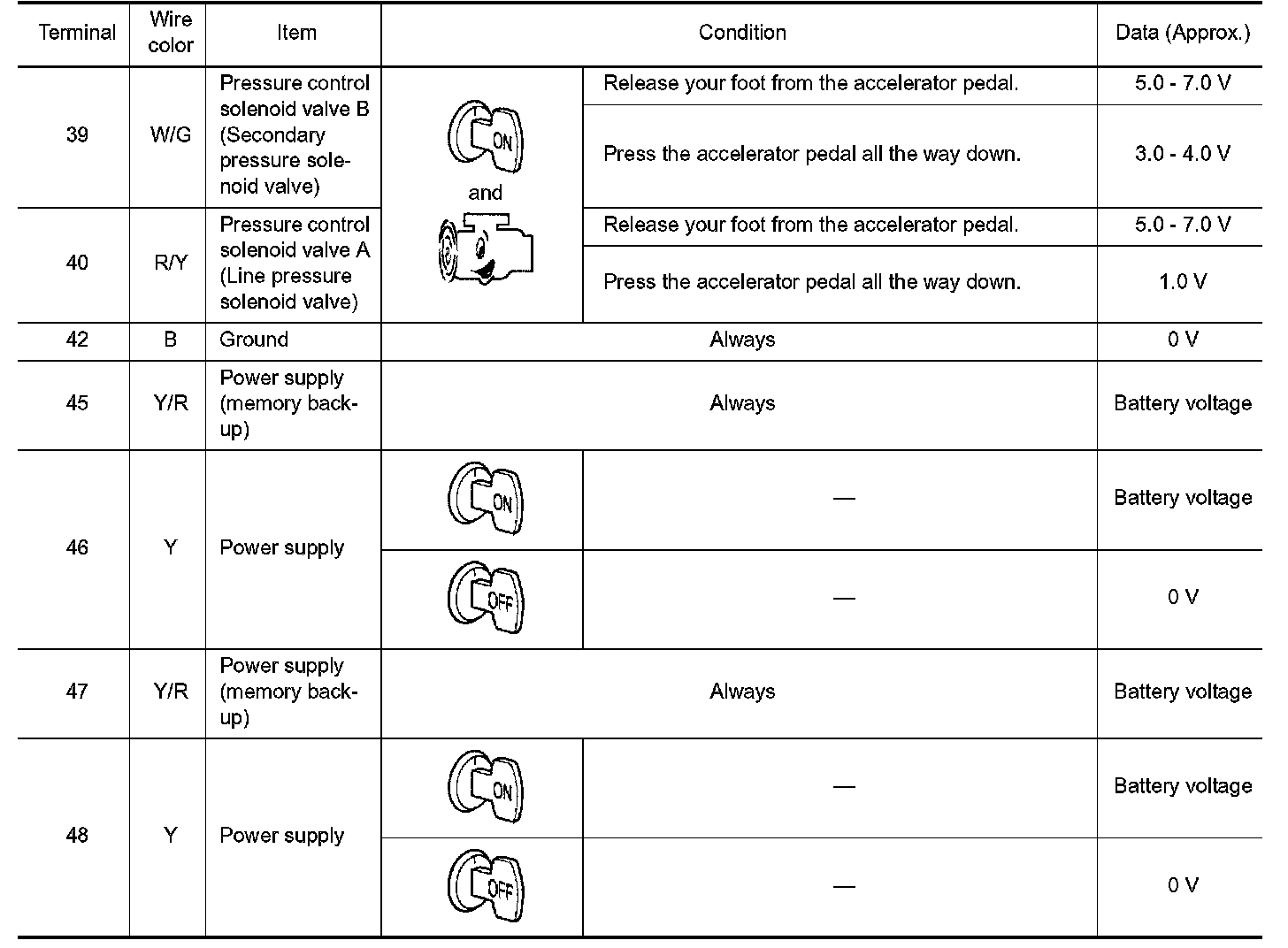

TERMINALS AND REFERENCE VALUES FOR TCM
