Vehicle Speed When Shifting Gears





TROUBLE DIAGNOSIS

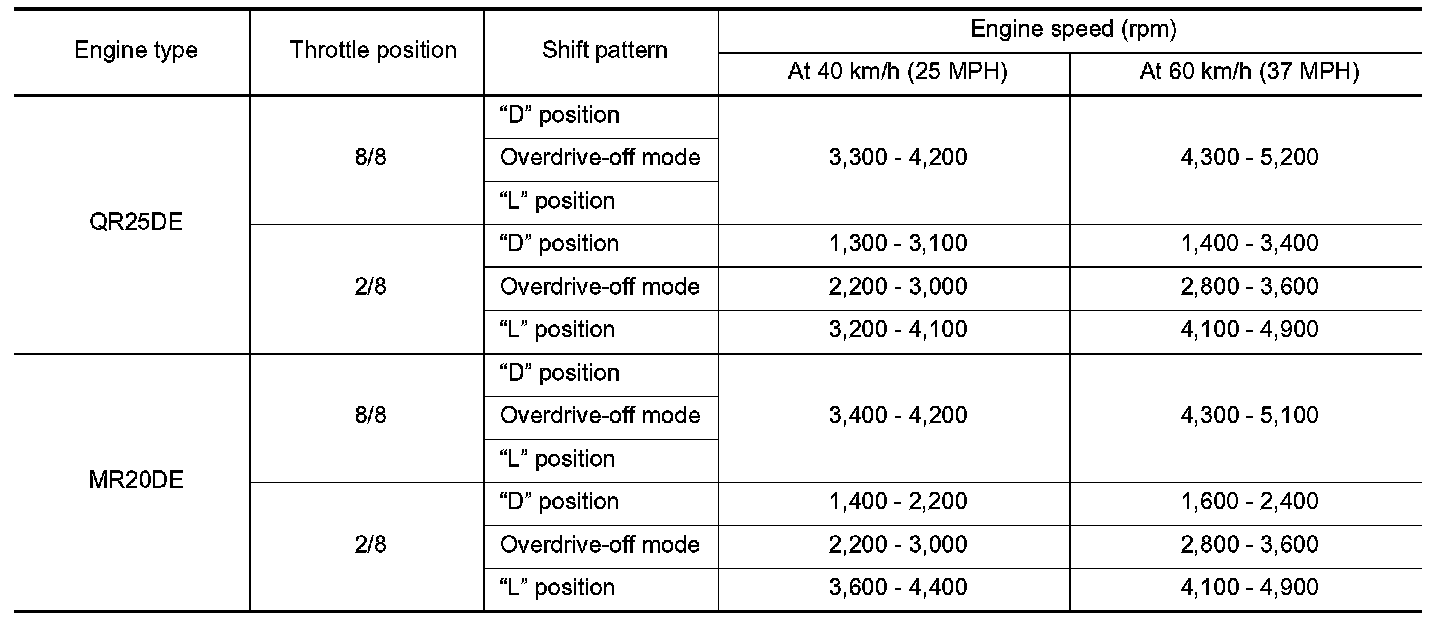

Vehicle Speed When Shifting Gears

Numerical value data are reference values.





CAUTION: Lock-up clutch is engaged when vehicle speed is approximately 18 km/h (11 MPH) to 90 km/h (56 MPH).
