Road Test

TROUBLE DIAGNOSIS


Road Test


DESCRIPTION
- The purpose of the test is to determine overall performance of CVT and analyze causes of problems.

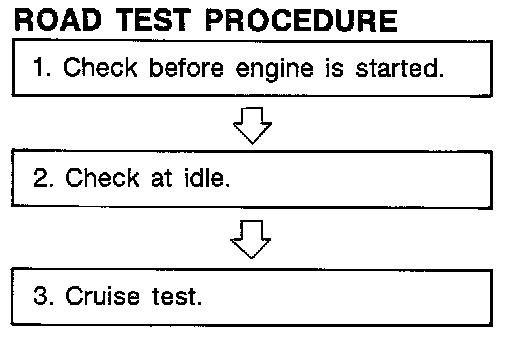

- The road test consists of the following three parts:
1. "Check Before Engine Is Started" Check Before Engine Is Started Check At Idle .
2. "Check at Idle" Check Before Engine Is Started Check At Idle .
3. "Cruise Test" Cruise Test .





- Before road test, familiarize yourself with all test procedures and items to check.
- Perform tests on all items until specified symptom is found. Troubleshoot items which check out No Good after road test.

CONSULT-III OPERATION PROCEDURE

CAUTION:
If CONSULT-III is used with no connection of CONSULT-III CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which performs CAN communication.
- Using CONSULT-III, perform a cruise test and record the result.
- Print the result and ensure that shifts and lock-ups take place as per Shift Schedule.
1. Touch "DATA MONITOR" on "SELECT DIAG MODE" screen.
2. Touch "MAIN SIGNALS" to set recording condition.
3. See "Numerical Display", "Barchart Display" or "Line Graph Display".
4. Touch "START".
5. When performing cruise test. Refer to Cruise Test .
6. After finishing cruise test part, touch "RECORD".
7. Touch "STORE".
8. Touch "BACK".
9. Touch "DISPLAY".
10. Touch "PRINT".
11. Check the monitor data printed out.
