Overdrive Control Switch





OVERDRIVE CONTROL SWITCH

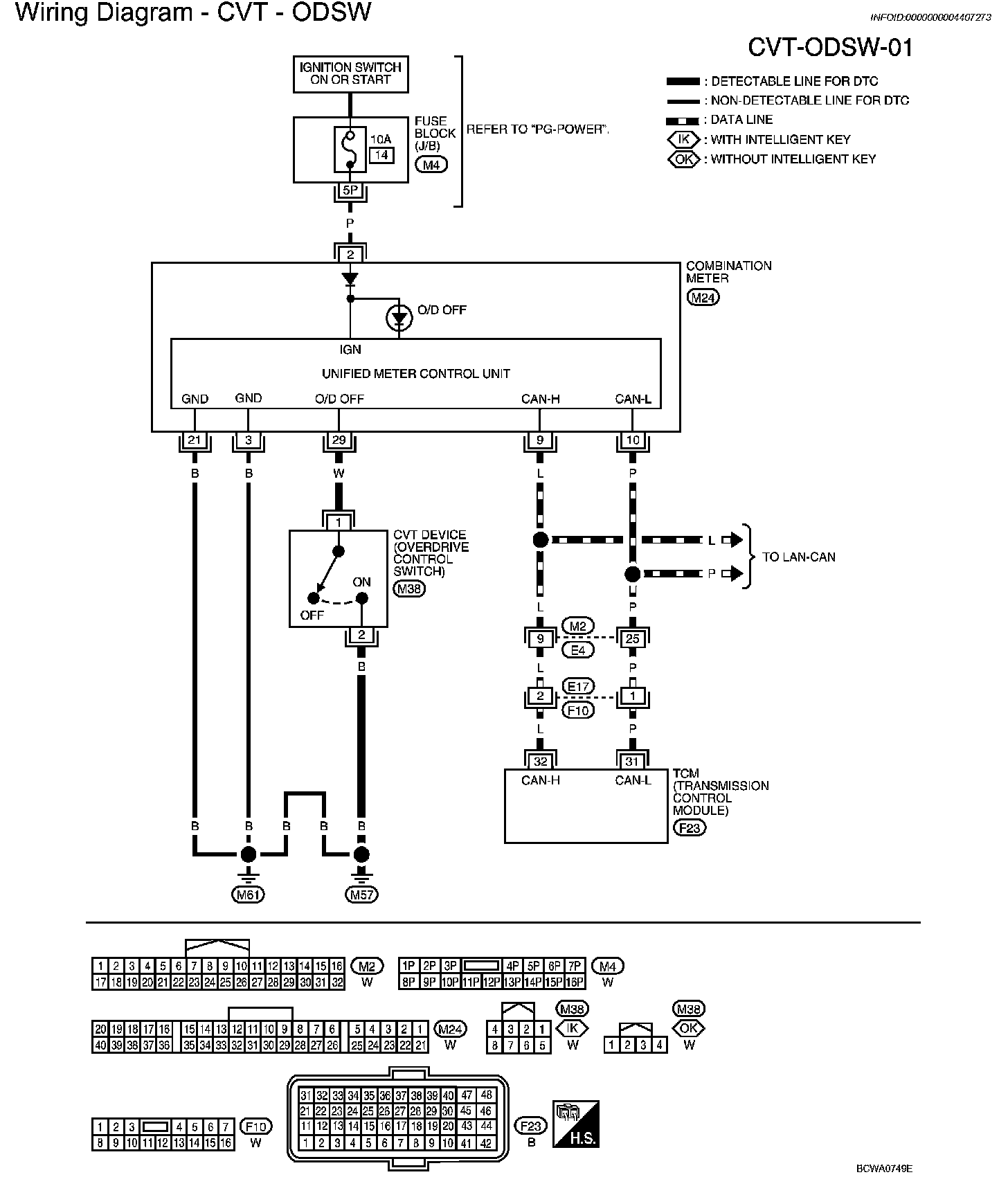

Wiring Diagram - CVT - ODSW


CVT-ODSW-01:






TCM TERMINALS AND REFERENCE VALUES
Refer to TCM Input/Output Signal Reference Value.
