CVT Shift Lock System
CVT Shift Lock System
CVT SHIFT LOCK SYSTEM

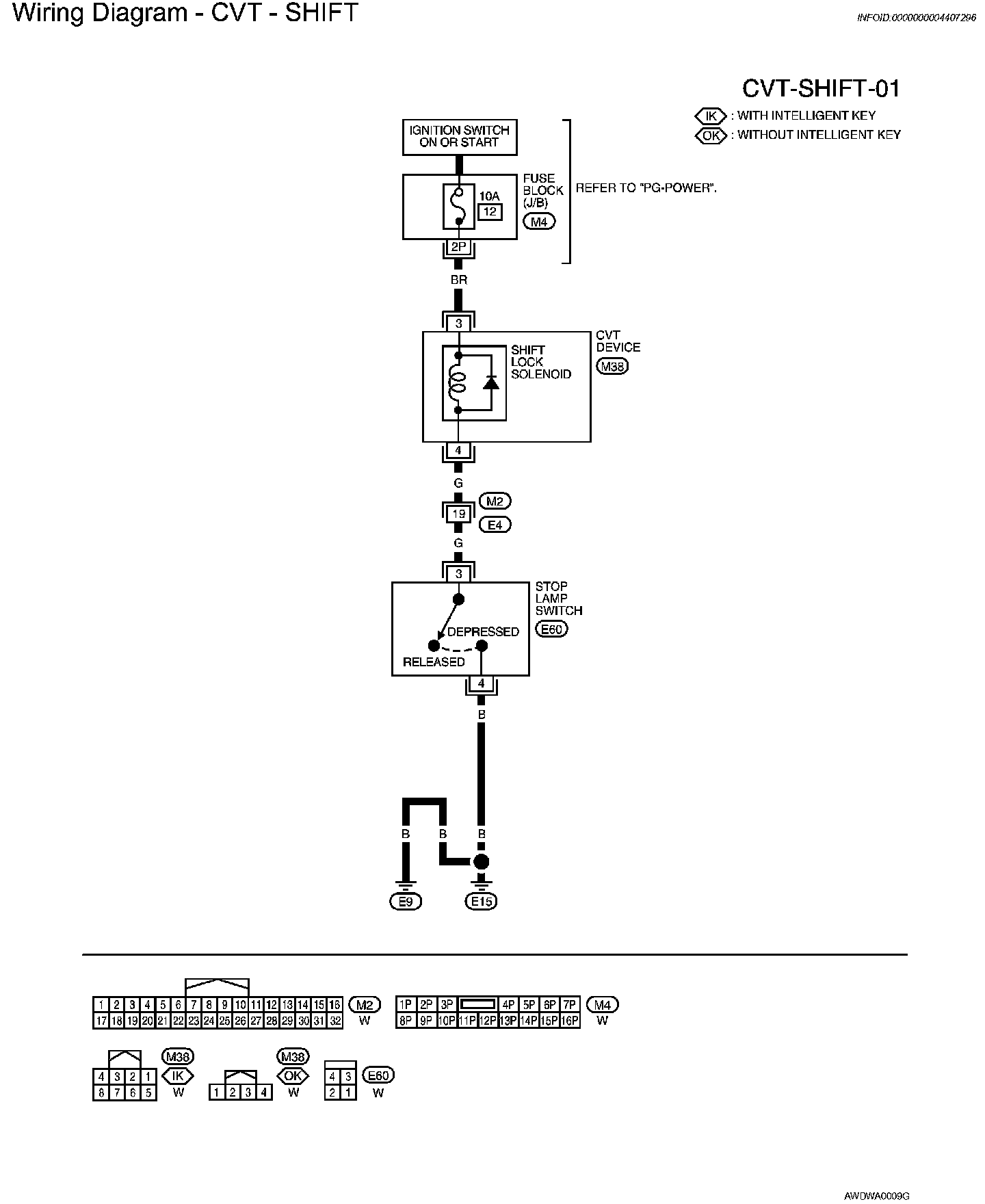

Wiring Diagram - CVT - SHIFT
CVT-SHIFT-01:
